Shaun - Toilet Paper Sheep [MINI compatible]

Intro

After i first saw this model i knew i had to have it in my bathroom!
Looks so awesome and its a nice eye catcher, because you look right at it when you enter the bathroom.

Regarding the design i was not 100% happy and limited by my MINI´s smaller build plate so i took some measurments, started up Fusion and did some redesign to little Shaun.

Leave some comments if you like it and have a good time printing!

Features / Things i changed:

• Body
  • Redesigned the body to be printed in four parts and glued together
  • Removed the back wall because i didn´t find it to be necessary
  • the Body itself is a bit thinner than the original to save some extra filament
• Legs / Feet
  • New feet design
  • Legs are made from reused plastic rods (outer 18 mm/ inner 15 mm) and can be pluged and/or glued into the feet and body
  • Legs can also be modeled in Prusa Slicer with a cylinder and be adapted to the hight you want
    • Diameter 18 mm / Length 130 mm
• Head
  • splitted the eyes from the body so it can be printed separately and then glued together
  • print file for the eyes has a color-swap after 5 layers to change from white to black filament

How i did it:

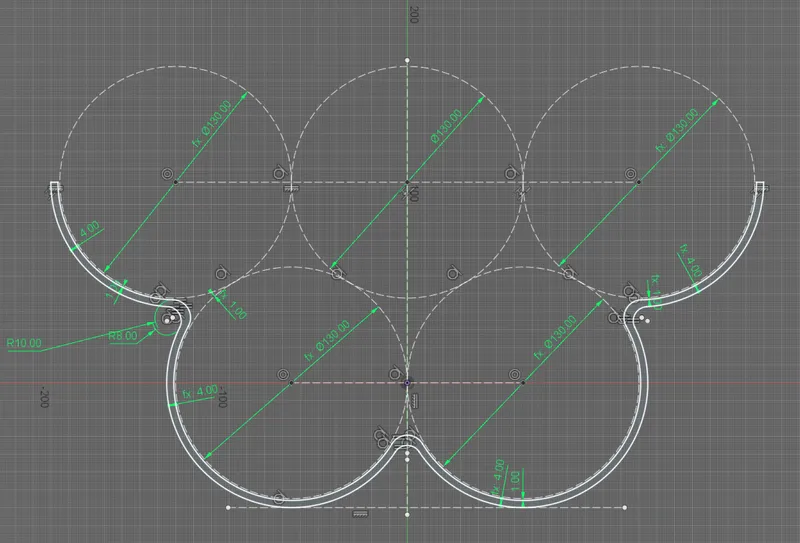

• Remodeled the sheeps body based on the measurements i took from some toilet paper rolls (Diameter 130 mm / Width 100 mm)

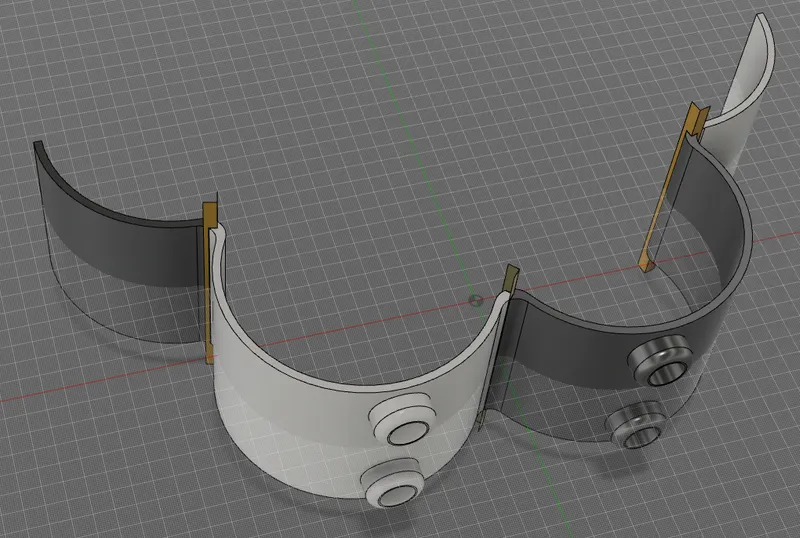

• Cutted the body with 90° profiles to make a nice corner for gluing

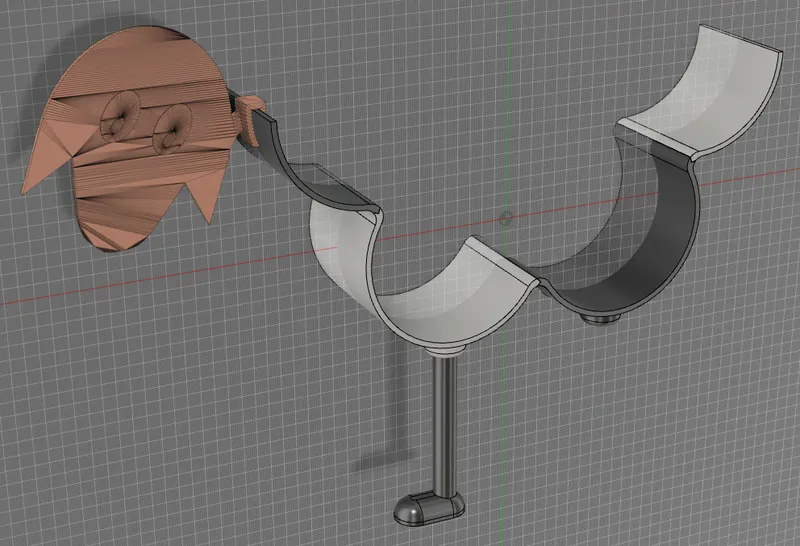

• designed new feet, integrated the legs and imported the head

Printing instructions:

• General:
  • PLA
  • 0,6 mm Nozzle
  • 0,3 mm Layer Hight
• Eyes, head, feet and legs (if you decide to print them) need no supports
• the Body is seperated in four parts and i recommend brim and supports for the mounting points of the legs
• the color swap on the eyes is done with the standard M600 command


Tools/Materials used:

• Fusion 360
• a good old caliper
• super glue (cyanoacrylate)
• Filament:
  • DAS FILAMENT - 1,75 mm PLA - matt black
  • DAS FILAMENT - 1,75 mm PLA - matt white
• plastic rod (Diameter 18 mm / Length 130 mm) (optional)
