Please note that this is still a work in progress, and changes to the design might occur, I haven't printed this case yet to verify the dimensions.
The bottom case will receibe changes in the upcoming revision, as test-print revealed that the back of the case interfered with the MCU
This project was inspired by TinyBoats Macro pad case* but was modified to ensure a tight fit for mx-style switches.
Features of this macropad:
Catching the reference? ;)
This macropad theoretically supports up to 16 layers, and is indicated by the 4 LEDs.
Basic math states that each LED have 2 states, on or off, and we have 4 of them, giving us 2^4.
And here is the logic-table for the LEDs and layers:
| A | B | C | D | Layer |
|---|---|---|---|-------|
| 0 | 0 | 0 | 0 | 1 |
| 0 | 0 | 0 | 1 | 2 |
| 0 | 0 | 1 | 0 | 3 |
| 0 | 0 | 1 | 1 | 4 |
| 0 | 1 | 0 | 0 | 5 |
| 0 | 1 | 0 | 1 | 6 |
| 0 | 1 | 1 | 0 | 7 |
| 0 | 1 | 1 | 1 | 8 |
| 1 | 0 | 0 | 0 | 9 |
| 1 | 0 | 0 | 1 | 10 |
| 1 | 0 | 1 | 0 | 11 |
| 1 | 0 | 1 | 1 | 12 |
| 1 | 1 | 0 | 0 | 13 |
| 1 | 1 | 0 | 1 | 14 |
| 1 | 1 | 1 | 0 | 15 |

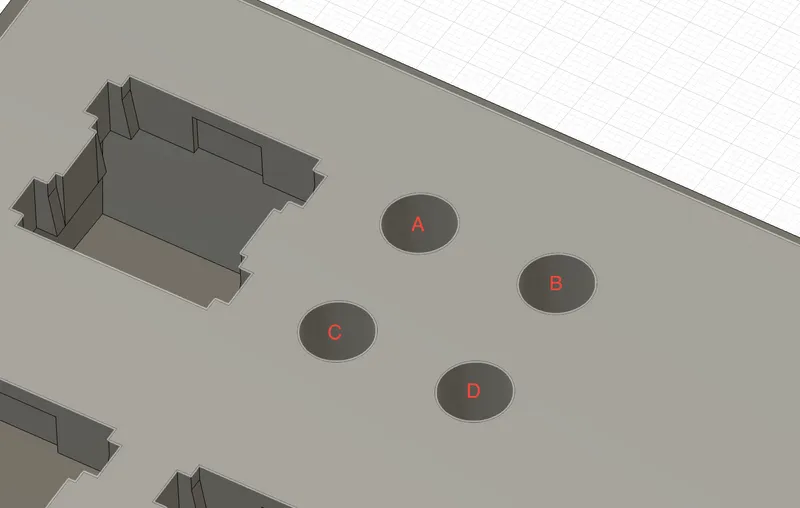

| 1 | 1 | 1 | 1 | 16 |Given the order of the LEDs as the following image shows

When printing the bottom-case, I have integrated supports for the USB-cutout that are 0.5mm thick, to prevent drooping of material.

This can easily be snipped of using side-cutters.
The dimension are all in mm (w*h*d)
Top-case: 75*12*100
Bottom-case: 75*10-17*100
Angled at 4 degrees
USB-cutout: 13*5*3.5
Distance between center of switches: 20mm
10 pcs mx-style switches
10 keycaps of your choice
4 pcs 5mm LED
1 pc Raspberry Pi Pico
1 fistfull of random cables that you've laying around
Future revisions and updates will be placed in folders under the version, each revision will be following semantic versioning, i.e v.1.x.y.
Each revision will have a changelog attached under files.
For the initial release, there is no changelog available under files other than the description and remix-changes provided.
The author remixed this model.
