Octagon Plant Saucer in Various Sizes

This Octagon Plant Saucer is a testament to the beauty of geometric design, combining functionality with a classic terracotta aesthetic. Its flat rim and meticulously crafted corners underscore the elegance of its octagon shape. The design features an interesting pattern of ribs at the bottom, enhancing not just its appearance but also its utility by promoting airflow to prevent stagnant moisture, crucial for plant health.

Update 2024-06-05: Added a showcase folder.

Complementing the Octagonal Flower Pot

Designed to perfectly complement the Octagonal Flower Pot, this saucer completes your gardening ensemble, bringing harmony and style to your plant displays.

Explore the Comprehensive PDF Catalog

Finding the perfect model amidst the large number of variants has never been easier! Take a look at the detailed PDF catalog in the "Other Files" section in the “Files” tab. This catalog provides a visual overview of all the models in this project, complete with dimensions, to help you quickly find exactly what you need.

But it's more than just a visual treat; the catalog includes organized tables that let you easily compare models based on specific parameters. Once you've spotted the model that meets your criteria, just search for its filename on the project page to easily download the right file.

Printing Recommendations

Suitable for a variety of 3D printers, this saucer accommodates nozzle sizes of 0.4mm, 0.6mm, and 0.8mm. For best results, follow these print recommendations:

Nozzle Size and Layer Height

The saucer is designed to print effectively with 0.4mm, 0.6mm, and 0.8mm nozzles, accommodating all wall thicknesses. Select a layer height appropriate for your nozzle size, and always review the sliced result before printing. Aim for the walls to be printed solely with perimeter lines, free of infill. For prints using a 0.4mm nozzle, consider increasing the number of perimeters to three or more for optimal results.

Choosing the Right Side Thickness

The models not only have different sizes, but also three side thicknesses. The side thickness also defines the thickness of the ribs, at the bottom of the saucer.

• S17 (1.68mm): The thinnest variant is best suited for rigid filament. It is ok for smaller saucers, but definitely too weak for saucers matching pots equal or greater than 200mm in height.
• S20 (2.0mm): The medium thickness gives more stability and works well for soft materials like PETG. A good compromise, for medium sized indoor saucers and pots.
• S25 (2.5mm): My recommendation. This thickness provides excellent structural support for the sides and ribs of the saucer, even for very large prints. These prints withstand harsh outdoor conditions and heavy pots.

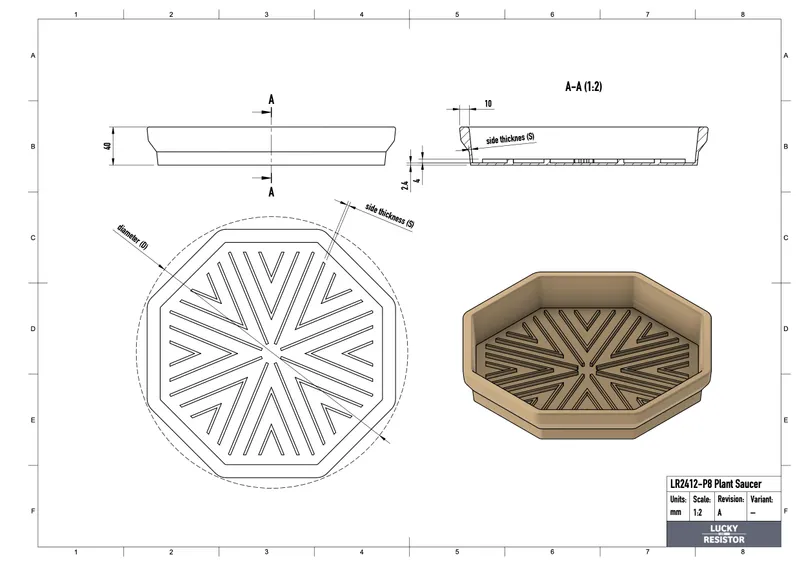

Dimensions

The saucer is available in various sizes, with the example filename LR2412-P8-S25-H040-D260.3mf indicating:

• P8 for an octagonal shape.
• S25 for a side thickness of 2.5mm.
• H040 for a height of 40mm.
• D260 for a diameter of 260mm.

Locating the Model Files

All model files can be found under the "Files" tab, organized into ZIP files by format for easy access. Choose from STL, 3MF, or STEP files based on your preference.

In the Store: Fusion 360 Design

I sell the Fusion 360 design for this and other plant saucers in the Printables store. By buying this design, you are supporting future designs and make all the free downloadable content possible.

Printables Store: Flower Pots - Fusion 360 Designs

Explore More from Meti·kumi

Interested in my designs? Browse through my collection of 3D models:

👉 https://metikumi.com/3d-models/

Stay connected on social media for the latest updates and work-in-progress insights:

👉 https://metikumi.com

Conclusion

The Octagon Plant Saucer not only enhances the beauty of your potted plants but also ensures their health by preventing moisture buildup. When paired with the matching Octagonal Flower Pot, it creates a stunning display that is sure to impress. I look forward to seeing your prints and hearing your feedback.

Happy printing!
