Heptagon Plant Saucer in Various Sizes

Introducing our Heptagon Plant Saucer, a perfect blend of functionality and geometric elegance. Crafted with a classic terracotta style and a flat rim, it offers perfect geometries at every corner. The bottom features an intricate pattern of ribs, designed not just for their visual appeal but also to facilitate airflow, thereby preventing stagnant moisture and ensuring the health of your plants.

Update 2024-06-05: Added a showcase folder.

Pair With the Perfect Pot

This saucer is designed to complement the Heptagon Flower Pot, allowing for a harmonious aesthetic in your garden or indoor space.

Explore the Comprehensive PDF Catalog

Finding the perfect model amidst the large number of variants has never been easier! Take a look at the detailed PDF catalog in the "Other Files" section in the “Files” tab. This catalog provides a visual overview of all the models in this project, complete with dimensions, to help you quickly find exactly what you need.

But it's more than just a visual treat; the catalog includes organized tables that let you easily compare models based on specific parameters. Once you've spotted the model that meets your criteria, just search for its filename on the project page to easily download the right file.

Printing Recommendations

This model is compatible with various printer setups, accommodating nozzle sizes of 0.4mm, 0.6mm, and 0.8mm. Here are my print recommendations:

Nozzle Size and Layer Height

The saucer is designed to print effectively with 0.4mm, 0.6mm, and 0.8mm nozzles, accommodating all wall thicknesses. Select a layer height appropriate for your nozzle size, and always review the sliced result before printing. Aim for the walls to be printed solely with perimeter lines, free of infill. For prints using a 0.4mm nozzle, consider increasing the number of perimeters to three or more for optimal results.

Choosing the Right Side Thickness

The models not only have different sizes, but also three side thicknesses. The side thickness also defines the thickness of the ribs, at the bottom of the saucer.

• S17 (1.68mm): The thinnest variant is best suited for rigid filament. It is ok for smaller saucers, but definitely too weak for saucers matching pots equal or greater than 200mm in height.
• S20 (2.0mm): The medium thickness gives more stability and works well for soft materials like PETG. A good compromise, for medium sized indoor saucers and pots.
• S25 (2.5mm): My recommendation. This thickness provides excellent structural support for the sides and ribs of the saucer, even for very large prints. These prints withstand harsh outdoor conditions and heavy pots.

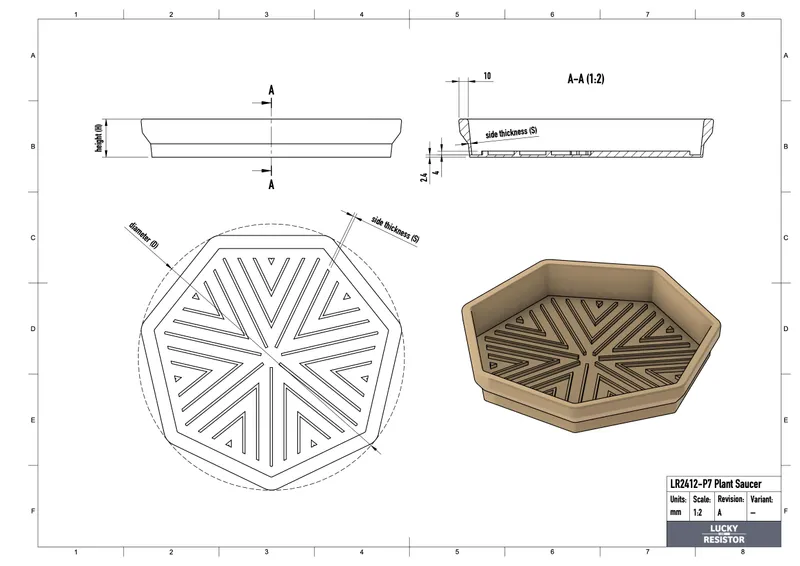

Dimensions

The Heptagon Plant Saucers are available in a variety of sizes to suit different plant pot dimensions. An example filename like LR2412-P7-S25-H040-D260.3mf decodes as follows:

• P7 signifies the saucer is designed with seven sides, forming a heptagon.
• S25 denotes a side and rib thickness of 2.5mm.
• H040 represents the height of the saucer at 40mm.
• D260 refers to the saucer's diameter, measuring 260mm. The diameter is measured at the tips of the geometric shape.

Locating the Model Files

All necessary 3D models are available under the "Files" tab, organized into ZIP files by file format for your convenience. Select from STL, 3MF, or STEP files according to your printing needs.

In the Store: Fusion 360 Design

I sell the Fusion 360 design for this and other plant saucers in the Printables store. By buying this design, you are supporting future designs and make all the free downloadable content possible.

Printables Store: Flower Pots - Fusion 360 Designs

Explore More from Meti·kumi

Interested in my designs? Browse through my collection of 3D models:

👉 https://metikumi.com/3d-models/

Stay connected on social media for the latest updates and work-in-progress insights:

👉 https://metikumi.com

Conclusion

The Heptagon Plant Saucer is more than just a base for your plants; it's a statement piece designed to elevate the look of your greenery with its unique shape and functional design. Paired with the matching Heptagon Flower Pot, it promises to be a focal point in any garden or home.

Happy printing!
