Do you have STEP files?
I hade idea to attach an extra fan for the nvme drive
Raspberry Pi 5 + Pimoroni NVME Base Case
A remix of pyrho's Pi 5 case with support for the Pimoroni NVME Base added
+ Now with support for NVMe Base Duo
206
2203
31
11 k
updated
March 30, 2025
Makes
Comments
@Varazir_262682 Sorry, I do not provide any CAD-files (this includes STEP files).
@LUC4R4T0R okay, fair. I feel that the nvme drive will go to warm. It need some ventilation on the side in the bottom as well.

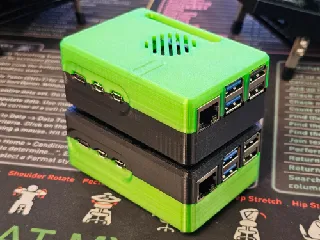

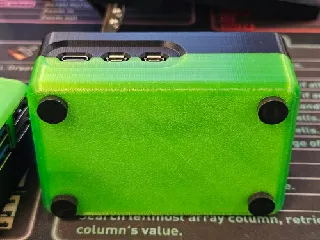

So nice I had to print more than one! Also works great with 3/8" self-adhesive bumper pads. Printed in Isanghu fluorescent green PETG and Elegoo black PETG with a .2mm nozzle because I'm too lazy to swap nozzles.
The top and duo bottom fits great with my 52Pi N21 Dual 2280 NVMe base and Raspberry Pi 5: https://52pi.com/products/n21-dual-2280-nvme-base-for-raspberry-pi-5
Thanks!

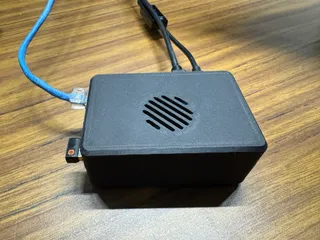

Works well with a tight fit. Snaps together well.
Would suggest that the hole for the reset button be made a little larger or allow for a protruding button.
Nice model! The fit (of the internal boards) isn't entirely tight, otherwise it's perfect.

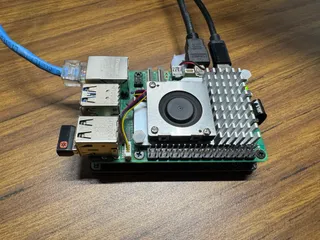

Using the open top for better airflow with the original cooler. Fits perfectly, thanks!
Such a great model! Printing was easy and the case fits perfectly while looking very sleek. Thermals are better than expected and seem to remain at around the same temperature as without the case. Thanks!
