Hose-Pipe Clamp (for dishwasher / washing machine) parametric

A clamp that secures connections between hoses and drain pipes (or other pipe/hose connections with ridges/lips).
1
18
0
290
updated February 2, 2024

Description

PDF

After my apartment got flooded I devised this simple clamp so it never happens again.
It can be adjusted for any small pipe or hose push-fitted connections using Oneshape:

https://cad.onshape.com/documents/6a32592e74d9d67c79d3431b/w/b7900b914d9b831f13bd6908/e/56d275d216338ff416d007f9?renderMode=0&uiState=65bce20b7188504e4c401dfa

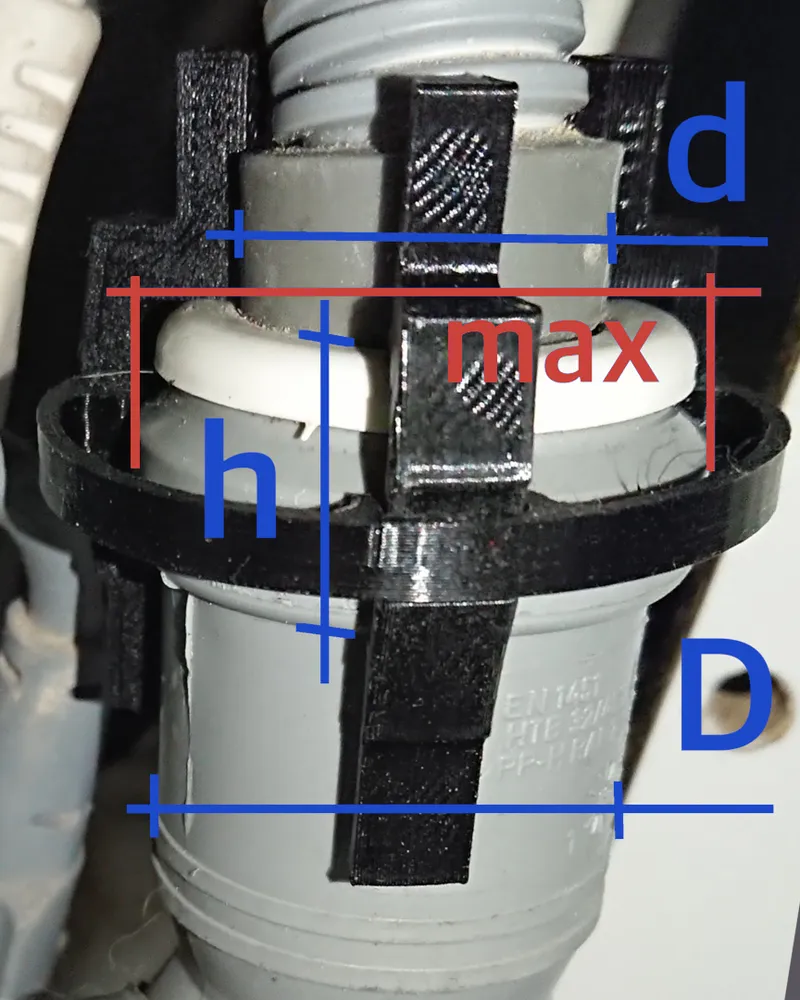

d - smaller diameter

D - bigger diameter

max - maximum diameter (of the ridge/lip)

h - summed height of the ridges/lips




Any print settings should do, it has quite lose tolerances. I printed with 0.2 layer, 150% speed. No supports required.

The attached model fitting:
d = 25mm
D = 36mm
h = 17mm
max = 42mm
