Multiboard "clamps" for mounting behind a Lenovo screen

Remixed Multiboard pieces in order to have a Multiboard on the back of my Lenovo screen
9
20
0
429
updated February 2, 2024

Description

PDF

== Aha moment ==
There's so much unused space behind my pc screen (Lenovo ThinkVision T24i-10) that I though it would be the best place to have a Multiboard and hang some of the things laying on my desk.

== Problem ==
Drilling the screen won't be a good idea, and gluing didn't sound as strong enough. I needed some clamps, claws, clips, whatever



As you probably understood by now, this model is related with the Multiboard, a masterpiece designed by Jonathan from Keep Making, so go check all his stuff because it's worth it







== This model/remix ==

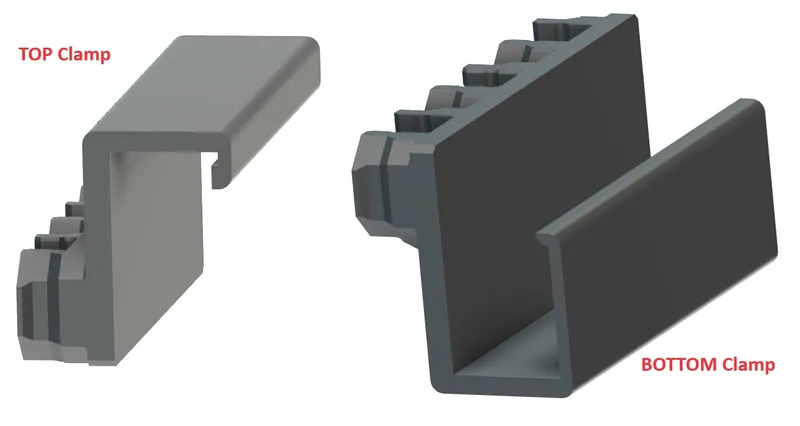

This mode has 2 adaptations of the 8 mm Offset, Trio Command Strip Mount - DS Part A, one for the top clamp and another for the bottom clamp, as both edges of the screen have different sizes and formats.



== Additional parts ==
Aside from these 2 models I used the parts bellow to compose the Multiboard:




Tags



Model origin

The author remixed this model.

Differences of the remix compared to the original

Added additional length and “clamps” to fit on the pc screen edges
