Octagonal Flower Pot in Various Sizes

Introducing the octagonal flower pot, a perfect blend of functionality and style. This pot's distinctive eight-sided design, with smoothly rounded corners, forms its foundational shape. The top rim of the pot is elegantly rounded, accentuating the pot's unique geometry with clean, unembellished lines. On the sides, a series of vertical ribs interact with light to create an engaging play of shadows. These ribs run straight from the top to the bottom, intersecting at the octagon's corners for a seamless look.

Beyond their decorative purpose, these ribs contribute significantly to the pot's sturdiness. Additional ribs at the bottom reinforce the pot, ensuring it remains robust, even when moved. Numerous small drainage holes are strategically placed to allow excess water to escape while preventing soil erosion and promoting air circulation.

This model comes in an impressive 62 size variations, ranging in height from 80mm to 400mm, and in diameter from 180mm to 400mm. It caters to a wide array of printers, from standard models like the Prusa MK3S+ to larger ones like the Prusa XL. To suit different preferences and requirements, three wall thickness options are available: 1.68mm, 2.0mm, and 2.5mm. This allows you to customize the material usage and determine the final sturdiness of your pot.

Explore the Comprehensive PDF Catalog

Finding the perfect model amidst the large number of variants has never been easier! Take a look at the detailed PDF catalog in the "Other Files" section in the “Files” tab. This catalog provides a visual overview of all the models in this project, complete with dimensions, to help you quickly find exactly what you need.

But it's more than just a visual treat; the catalog includes organized tables that let you easily compare models based on specific parameters. Once you've spotted the model that meets your criteria, just search for its filename on the project page to easily download the right file.

Printing the Pot

In the files section, you'll find PrusaSlicer example projects, offering basic settings as a starting point for your prints. For more detailed information, please refer to the table below:

Nozzle Size and Layer Height

The pot is designed to print effectively with 0.4mm, 0.6mm, and 0.8mm nozzles, accommodating all wall thicknesses. Select a layer height appropriate for your nozzle size, and always review the sliced result before printing. Aim for the walls to be printed solely with perimeter lines, free of infill. For prints using a 0.4mm nozzle, consider increasing the number of perimeters to three or more for optimal results.

Choosing the Right Side Thickness

The models not only have different sizes, but also three side thicknesses.

• S17 (1.68mm): The thinnest variant is best suited for rigid filament. It is ok for smaller pots, but definitely too weak for pots that are equal or greater than 200mm in height.
• S20 (2.0mm): The medium thickness gives more stability and works well for soft materials like PETG. A good compromise, for medium sized indoor pots.
• S25 (2.5mm): My recommendation. This thickness provides excellent structural support for the sides of the pot, even for very large prints. These prints withstand outdoor conditions, even when moved filled with heavy wet soil.

Dimensions

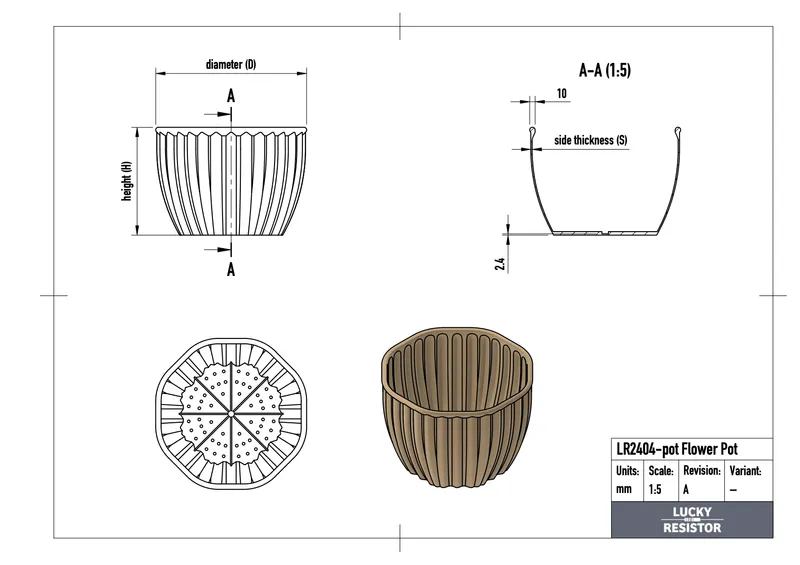

Each model file's name encodes the width (W), diameter (D), and side thickness (S). For example, consider the filename LR2404-pot-S25-H200-D280.3mf. This model has a side thickness of S25 (2.5mm), a height of H200 (200mm), and a diameter of D280 (280mm).

Matching Saucer

• Octagonal Plant Saucer

Locating the Model Files

All the 3D models for the pot and saucer can be found in the “Files” tab, nestled under the “Other Files” category. To streamline your experience, I've organized them into separate ZIP files based on file format—choose from STL, 3MF, or STEP files according to your needs. Simply download the ZIP file that corresponds with the format you require.

In the Store: Fusion 360 Design

I sell the Fusion 360 design for this and other flower pots in the Printables store. By buying this design, you are supporting future designs and make all the free downloadable content possible.

Printables Store: Flower Pots - Fusion 360 Designs

Explore More from Meti·kumi

Interested in more of my designs? Feel free to browse through my collection of 3D models:

👉 https://metikumi.com/3d-models/

Join me on social media to get the latest updates and work in progress information:

👉 https://metikumi.com

Conclusion

This flower pot, with its unique octagonal design and ribbed structure, is sure to stand out in any garden setting. I hope you find these pots both functional and aesthetically pleasing. If you enjoy these models, please consider rating this project and sharing photos of your prints!

Happy printing!
