Parametric Monitor Stand Feet

Parametric 3D Printable Monitor Stand Feet

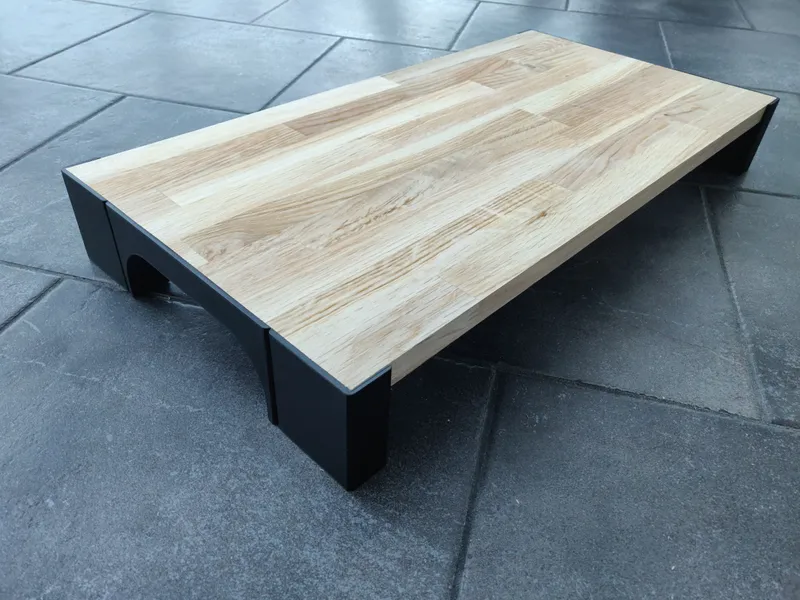

Set of feet for building a monitor stand, suitable to use with a wooden board. Default board dimensions are 300mm width and 18mm thickness, and can be easily adjusted in the FreeCAD spreadsheet.

The center piece is probably not strictly needed, it is mostly to obscure the edges of the board which in my case was not very nice. You may also want to add some rubber feet or other rubber material under the feet.

As for screws I used 4mm x 20mm flat head (not counter sunk) wood screws.

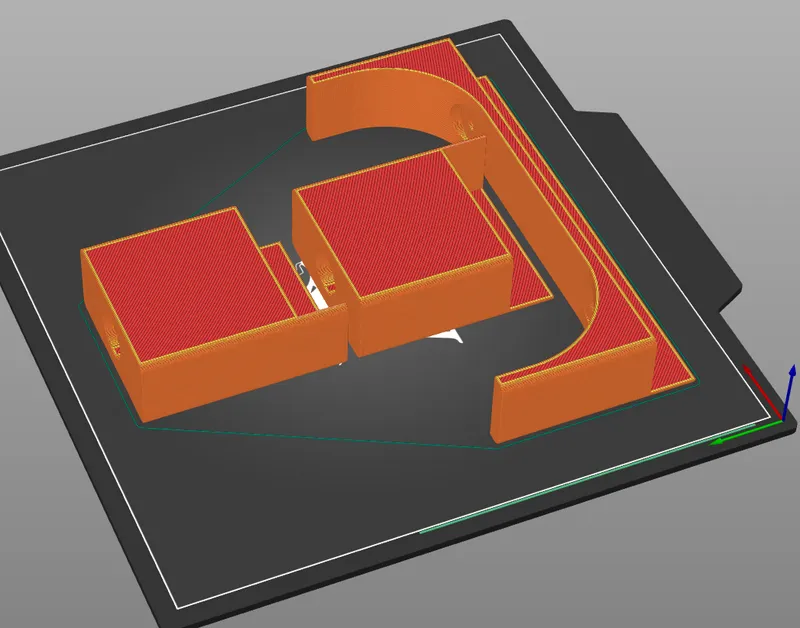

Print two sets lying down like this:

The dimensions can easily be adjusted in the FreeCAD spreadsheet:

Be sure to allow a millimeter or so in width for tolerance, and maybe 0.1-0.3 in thickness depending on your board. Also be aware of dimension variations in wooden boards. Mine was said to be 300mm wide but was actually 303mm.

There are also cut down versions of the corner feet to be used as drill guides.
