Bowden tube and CANbus / USB cable support clips
Bowden tube and CANbus / USB cable support clips for FDM printers
181
813
16
2844
updated
January 28, 2024
Description

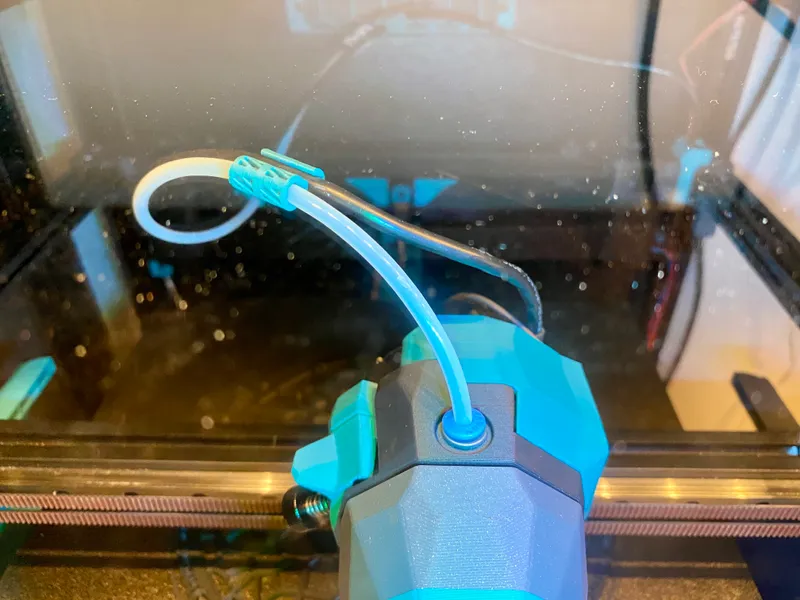

PDFBowden tube and CANbus cable support clips.
Oftentimes switching from conventional setup of gazillion wires into cable chains is a bit tough as there are certain challenges with this.
Small things can make big difference.
Challenge this simple thing is addressing and solving more than effectively is how to organise bowden tube and CANbus / USB cable sagging and prevent it getting damaged on toolhead movements.
Dimensions
- 4mm OD, 2.5mm ID, 16mm of length
- 4mm OD, 2.5mm ID, 8mm of length
BOM (bill of materials)
Printed Parts
- Printed parts 2 - 4 clips, depending on the size of your printer and therefore - bowden tube and cable length.
PRINT GUIDELINES
Here are print guidelines for you to follow in order to have decent success with printing parts:
| 3D PRINTING PROCESS | FDM (fused deposition modeling) |
| INFILL TYPE | Grid, Gyroid, Honeycomb, Triangle or Cubic |
| MATERIAL | Enclosed printer — ASA, ASA-CF, ABS, ABS+, ABS-CF |
| Un-enclosed printer — PLA, PLA+ or PETG | |
| INFILL PERCENTAGE | 40% - 60% |
| LAYER HEIGHT | Recommended: 0.2mm |
| WALL COUNT | Recommended: 4 |
| SOLID TOP/BOTTOM LAYERS | Recommended: 5 |
| EXTRUSION WIDTH | Forced 0.4mm |
Side notes to the print guidelines
A wall count of 4 is an absolute must to ensure the structural integrity of the parts. There is no need to go over the top with this. 4 walls are perfectly fine for this model.
CHANGELOG
| Date | Change |
| 28.01.2024 | Initial version (Rev1) |
