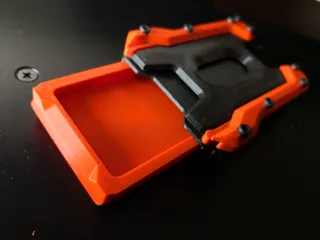

Cigar Safety Box for Every Day or Camp

An interesting box for a cigar. It is sturdy and will keep your cigar fresh and whole all the time while you are traveling and just working. Put it in the pocket of the backpack and forget about the worries.  Suitable for cigars with dimensions no more than 130mm large and 15mm diameter!

Print settings:

perimeter - 5

 upper and lower layer - 5

 infill- 15%

CONNECTING BRIDGE file print with Brim- 10

LOWER MASTER PART file print with Brim- 10 and Snug Supports!

UPPER MASTER PART file print with Brim- 10

Layer height from .10 to .20

Depending on the calibration of your printer, you may need to drill the holes in the bridge and "hinges" with a 1.5mm drill and then up to 2mm. Place pieces of 1.75mm thread for axles and carefully melt them at both ends.
