Low-Friction Bambu P1S Y-Splitter - No couplers, no magnets

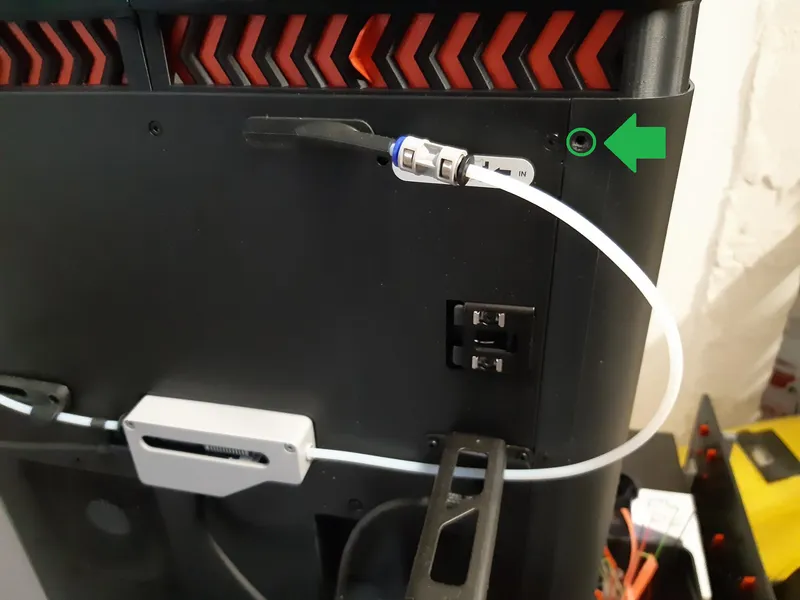

A small adaptation of the great low-friction bowden/PTFE-tube Y splitter by BlindMaker. This remix adds an M3 slot flange that allows to fix the splitter on the rear side of the Bambu P1S (the X1C should work as well), using an M3*10 screw with one or two washers (depending of the splitter shall remain movable or not). Just remove the screw from the printer housing, as indicated in the picture below, and install the splitter there.

You will need to print one top part and a bottom part of your choice - either for M3 inserts or nuts. For a list of required screws, print and usage instructions and the engineering history behind this model, please refer to the page of the original model by BlindMaker.
Furthermode, if you own an X1C and prefer using magnets, you can find the corresponding models there.

If you prefer to have a 3-way splitter instead of a Y-splitter, also featuring a flange, check out this similar remix by WayneC.

Happy printing!

Added an M3 slot flange for attachment on the P1S (and perhaps X1C) housing to the bottom parts without magnets.
