Voron 0.2 - 5 inch HDMI screen mount

Minimal display case/mount for a 5 inch HDMI display that fits to the original V0 Display mount…no skirt modification needed. You can check the dimensions on the official Elecrow website :

https://www.elecrow.com/5-inch-hdmi-800-x-480-capacitive-touch-lcd-display-for-raspberry-pi-pc-sony-ps4.html

____________________________________________________________________________________________________________

BOM :

• 1x 5 inch Elecrow HDMI touchscreen
• 1x printed case
• 2x printed mounts
• 4x M3x8mm BHCS
• 4x M2x10mm selftapping

Instructions :

If using the same display (type B) you have to snap off the 4 screwing mounts on each side - there should be ~2mm left, see picture below :

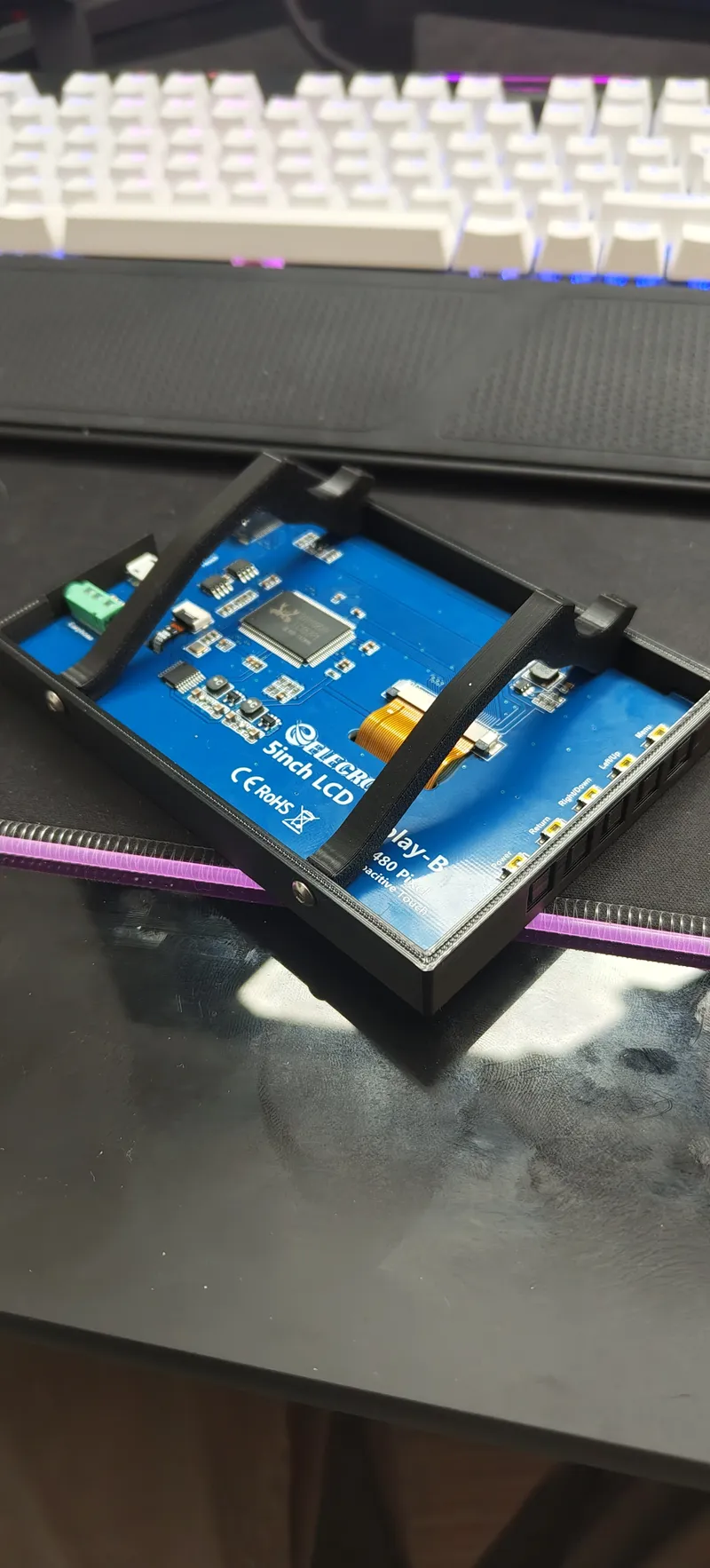

Push the screen into the case and fix it into position with two mounting brackets - using 4x M3x8mm screws.

The screen will be mounted to the original V0 Display mount using 4x M2x10mm selftapping screws.
