Below raiser for the Creality K1 (not for the K1 Max)

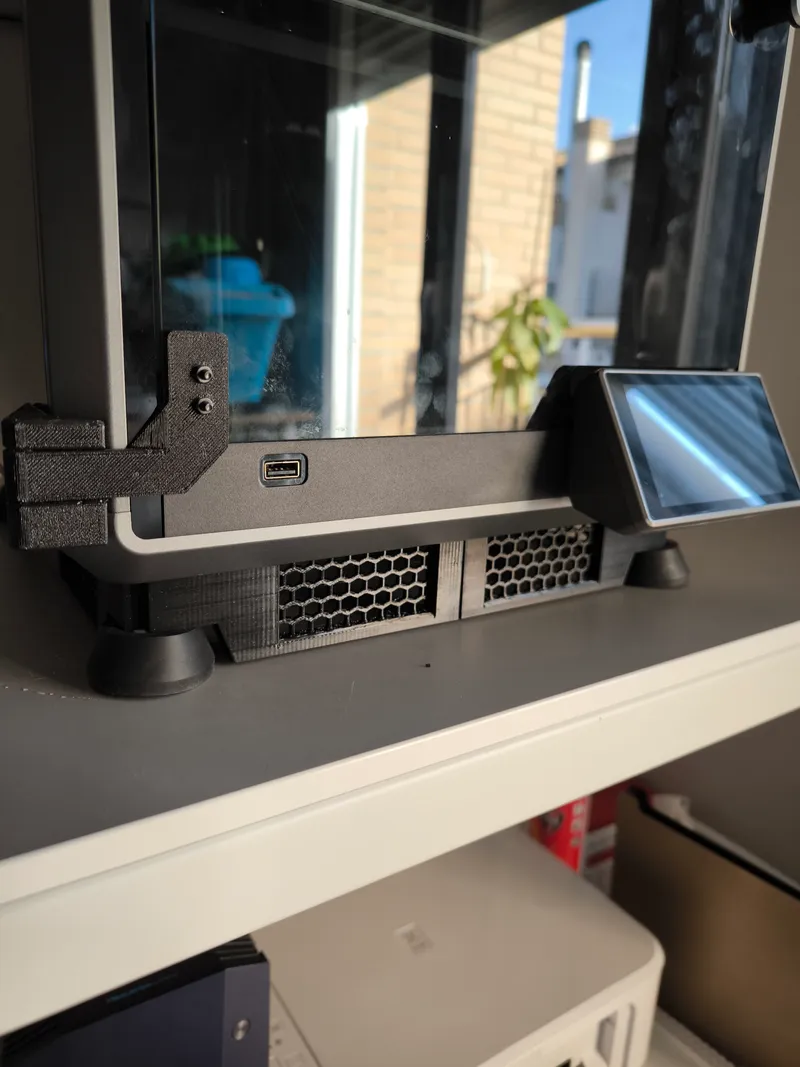

Below raiser for the Creality K1 to avoid things get under the machine, improve the general support and improve the below ventilation

Not suitable for the K1 Max due that I don't own it.

You have the full version if you own a 400*400 heatbed size so you save 8 screws plus nuts and o-rings

DANGER: Beware when moving the machine. If you need to move it, I suggest to remove the below raiser.

Things that you need:

• 4 x M3 x 10 mm
• 4x M4 X 18 mm plus M4 inserts

If you don't have a huge printer and you print the four parts:

• 8 x M3 x 20 mm (plus nuts and o-rings)

HOW TO INSTALL IT:

If you printed the four parts:

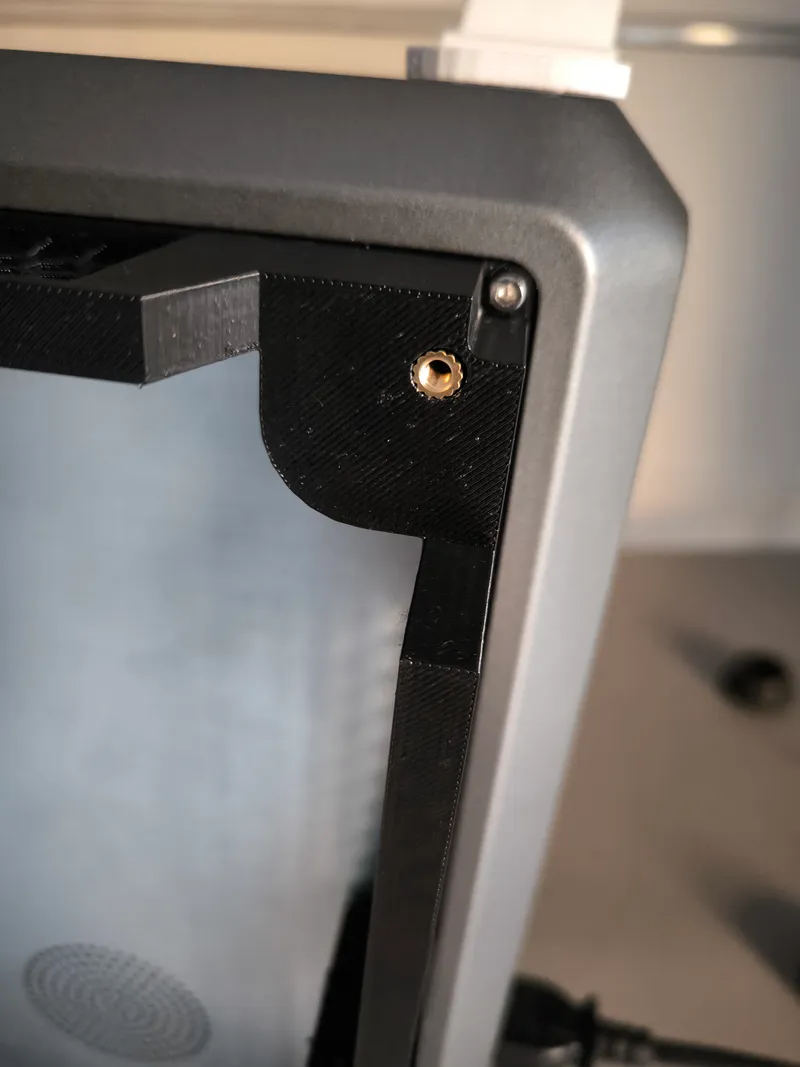

First, use a soldering iron to insert the M4 inserts in each corner to attach the adapters plus the silicone pads.

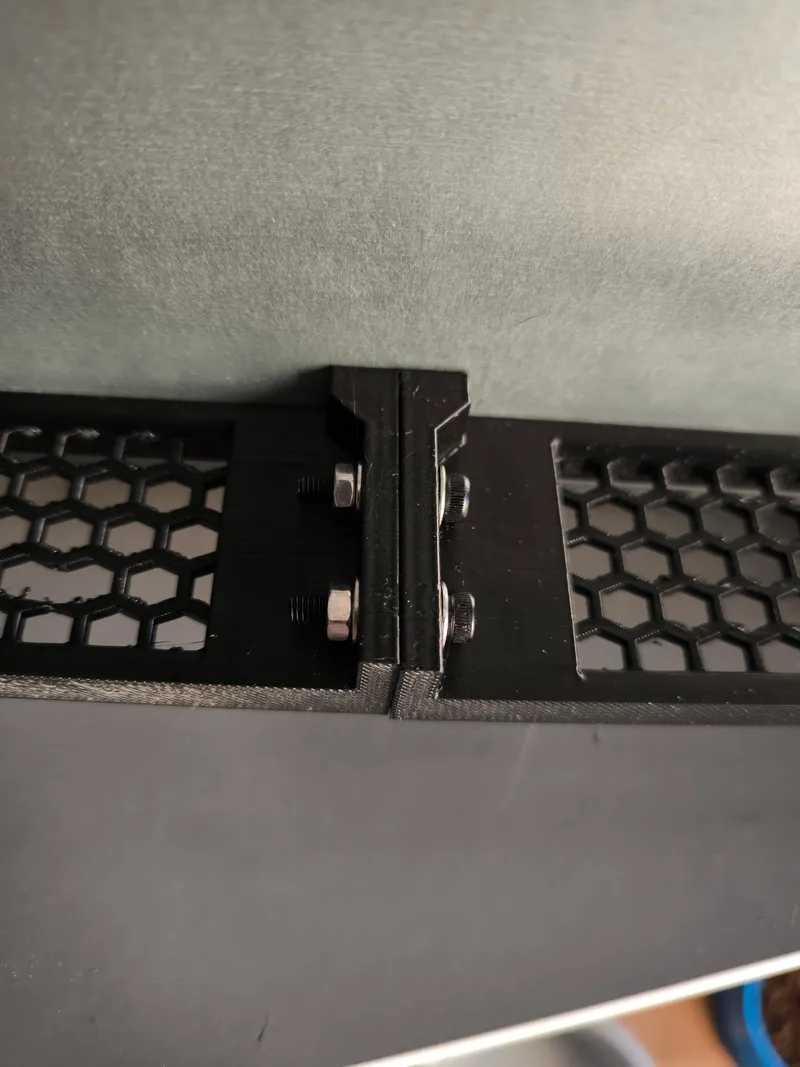

Join with the 8 x M3 x 20 mm (plus nuts and o-rings) before puting into the machine.

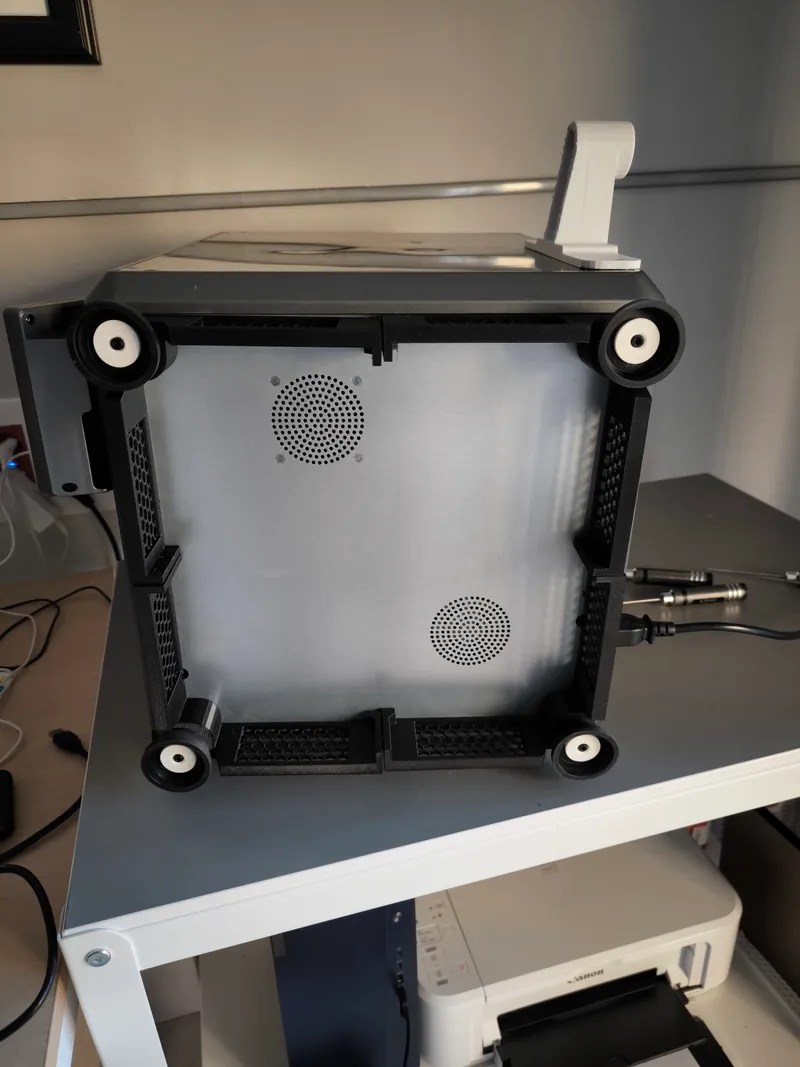

Once done or you printed the full version on a huge heatbed printer, use the M3 x 10 mm to attach to the machine on each corner.

Finally attach, using the adapters (adaptadores.stl) and the silicone pads, with the M4 x 18 mm screws

Turn over, carefully, the 3d printer and enjoy it.

Disclaimer: If you want a drawer, will be available soon.

For K1 Max, I don't own one… So I don't know where are the two grounds screws attached. Feel free to design it.
