This 6 cell module tray for starting your seeds, designed to be strong and sturdy so that i can be reused many times, with a large hole in the base to aid drainage and the easy removal of plug (plant) once the plant is ready for transplant. They also nestle together nicely for storage when not in use.

MK2 version of my cell tray, changes made:

1) The corners of the cells now have a greater radius, this makes it slightly easier to remove the plug while also making the cells stronger.

2) The overall height has been reduced very slightly so is now a nice round 60mm.

3) The notches between cells have been made wider.

Note 1: For storage the new MK2 version will still stack with the original version no problem.

Note 2: I have decided not to continue with the Air pruning version for several reasons, among them i found the modules aren't as robust as i would like them to be for FDM printing, i didn't see much of a difference between in plant growth between the Air pruning and standard modules and i found they dried out much faster than the standard modules.

Overall these changes should make the module trays even more robust, while requiring a phew grams less plastic to print (around 5 grams for the standard 6 cell tray)

Edit 17/7/21: I have added a shadow versions of both the trays that i intend to use for starting seeds like lettuce before pricking them out into individual modules.

Edit 15/12/21: I have added a 9 cell version of the standard depth tray.

Edit 9/3/22: I have added a dibber for the easy planting of the standard modules.

Edit 20/3/22: I have added a dibbler/push out plate to help with creating planting holes and removing the plants from the modules when ready to plant.

Standard 6 cell tray Dimensions:

Cell size (Approximate): is 40X40X58mm

Overall tray size(Approximate): 124X83X60mm

Standard 6 cell tray shallow Dimensions:

Cell size (Approximate): is 40X40X43mm

Overall tray size(Approximate): 124X83X45mm

6 cell tray wide Dimensions:

Cell size (Approximate): is 60X40X58mm

Overall tray size(Approximate): 124X124X60mm

6 cell tray wide Shallow Dimensions:

Cell size (Approximate): is 60X40X43mm

Overall tray size(Approximate): 124X124X45mm

Print Settings:

Layer Hight - 0.3

Perimeters - 1

Infill - 5-10% should be plenty

Support- None

Sugested Material- PETG, ASA

Print Settings

Printer Brand:

Prusa

Printer:

I3 MK3S

Rafts:

Supports:

Resolution:

0.3

Infill:

5-10%

Filament:

Real Filament PETG

Category: Outdoor & Garden

","category":{"id":"53","path":[{"id":"3","name":"Household","nameEn":"Household","description":"Marvel at these impressive interior and exterior decors. Download print-in-place items, vases of various shapes, or geometrical lamps.","__typename":"CategoryType"},{"id":"53","name":"Outdoor & Garden","nameEn":"Outdoor & Garden","description":"Interested in gardening? Grow herbs with ingenious planters or print avocado seed floaters. Breathe life into your garden with bird feeders and windmills.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2022-04-12T14:14:14.774183+00:00","firstPublish":"2021-07-19T21:32:45.280898+00:00","datePublished":"2021-07-19T21:32:45.280898+00:00","dateCreatedThingiverse":"2021-07-13T20:25:49+00:00","nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"MK2 version of my cell tray","likesCount":237,"makesCount":21,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":1467,"displayCount":5245,"filesCount":7,"privateCollectionsCount":202,"publicCollectionsCount":170,"pdfFilePath":"media/prints/71854/pdfs/71854-seedmodulecell-tray-mk2-seedplug-tray-561ebf6f-bf29-4ab6-beea-d785e9602e8b.pdf","commentCount":27,"userGcodeCount":0,"remixCount":2,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"708579","filePath":"media/prints/71854/images/1397287_22574f41-e157-4b64-9f9d-04a21ce02418/pxl_20220311_000759618.jpg","rotation":0,"imageHash":"3AgKFYSXiHmbmXhvhmd5diFvbgWZ","imageWidth":4032,"imageHeight":3024,"__typename":"PrintImageType"},"images":[{"id":"708579","filePath":"media/prints/71854/images/1397287_22574f41-e157-4b64-9f9d-04a21ce02418/pxl_20220311_000759618.jpg","rotation":0,"imageHash":"3AgKFYSXiHmbmXhvhmd5diFvbgWZ","imageWidth":4032,"imageHeight":3024,"__typename":"PrintImageType"},{"id":"409360","filePath":"media/prints/71854/images/780104_f470f811-a7f9-4967-85c1-44d2b8b0d651/large_display_pxl_20210713_201549840_71854.jpg","rotation":0,"imageHash":"3wcODYL2mbd0h4iPZ4aYfM9T/Uzl","imageWidth":984,"imageHeight":738,"__typename":"PrintImageType"},{"id":"409361","filePath":"media/prints/71854/images/780105_63110100-6f6b-4d09-9b1b-f9e6e6d26e97/large_display_pxl_20210713_201611674_71854.jpg","rotation":0,"imageHash":"YQgSDYL3l3h3mHh+hpaHifpUnz/1","imageWidth":1024,"imageHeight":768,"__typename":"PrintImageType"},{"id":"409362","filePath":"media/prints/71854/images/780106_bbb9c68f-a0bc-44a3-a072-a265ccca4d3b/large_display_pxl_20210713_201537968_71854.jpg","rotation":0,"imageHash":"GAgODYCYmKiIhod/eHeIf4pjn2j3","imageWidth":1024,"imageHeight":768,"__typename":"PrintImageType"},{"id":"409363","filePath":"media/prints/71854/images/780107_1f620f79-287b-43bb-bb01-2ee7711c0c4a/large_display_pxl_20210713_201517850_71854.jpg","rotation":0,"imageHash":"JQgWDYL3mIeXaIiNdpZ3efx6vq/X","imageWidth":1024,"imageHeight":768,"__typename":"PrintImageType"},{"id":"409364","filePath":"media/prints/71854/images/780108_f6913c1f-0df6-481b-9cc4-23aee3a43b20/large_display_pxl_20210719_212231797_71854.jpg","rotation":0,"imageHash":"YxgODYJ3iJeGeHePeId3cod6f3f3","imageWidth":1024,"imageHeight":768,"__typename":"PrintImageType"},{"id":"706628","filePath":"media/prints/71854/images/1393090_c9b82306-a534-4e8d-868b-7cd2e7004174/pxl_20220309_164745279.jpg","rotation":0,"imageHash":"LwgOBQD4eFq2uUh2iYqHiPRGam+l","imageWidth":3024,"imageHeight":4032,"__typename":"PrintImageType"},{"id":"725069","filePath":"media/prints/71854/images/1438220_18e07a5e-d52d-49b3-9b7d-b268671c265c/pxl_20220317_141911006.jpg","rotation":0,"imageHash":"nxgOFYLqmYeMdodvdnZ4etiaj635","imageWidth":4032,"imageHeight":3024,"__typename":"PrintImageType"},{"id":"725068","filePath":"media/prints/71854/images/1438221_c37a6fb7-8593-4241-ba23-c213f919c5fd/pxl_20220317_141859262.jpg","rotation":0,"imageHash":"nxgODYDqqXeYdnh/ZYZ3ifbdCt89","imageWidth":4032,"imageHeight":3024,"__typename":"PrintImageType"},{"id":"409365","filePath":"media/prints/71854/images/780109_978d941b-aa6b-49b7-97ee-452710a988fc/large_display_6_cell_seed_tray_mk2_71854.png","rotation":0,"imageHash":"48YJLYjlqHmfdneOhXZ4eOaJb534","imageWidth":800,"imageHeight":600,"__typename":"PrintImageType"},{"id":"409366","filePath":"media/prints/71854/images/780110_8760bd25-0c76-4f6e-a74d-4a701d3446a0/large_display_6_cell_seed_tray_mk2_wide_71854.png","rotation":0,"imageHash":"JdcJJYb3mHiPdnePhFaHh/eJf574","imageWidth":800,"imageHeight":600,"__typename":"PrintImageType"},{"id":"409367","filePath":"media/prints/71854/images/780111_1fa1b768-c1e9-4844-809b-574864a15347/large_display_6_cell_seed_tray_mk2-wide-shalow_71.png","rotation":0,"imageHash":"ZecJJYbXl3iPdnePhUaHhueJf534","imageWidth":800,"imageHeight":600,"__typename":"PrintImageType"},{"id":"409368","filePath":"media/prints/71854/images/780112_470e03de-26b1-4ffc-b299-2adb0bd2d7b6/large_display_6_cell_seed_tray_mk2_shallow_71854.png","rotation":0,"imageHash":"4sYNLYjVp4ifdneOhmZ3d9aJb5z4","imageWidth":800,"imageHeight":600,"__typename":"PrintImageType"}],"imagesCount":13,"tags":[{"name":"planter","id":"440","__typename":"TagType"},{"name":"garden","id":"958","__typename":"TagType"},{"name":"gardening","id":"2919","__typename":"TagType"},{"name":"plants","id":"3532","__typename":"TagType"},{"name":"seedling","id":"4256","__typename":"TagType"},{"name":"thingiverse","id":"6174","__typename":"TagType"},{"name":"seeds","id":"10581","__typename":"TagType"},{"name":"seedlings","id":"18957","__typename":"TagType"},{"name":"seedstarter","id":"21134","__typename":"TagType"},{"name":"growyourown","id":"24934","__typename":"TagType"},{"name":"growyourownfood","id":"42539","__typename":"TagType"},{"name":"homegrowing","id":"42540","__typename":"TagType"}],"thingiverseLink":"https://www.thingiverse.com/thing:4907855","filesType":null,"previewFile":{"id":"317927","filePreviewPath":"media/prints/71854/stls/780113_d88d576e-8513-4c63-b3ec-2a2f5861db91/6_cell_seed_tray_mk2_shallow_preview.png","__typename":"STLType"},"license":{"id":"1","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[{"id":"122979","modelId":null,"modelName":null,"modelAuthor":null,"model":null,"url":"https://www.thingiverse.com/thing:4907855","urlAuthor":"wardy89","urlImage":"https://cdn.thingiverse.com/assets/e5/21/d6/5f/f3/featured_preview_PXL_20210713_201549840.jpg","urlTitle":"6 Cell Module Tray MK2 (Seed/Plug Tray)","urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"}],"remixDescription":null,"easyprintProjects":[],"__typename":"PrintType","eligibleForNomination":false,"publishApprovalRequired":false,"publishRequests":[],"priceBeforeSale":null,"user":{"id":"2335","handle":"wardy89","verified":false,"dateVerified":null,"publicUsername":"Alex Ward","avatarFilePath":"media/auth/avatars/00/00eae9d9-dc49-4dbe-bfa4-45ab80c507af.jpg","badgesProfileLevel":{"profileLevel":18,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"isHiddenForMe":false,"canBeFollowed":true,"billingAccountType":"personal","lowestTierPrice":null,"designer":false,"stripeAccountActive":null,"membership":null},"contests":[],"contestsResults":[],"prusameterPoints":null,"latestContestResult":null,"referencingArticles":[]}}}

Seed/Module/Cell Tray MK2 (Seed/Plug Tray)

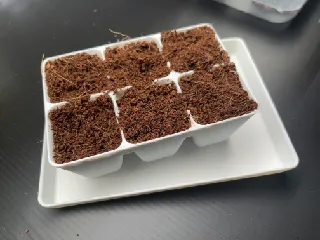

Tray for 2 6-cell seed trays
