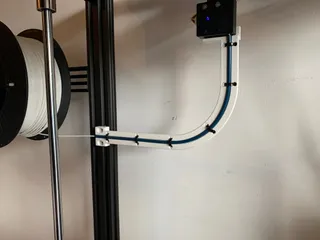

Ender 5 plus tube holder / mount PTFE

I designed this to ensure that there is no pulling and twisting forces on the bowden tube, this ultimately ensures that there is less wear and tear on the bowden tube over time.

I got this idea because I saw the bowden tube twisting during printing. When I replaced the tube with a capricorn xs tube I saw a lot of wear on the tube "this had to be solved!"

Used Parts:

M3x10mm bolt

M3-nut (height 2mm)

145mm ziptie

Printed part from:

T-nut M3 drop-in rotating V-Slot https://www.thingiverse.com/thing:3050607

Parts on printer:

MK8 Extruder https://www.123-3d.nl/123-3D-Aluminium-MK8-Bowden-Extruder-Upgrade-kit-rood-rechts-i3136-t372.html?mkwid=spV3cZqXW_dc%7Cpcrid%7C454484333923%7Cpkw%7C%7Cpmt%7C%7Cslid%7C%7Cprid%7CPF_DEX00011_8719345008979_&pgrid=108786081009&ptaid=pla-932608945606&gclid=Cj0KCQiAtqL-BRC0ARIsAF4K3WEC6jW2DwsYmnGr4ckuppd1zc4LySLbFGQiq7PRAueOdFHv-S241OIaAtoyEALw_wcB

Capricorn xs creality kit https://www.123-3d.nl/Capricorn-TL-Creality-3D-kit-1-meter-transparant-incl-pneufit-koppelingen-en-knipper-i3506-t15117.html?mkwid=s0yzQByyN_dc%7Cpcrid%7C454484338315%7Cpkw%7C%7Cpmt%7C%7Cslid%7C%7Cprid%7CPF_DBW00052_0618194322275_&pgrid=108786142449&ptaid=pla-933786772523&gclid=Cj0KCQiAtqL-BRC0ARIsAF4K3WErwMk3mOF_75iJ7M518wHi5LtNQzgUma-GmnN65r5XHYioNl_2ndMaAq6oEALw_wcB

Print Settings

Printer Brand:

Creality

Rafts:

No

Supports:

Yes

Resolution:

0.2

Infill:

30%

Filament:

White

Notes:

I used PLA as filament and put the print on its side (see print photos), that the holes were printed correctly and the support material was as litte as possible.
