Hinge for IKEA METOD (without damaging the body)

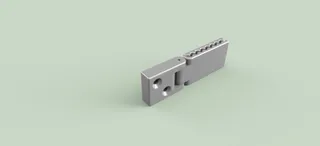

Self-designed hinge for IKEA METOD cabinets to attach doors to.
The assembly works without having to drill additional holes in the cabinet.
The hinge is pressed into the holes for the shelves and then fastened with screws, which drive the plastic apart like a dowel and thus provide a secure hold.
I used filament as the axle for the mechanism, which is carefully heated at the ends with a lighter or soldering iron and compressed a little to prevent it from falling out.

note, the door doesn't close completely because the hinges are on. as i wanted to fit my doors with a seal, this was ideal for me
