Microscope Objective Cover and Barlow Lens Support for Cheap Binocular 20x 40x PCB Microscope

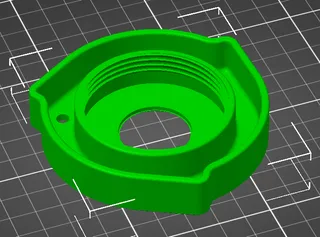

This is an adapter for a cheap optical binocular Aliexpress PCB Microscope "Mobile Repair Professional Binocular Stereo Microscope Industrial Inspection Tool with LED Light" or "20X 40X Binocular Stereo Microscope PCB Soldering Mobile Phone Repair Tool".

It had a design defect, the LED lights did not go fully up, soldering under it was not possible. Also I designed this to add the "WD165 0.5X Stereo Microscope Auxiliary Objective Lens Barlow", which reduces the magnification and increases the view field from 5mm to 10mm.

Some adjustments are needed, like incresing the size with 0,2mm or using an cutter to enlarge some holes that are too tight.

Print Settings

Printer Brand:

Prusa

Printer:

I3 MK3S

Rafts:

No

Supports:

Yes

Resolution:

0.2mm

Infill:

15

Filament: Generic PETG PETG Black

Notes:

4 Perimeters, 15% rectiliniar infill, supports only on the first 7mm generated using the attached STL file as support enforcer in Prusa Slicer, see attached .3mf file containing all settings.
