Ender 6 X Carriage for Mini StealtBurner 4010 by CN3d

:later Edit:

25 December 2023

i realized that i uploaded a wrong part. so if you downloaded the V6 Heat sink  holder you need to download it again and reprint it

You need to reprint both parts that hold the V6 Heatsink This is only if you printed the Old version  from now on its only the updated version online!

i will post the differences now.

Please post your makes!

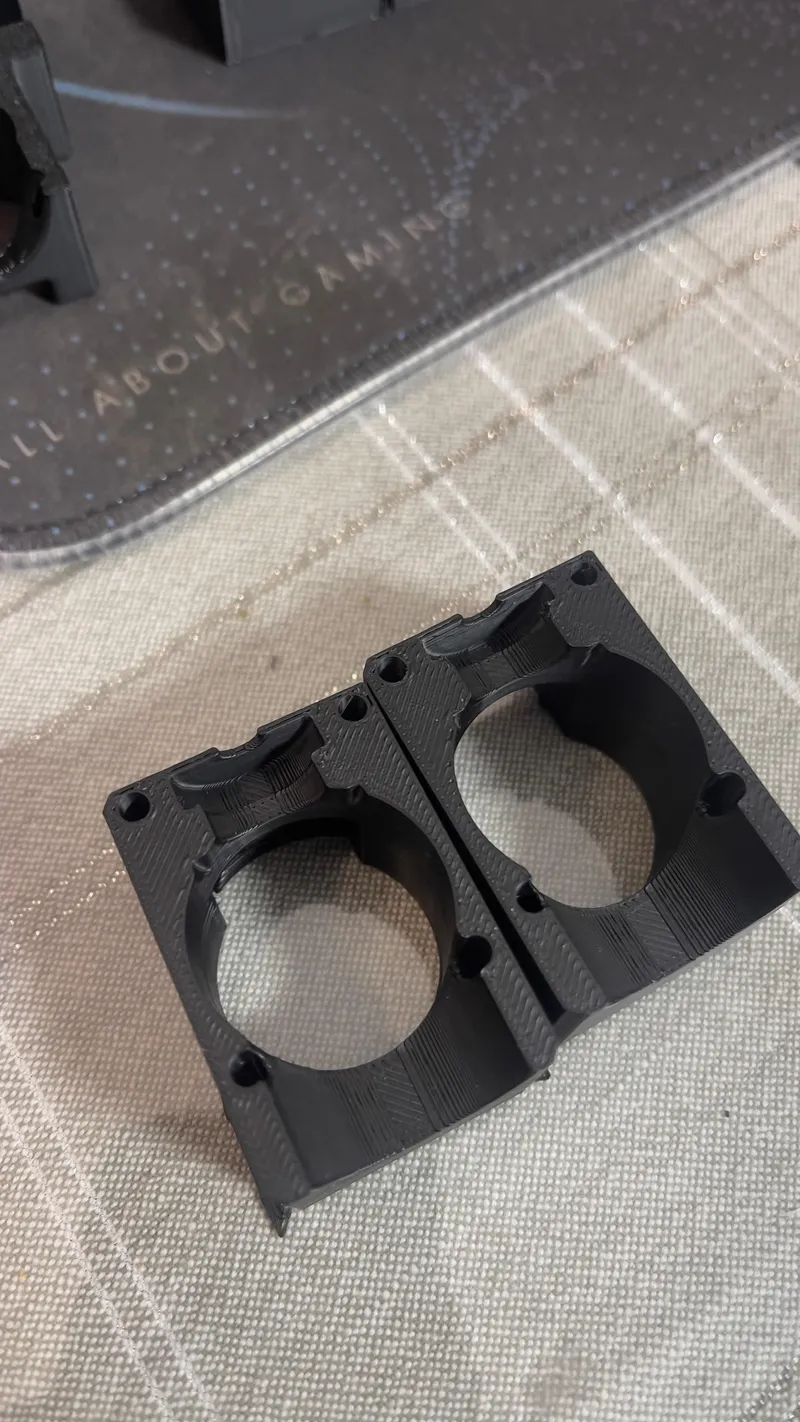

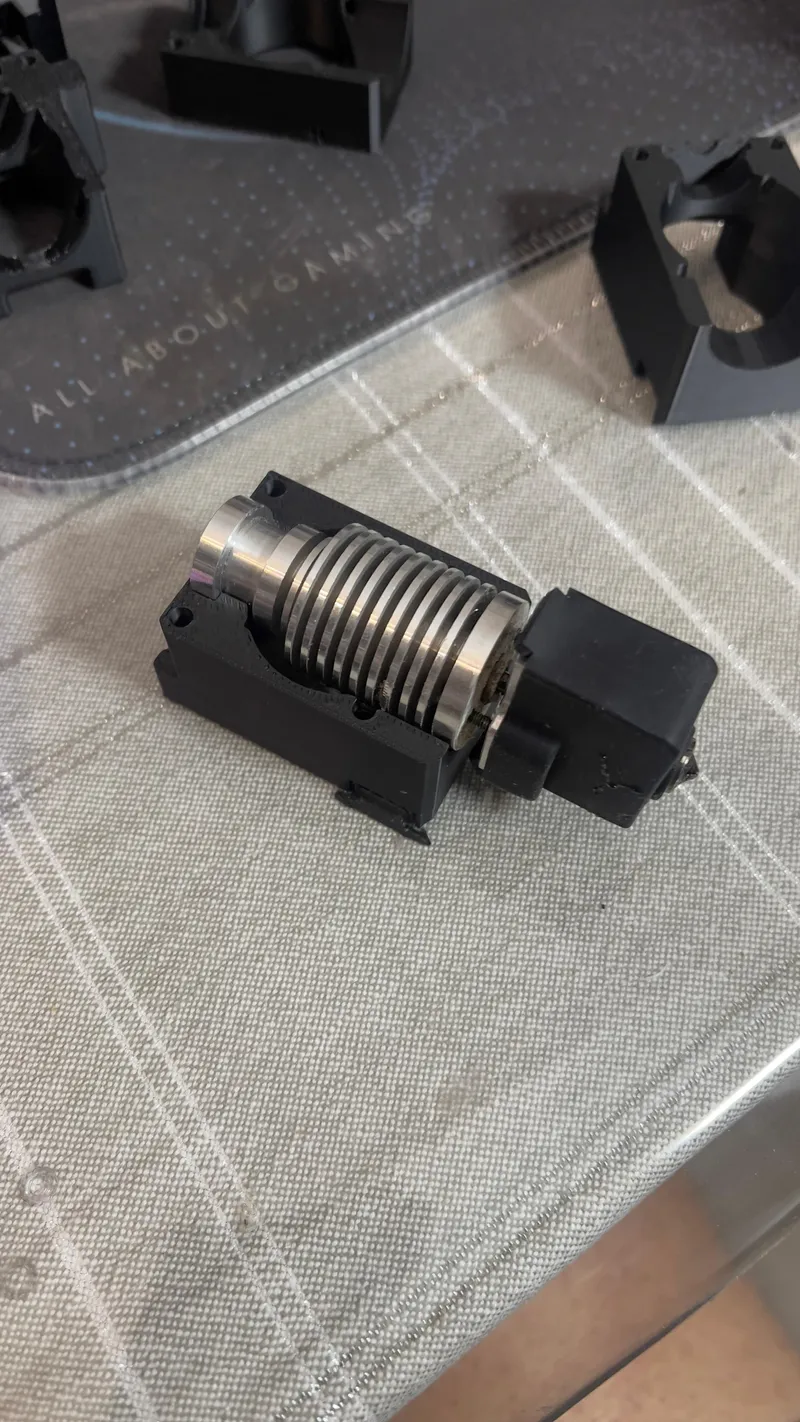

New one

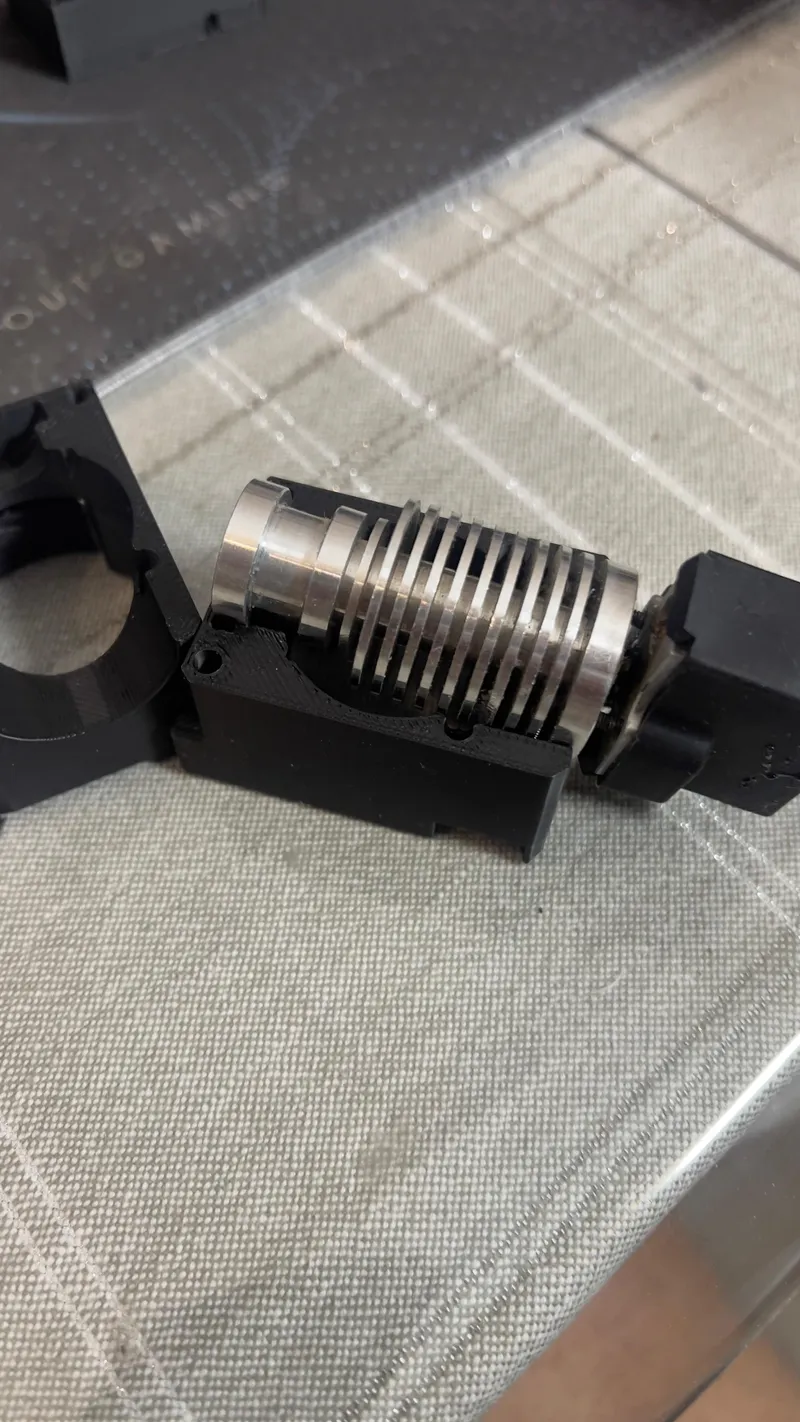

Old

Description: Creality Ender 6 3D Printer Mod - CN3D Mini StealthBurner Toolhead

Upgrade your Creality Ender 6 3D printer with the CN3D Mini StealthBurner Toolhead, a modification designed to bring enhanced performance to your printing experience. This mod allows you to install the powerful https://www.printables.com/model/677824-cn3d-mini-stealthburner-4010-blower-fan-volcano on your Ender 6, delivering improved printing capabilities.

Print Details:

For the X Carriage Plate, it is recommended to use the following print settings:

• Material: ABS
• Walls/Perimeters: 6
• Top Layers: 6
• Bottom Layers: 6
• Infill: Minimum 50%
• NO SUPPORT

These settings ensure a sturdy and reliable X Carriage Plate, providing the necessary support for the CN3D Mini StealthBurner Toolhead.

Bill of Materials:

M3x12 Screws (Quantity: 6):

• Function: To secure components in place.
• Location: X Carriage Plate.

M3 Heat Inserts (Quantity: 6) - Size: M3 x 5.7 x 4.5 or M3 x 6 x 4.5:

• Function: To securely hold the belts.
• Location: Inserted into the X Carriage Plate.

M3 Heat Inserts (Quantity: 4) - Size: M3 x 4 x 4.5 or longer:

• Function: To secure the heatsink holder and the Mini StealthBurner.
• Location: Inserted into appropriate locations on the mod.

These components are essential for the assembly and functionality of the CN3D Mini StealthBurner Toolhead mod for the Creality Ender 6 3D printer. Follow the provided instructions to ensure a successful installation, allowing you to make the most out of your upgraded 3D printing capabilities while retaining the use of your belt.
