ERCF Ceiling Mount

This is a ceiling mount for a 6-color ERCF.

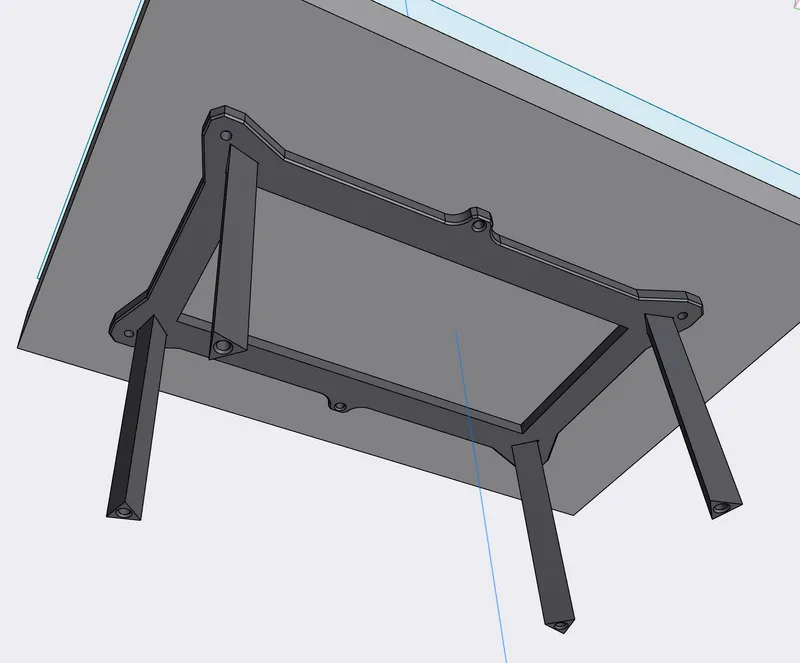

The mount consists of 1 piece that mounts to the ceiling, 1 piece that mounts to the ERCF, and 4 pillars with heat-set inserts on either side that join the 2 together. Because you screw in the ERCF mount from the bottom into the pillars, it allows for simple unmounting for maintenance or modding.

If you need a EasyBrd/Burrow board mount for this, it can be found here.

BOM

• 8x M4 heat-set inserts
• 6x M3 heat-set inserts
• 8x M4x12 screws
• 6x M3x8 screws
• 4x Drywall anchors
• 4x Drywall screws

Build instructions (Important)

Please read - if you do these steps out of order, you will most likely need to disassemble it and start again.

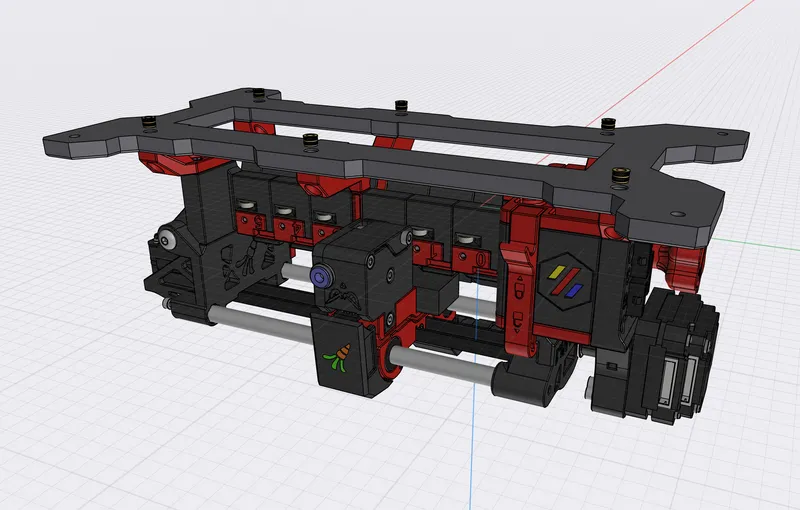

1. Insert the M3 heat-set inserts into the ERCF mount and secure the ERCF to it. Set it aside until step 5.

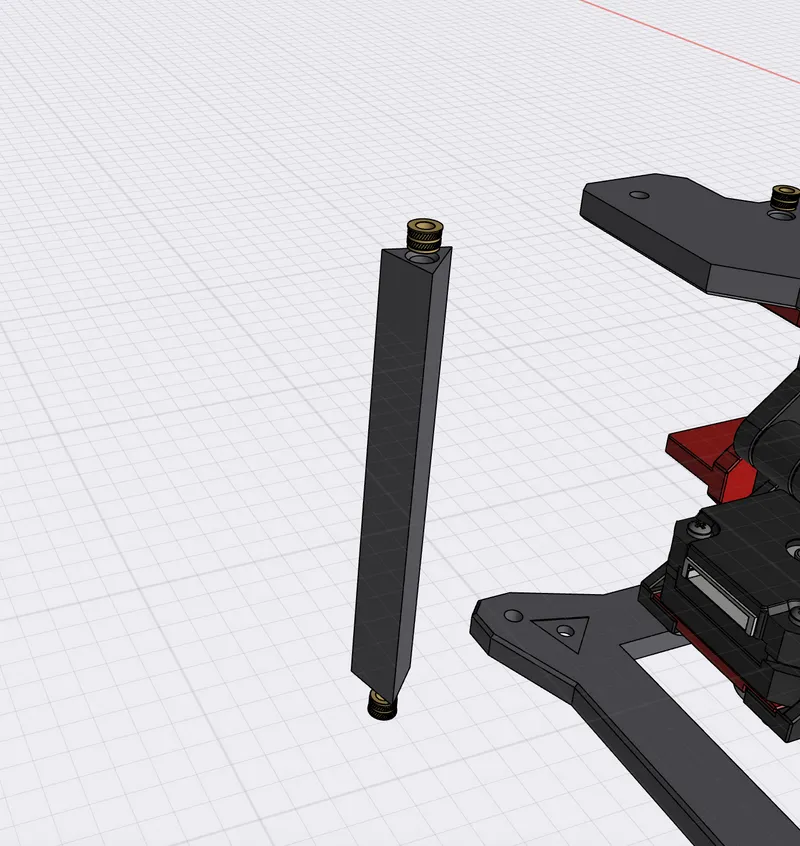

2. Insert a M4 heat-set insert into the top and bottom of each pillar - 2 per pillar, 8 in total

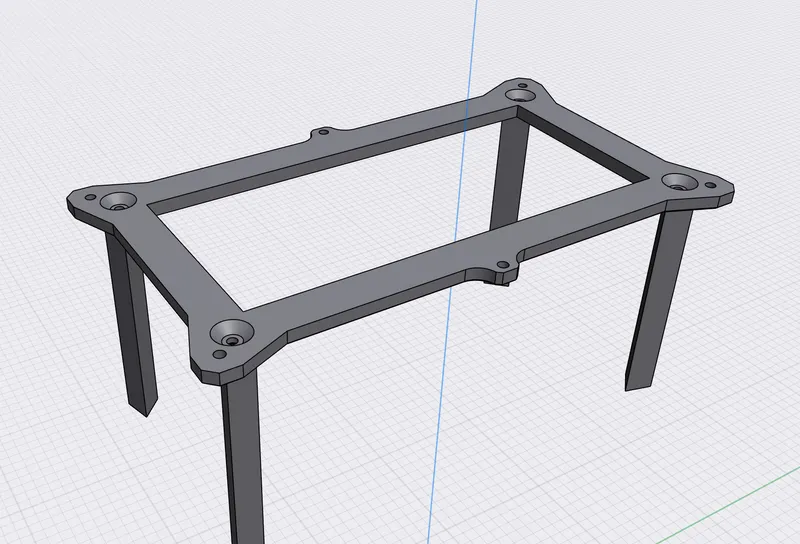

3. Secure all 4 pillars to the ceiling bracket with M4 screws

4. Secure the ceiling bracket to the ceiling with drywall anchors and screws - If the 4 pillars aren't screwed into the ceiling bracket after you mount it to the ceiling, you will have to take it down and screw in the pillars

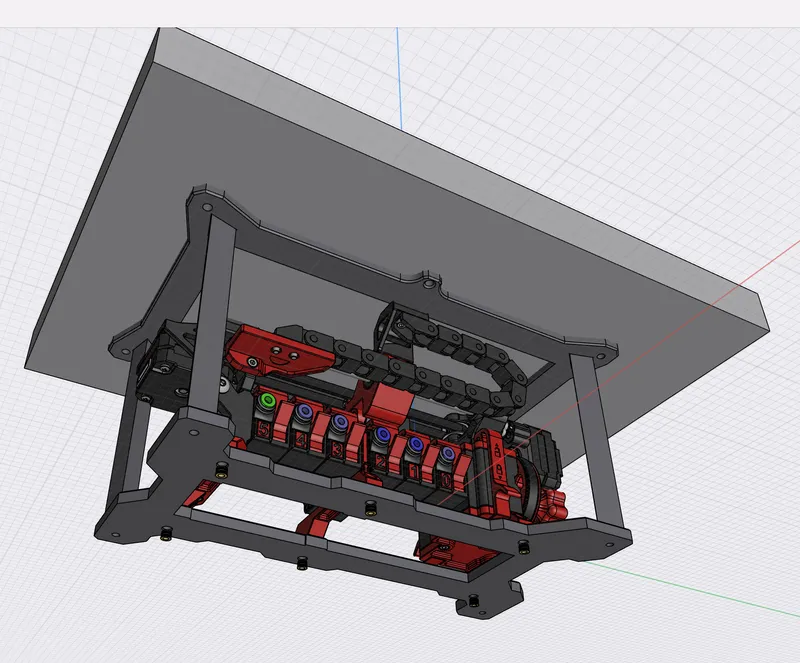

5. Secure the ERCF bracket to the ceiling bracket with 4 M4 screws, screwing into the bottom of the pillars

And you're all set!

If you want a 9 or 12-color version, let me know and I can design them, Happy printing!
