Gridfinity 2 bottle holder (with Blank, cut blocks & Instructions)

Need a place to put a my IP alcohol and a small bottle of Acetone).

I also included a blank with Cut Blocks so you can make your own custom bottle holder. Instructions on how to edit the file to customize it yourself below.

HOW TO MAKE YOUR OWN

Instructions for someone who is not good at 3D Design.

I for one cannot design from scratch, but I can do remixes with MS 3D Builder. Here are a few steps to make your own custom holder. You can make the cut blocks bigger or smaller. Or make them all smaller and then add more, in MS 3D Builder you can select an element and do a copy and paste.

1. Measure your bottles, using a caliper would be best.
2. Open Gridfinity 2x2_BottleHolder_w-CutBlocks in MS 3D builder (you can get this from the MS Store, it is free).
3. Select one of the 2 cylinders, then change the X & Y to the width of your bottle, Plus 1 mm to allow the bottle to fit. (Just to allow a little space for it to fit easily)

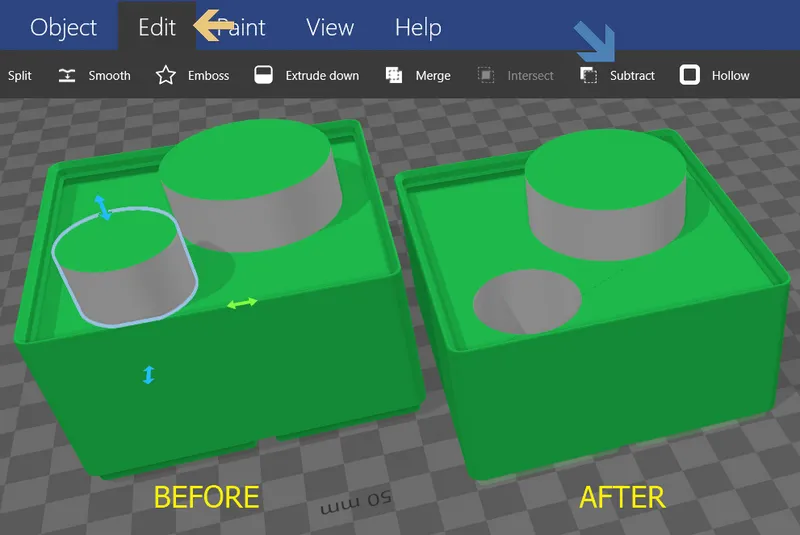

4. After you set the size of the cylinder, select the cylinder, then on the menu across the top, click on the Edit Menu (Orange Menu) > Then click on Subtract (Blue Arrow).


5. After both cylinders are set, click File > Save As > Then change the file extension to .STL.

Again as I mentioned, I am not that good at 3D design but I can do some remixes, feel free to let me know if you have any questions.
