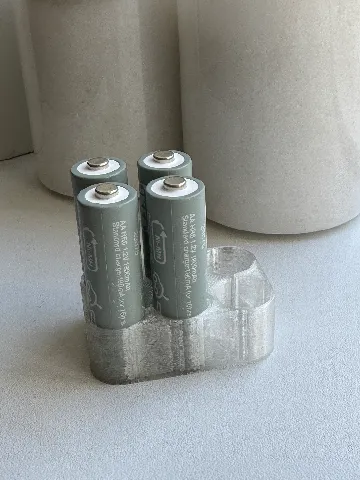

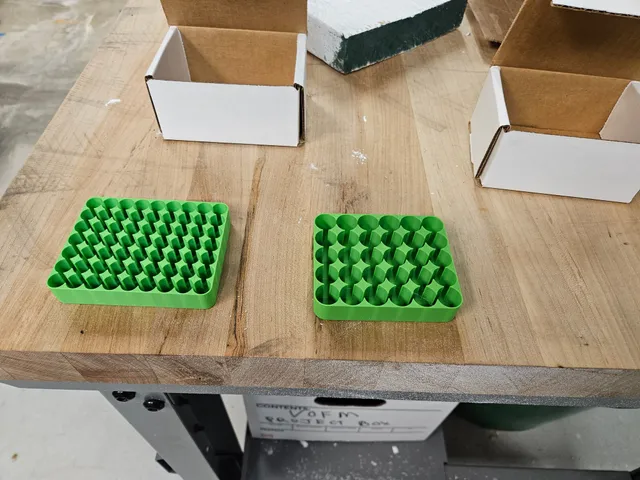

Battery organizer

To customise battery organizer you need to download the program from the OpenSCAD - The Programmers Solid 3D CAD Modeller website and run the tile_grid.scad file.

You will see that you have 3 groups of parameters:

Battery type
1. The predefined battery type: AAAA, AAA, AA, C, D, 14500, 18650, 21700, 26650, Coin Cell, 4LR44, LR1, CR123A, Manual
2. Height of the battery (16mm)
3. Height of the base (0.8mm)
Grid dimensions
1. Number of columns, is set to 3
2. Number of lines, is set to 3
3. Wall thickness (0.4mm)
Manual overwrite
1. Battery diameter, when battery type is manual it take this value, is set to 0 mm
2. Insertion gap for the batteries to allow smooth insertion, is set to 0,2mm
3. Gap between batteries, is set to 2 mm
Vase mode
1. Default is activated

Slicer Settings:

Printer: Anycubic Kobra 2
Supports: No
Brim: Yes, separation gap of 1mm
Resolution: 0.2 \u2013 first layer: 0.2
Infill: 15%
Filament: PLA

Notes

These models and openscad source file can also be downloaded from github

","category":{"id":"29","path":[{"id":"3","name":"Household","nameEn":"Household","description":"Marvel at these impressive interior and exterior decors. Download print-in-place items, vases of various shapes, or geometrical lamps.","__typename":"CategoryType"},{"id":"29","name":"Office","nameEn":"Office","description":"Sitting behind the desk will be more comfortable with an adjustable stand for laptop, mobile, and documents. Improve your office with a pen holder or organizer.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2023-12-02T13:09:34.306674+00:00","firstPublish":"2023-12-02T13:03:04.680678+00:00","datePublished":"2023-12-02T13:09:34.288797+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"Customisable battery organizer done in openSCAD. Both the dimensions of the grid and the battery's can be changed.","likesCount":10,"makesCount":2,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":110,"displayCount":469,"filesCount":11,"privateCollectionsCount":10,"publicCollectionsCount":7,"pdfFilePath":"media/prints/667088/pdfs/667088-customisable-battery-organizer-for-aaaa-aaa-aa-c-d-18650-lr44-and-much-more-vase-mode-possible-b4576020-38cb-4afd-a35f-398774282eb4.pdf","commentCount":3,"userGcodeCount":0,"remixCount":0,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"2473424","filePath":"media/prints/667088/images/5249900_b5a2deb2-3b25-450c-97ec-015f38ff25b1_03533506-224d-456b-bb37-642217da4491/pxl_20231202_110604536-copy.jpg","rotation":0,"imageHash":"3OcFJgpPVRdWZojpp1LWTmSq3HqvjPc=","imageWidth":1774,"imageHeight":2243,"__typename":"PrintImageType"},"images":[{"id":"2473424","filePath":"media/prints/667088/images/5249900_b5a2deb2-3b25-450c-97ec-015f38ff25b1_03533506-224d-456b-bb37-642217da4491/pxl_20231202_110604536-copy.jpg","rotation":0,"imageHash":"3OcFJgpPVRdWZojpp1LWTmSq3HqvjPc=","imageWidth":1774,"imageHeight":2243,"__typename":"PrintImageType"},{"id":"2473415","filePath":"media/prints/667088/images/5249879_19568b3e-1fe2-4eb1-a8ed-a19b66b7414c_3c835c96-597c-4c16-8880-c0aa1096b634/pxl_20231202_110543415-copy.jpg","rotation":0,"imageHash":"2SgKHQKamoSE55cFpnyFiCaLYLII","imageWidth":1152,"imageHeight":1743,"__typename":"PrintImageType"},{"id":"2473425","filePath":"media/prints/667088/images/5249901_6a3dba96-096a-4425-a395-7c4c5d72ed5a_8b78cde8-497d-444d-b5c9-19107af782cb/pxl_20231202_110552803-copy.jpg","rotation":0,"imageHash":"FikKLQSOh3WEhsUnh49lmDiJgIMH","imageWidth":958,"imageHeight":1450,"__typename":"PrintImageType"}],"imagesCount":3,"tags":[{"name":"vase","id":"26","__typename":"TagType"},{"name":"box","id":"65","__typename":"TagType"},{"name":"organizer","id":"66","__typename":"TagType"},{"name":"organiser","id":"207","__typename":"TagType"},{"name":"battery","id":"1973","__typename":"TagType"},{"name":"customizable","id":"1978","__typename":"TagType"},{"name":"vasemode","id":"2694","__typename":"TagType"},{"name":"openscad","id":"3633","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"2808326","filePreviewPath":"media/prints/667088/stls/5249819_f7759ca9-0e79-489d-b94c-9e3d1296f07c_dc05cae3-9dec-4505-9089-6d52b667b300/battery_organizer_aa_3x3_preview.png","__typename":"STLType"},"license":{"id":"2","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"easyprintProjects":[],"__typename":"PrintType","eligibleForNomination":false,"priceBeforeSale":null,"user":{"id":"1061020","handle":"LonelyCowboy_1061020","verified":false,"dateVerified":null,"publicUsername":"LonelyCowboy","avatarFilePath":"media/auth/7b2a97cb-1762-4b63-87a9-fcfb76adaf0b.png","badgesProfileLevel":{"profileLevel":15,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"isHiddenForMe":false,"canBeFollowed":true,"billingAccountType":"personal","lowestTierPrice":null,"designer":false,"stripeAccountActive":null,"membership":null},"contests":[],"contestsResults":[],"prusameterPoints":null,"latestContestResult":null,"referencingArticles":[]}}}

Customisable battery organizer for AAAA, AAA, AA, C, D, 18650, LR44 and much more (Vase mode possible)
