Nikko Lobo 2 Front A-Arm 1:14 R/C Buggy

Nikko Lobo 2 ( Sears Lobo II 7.2v) Front Suspension Arms

These are the Front A-Arms for the Sears Lobo II made by NIKKO.  They fit other Nikko 1/14 Scale buggies that use the same chassis.  PLA is fine for display or a quick run around the yard, but something stronger would be advised for long term use.

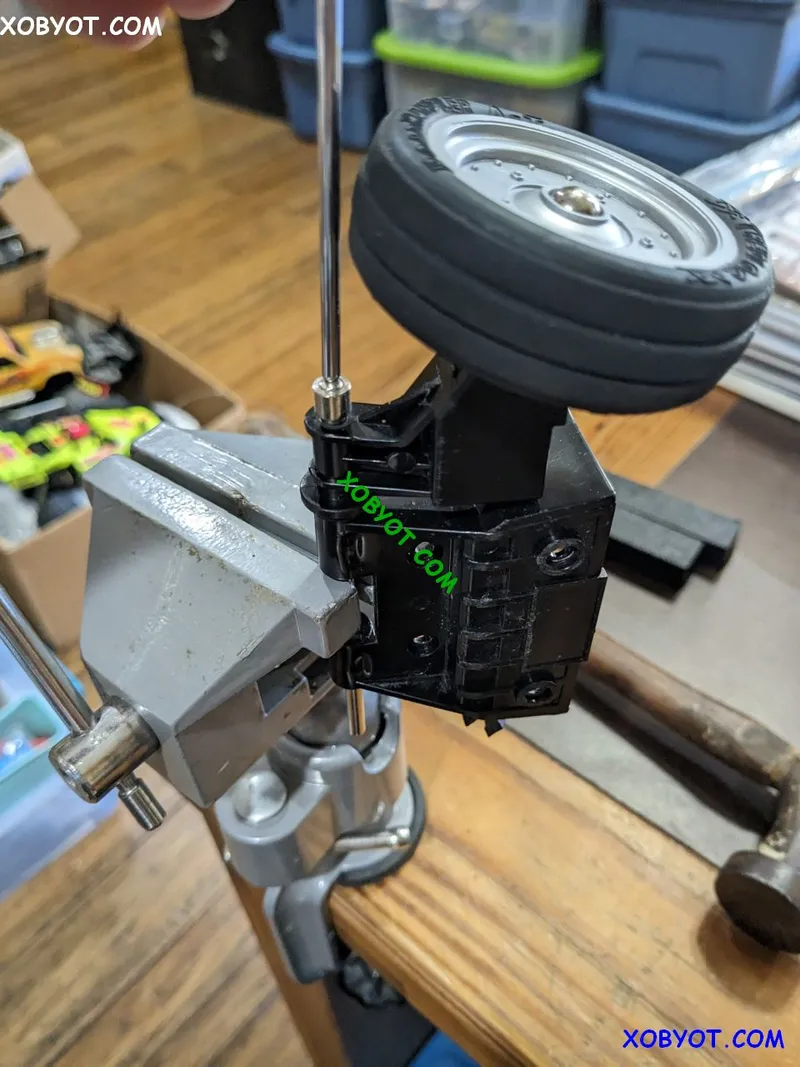

• Removal: The pivot pin nut is pressed on. To remove, I put it in a vice and used a smaller diameter pin to drive it out with a hammer.  The pivot pin is 4mm, so I used a 3mm pin.  You can use an Hex / Allen Key or similar.
• Install: Place the opposite side on something solid, and hammer away.  ;)
• I think these only fit the Lobo 2. The one that takes 7.2v NiCad Pack and is 1/14 Scale.
• NOT for Nikko Lobo Black Fox, which take AA Batteries.  They look similar, but the front Arms are not the same.
• Also Not for Nikko 1/10 Scale F10 Buggies.
