{"data":{"model":{"id":"661302","slug":"sovol-sv06-clip-on-bowden-guide","name":"Sovol SV06 Clip-On Bowden Guide","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":2,"description":"

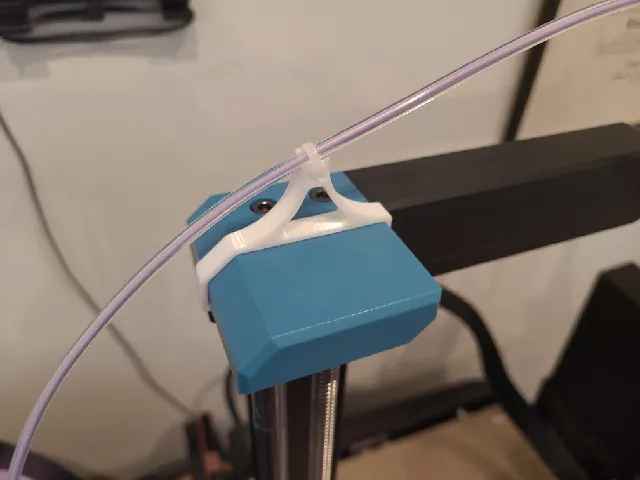

This filament guide is a fast (~10 minute) print that uses barely any material (~3 grams). It clips onto either side of the top of your SV06 (and maybe SV06+, but I haven't tried), and helps guide a Bowden tube to your extruder.

Just print, add a zip tie, clip it to the printer and you're set! Clips to either side of the printer.

I printed mine in PETG for flexibility and strength:

0.2mm layer height
2 perimeters on a 0.4mm nozzle
3 top and bottom layers
15% grid infill
No supports are necessary, just print it laying on its side

STEP file included!

","category":{"id":"2","path":[{"id":"1","name":"3D Printers","nameEn":"3D Printers","description":"Upgrading and improving your 3D printer couldn't be easier - no matter whether you're looking for functional or aesthetic modifications. Discover the best improvements.","__typename":"CategoryType"},{"id":"2","name":"Other Printer Parts & Upgrades","nameEn":"Other Printer Parts & Upgrades","description":"Customize your 3D printer with hundreds of enhancements! Download spool holders, camera mounts, LCD covers, fan shrouds and even the Lack enclosure!","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2024-04-22T22:10:27.291015+00:00","firstPublish":"2023-11-27T05:47:18.090261+00:00","datePublished":"2024-04-22T22:10:27.275113+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"Guides a PTFE Bowden Tube to the extruder from a drybox or off-printer spool.","likesCount":25,"makesCount":2,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":153,"displayCount":734,"filesCount":2,"privateCollectionsCount":31,"publicCollectionsCount":17,"pdfFilePath":"media/prints/661302/pdfs/661302-sovol-sv06-clip-on-bowden-guide-9b2eefb6-6b6c-4afb-ba15-b83cbbe7b35e.pdf","commentCount":3,"userGcodeCount":0,"remixCount":2,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"3058732","filePath":"media/prints/661302/images/6568611_5b019cba-863c-421e-a0c6-46efdeddc537_610d6a1b-f0d9-4b1f-8841-213ce476084f/pxl_20240422_200947909.jpg","rotation":0,"imageHash":"YQgKDQCfSG2GaXiIh3aHiKk/C1fQ","imageWidth":3072,"imageHeight":4080,"__typename":"PrintImageType"},"images":[{"id":"3058732","filePath":"media/prints/661302/images/6568611_5b019cba-863c-421e-a0c6-46efdeddc537_610d6a1b-f0d9-4b1f-8841-213ce476084f/pxl_20240422_200947909.jpg","rotation":0,"imageHash":"YQgKDQCfSG2GaXiIh3aHiKk/C1fQ","imageWidth":3072,"imageHeight":4080,"__typename":"PrintImageType"},{"id":"3058730","filePath":"media/prints/661302/images/6568607_4a429a77-80c1-4e91-b889-9556f33efdec_9e54d198-4cfc-4a46-9dee-ad6bb130d8b4/pxl_20240422_200832124.jpg","rotation":0,"imageHash":"XAgKFQJ8ep9nh4dodoiHaGCuCHZ5","imageWidth":3072,"imageHeight":4080,"__typename":"PrintImageType"},{"id":"3058733","filePath":"media/prints/661302/images/6568612_20588a24-f4b6-41ab-85d9-e4a6c43b62c2_08702456-3961-4f0c-b761-e69b38ea5fd5/pxl_20240422_200944919.jpg","rotation":0,"imageHash":"YfgRDQCWd4+GeJZHanmId7Z/O734","imageWidth":3072,"imageHeight":4080,"__typename":"PrintImageType"}],"imagesCount":3,"tags":[{"name":"bowden","id":"3087","__typename":"TagType"},{"name":"sovol","id":"19062","__typename":"TagType"},{"name":"sv06","id":"111808","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"2785398","filePreviewPath":"media/prints/661302/stls/5209268_a2959e12-bea1-49ac-a167-d164f48a87c5_b8e12a78-2dac-463b-acdf-38a6b45363b5/sv06-filament-guide_preview.png","__typename":"STLType"},"license":{"id":"3","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"easyprintProjects":[],"__typename":"PrintType","eligibleForNomination":false,"priceBeforeSale":null,"user":{"id":"1384298","handle":"Brianne_1384298","verified":false,"dateVerified":null,"publicUsername":"Brianne","avatarFilePath":"media/auth/2f7b7cf7-2e66-4712-b0fe-1a09fb54e46e.jpg","badgesProfileLevel":{"profileLevel":22,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"isHiddenForMe":false,"canBeFollowed":true,"billingAccountType":"personal","lowestTierPrice":null,"designer":false,"stripeAccountActive":null,"membership":null},"contests":[],"contestsResults":[],"prusameterPoints":null,"latestContestResult":null,"referencingArticles":[]}}}

Sovol SV06 Clip-On Bowden Guide
