The Vault

Materials used:
Prusament PETG Prusa Orange
Prusament PETG Jet Black
Prusament PETG Anthracite Grey

Printing Time:
44hours

Visible orange parts:
900172
900177
910427
910429
900173
900170
910439
900168


Special thanks for all the makes so far!:
https://www.tiktok.com/@eddythewizard/video/7315193034222636321?is_from_webapp=1&sender_device=pc&web_id=7173419786897966598

23-04-205 - Changelog:

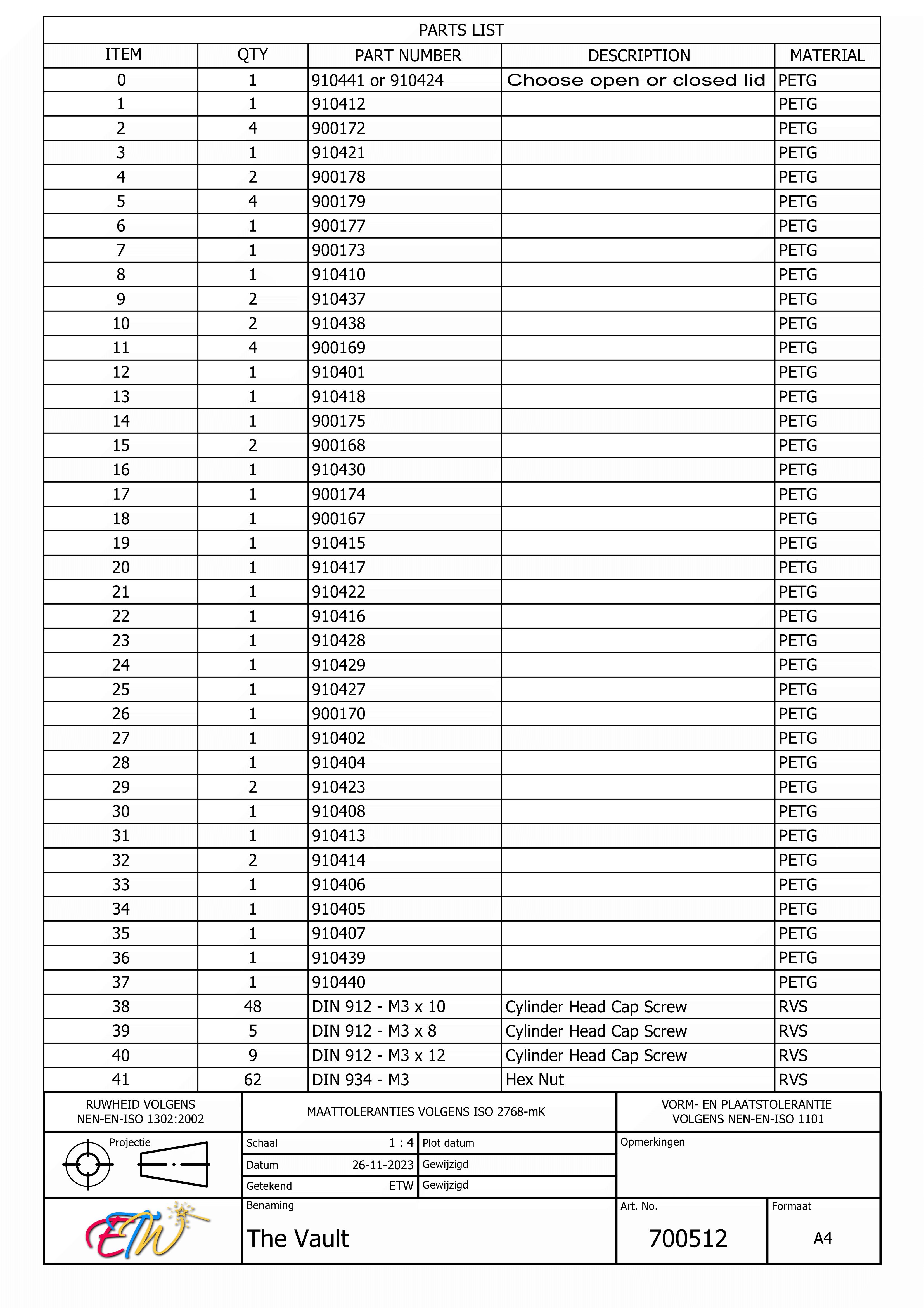

1. Updated 700512 partslist (added 910441/910424) *Choose open or closed lid.

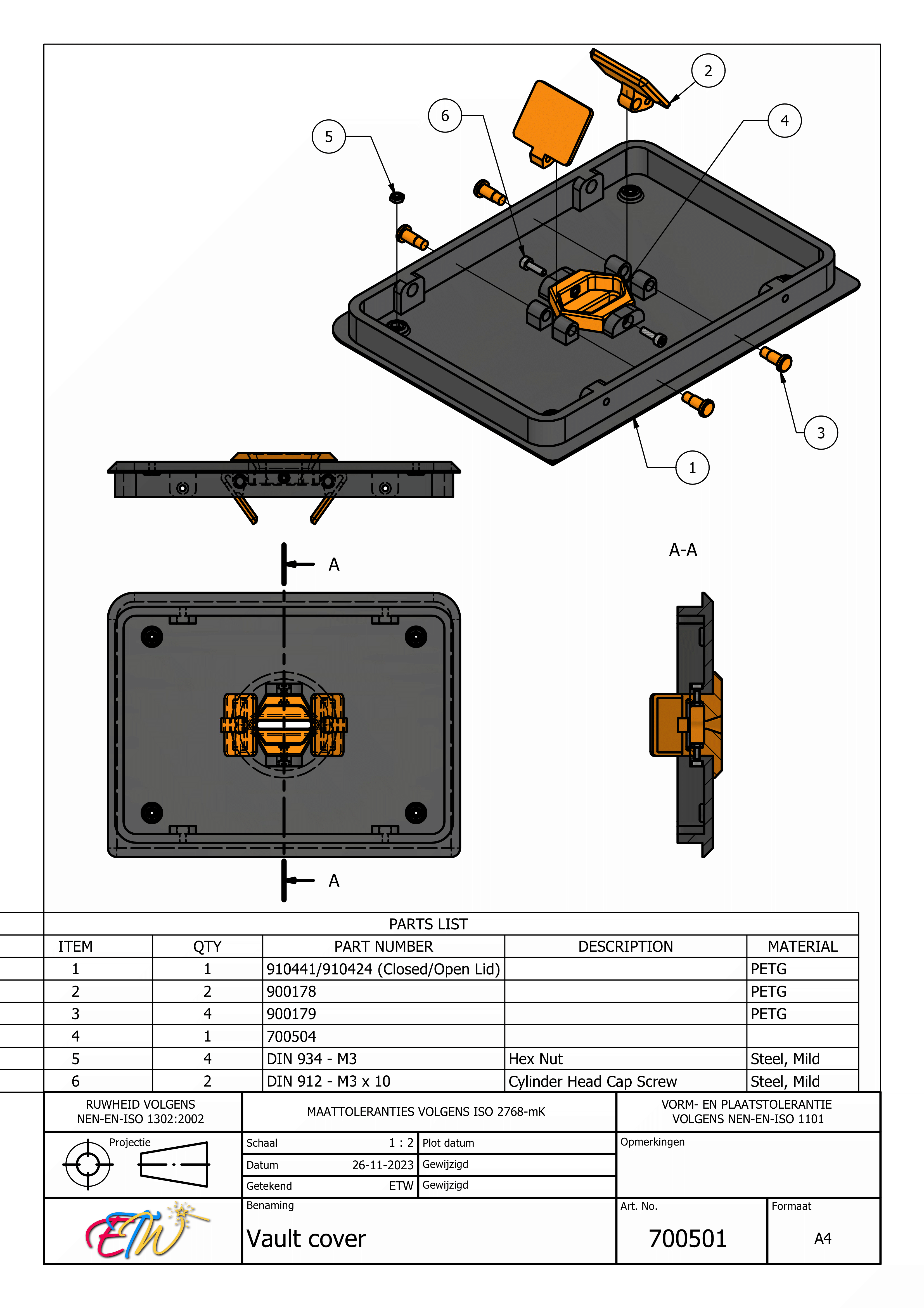

2. Updated 700501 partslist (added 910441/910424) *Choose open or closed lid.
3. Added a drawing for part 910440  (Used to reduce clearance between safe door/body

11-12-2023 -  Changelog :

1. Updated partslist. (removed 910441/910424) because of option for “open” or “closed” lid.
2. Uploaded part: 910441 closed lid (no coin hole).

13-12-2023 - Changelog:

1. Changed part: 910412  (New case design / Front bumper added)
2. Changed part: 900169 (Less clearance on the hinges)
3. Changed part: 910440 (Thickness from 0.8mm to 1.3mm)

1) The front bumper ensures that the 5 screws at the bottom of the door are no longer accessible once the door is closed. When loosening, the door has more play, which could cause money to be shaken out. Special thanks to Fredrossi046 for mentioning this little bug.
2) The adjustment to this part ensures that the door will sag no more.
3) The adjustment to this part ensures that the door fits tighter after closing.

15-12-2023: - Changelog:

1. Added drawing of top level assembly to indicate some parts that had not yet been assigned on a drawing.


16-12-2023: Changelog:

1. Added drawing for setting up a code.


Art. No. 700501:
I've been shaking this thing vigorously for quite a while now, but not a single coin has popped out yet. I guess I need more coins.

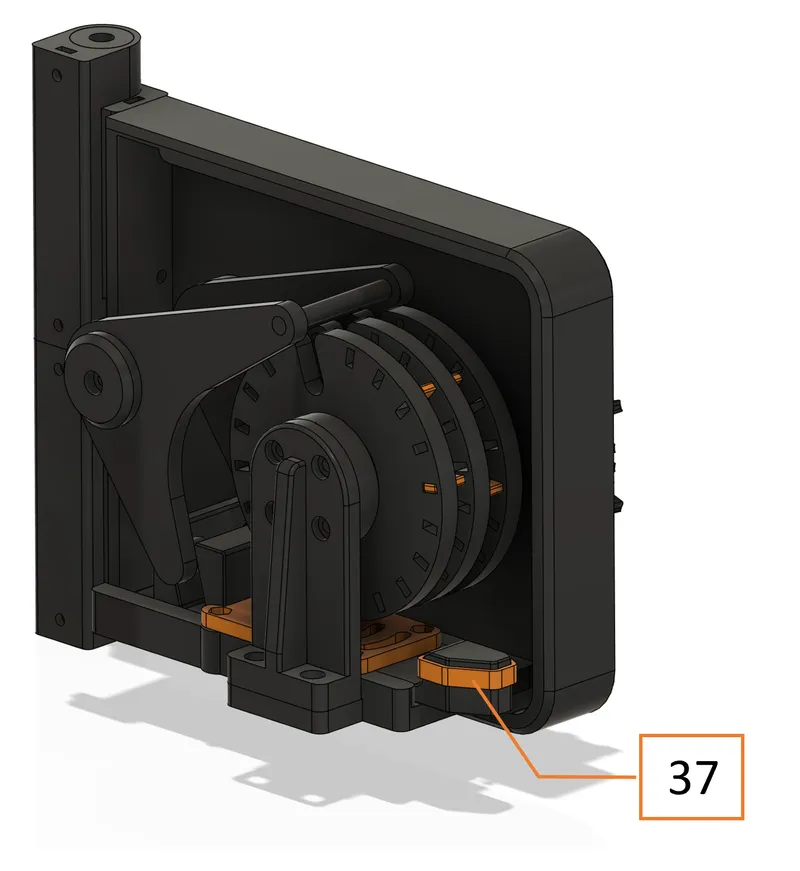

Part: 910440
You can use this part to reduce the clearance between the safe door and the body.
