Sovol SV06 Phaetus Dragonfly BMO & Sherpa mini Toolhead

I wanted to create a whole new toolhead using a phaetus dragonfly BMO. You can use the original linear bearings or change to sintered bronze bushings. It is necessary to change the original drive belt to a slightly longer one (~5cm longer should be enough).  I integrated two holes at the top of the main body where you can insert a zip-tie to organize the cables.

Materials:

• 2x small zip-ties
• longer drive belt
• phaetus dragonfly BMO
• Sherpa mini
• 1x 4020 radial fan
• 1x 3010 axial fan
• 2x bearings
• ca-glue (for attaching the name plate)
• 13x m3x5,7mm heat inserts
• 5x m3x40mm screws
• 4x m3x16mm screws
• (2x m3x10mm screws only if you use the BLS_clamp) → explanation following paragraph:

Parts to print:

You will need to print all attached models. If you use the original bed leveling sensor, you would need to remove the excess plastic that holds the thread/heat insert so the BLS_clamp would work properly. In my case though, I just simply glued the sensor into position with some hot glue. Both variants should work.

Assembly:

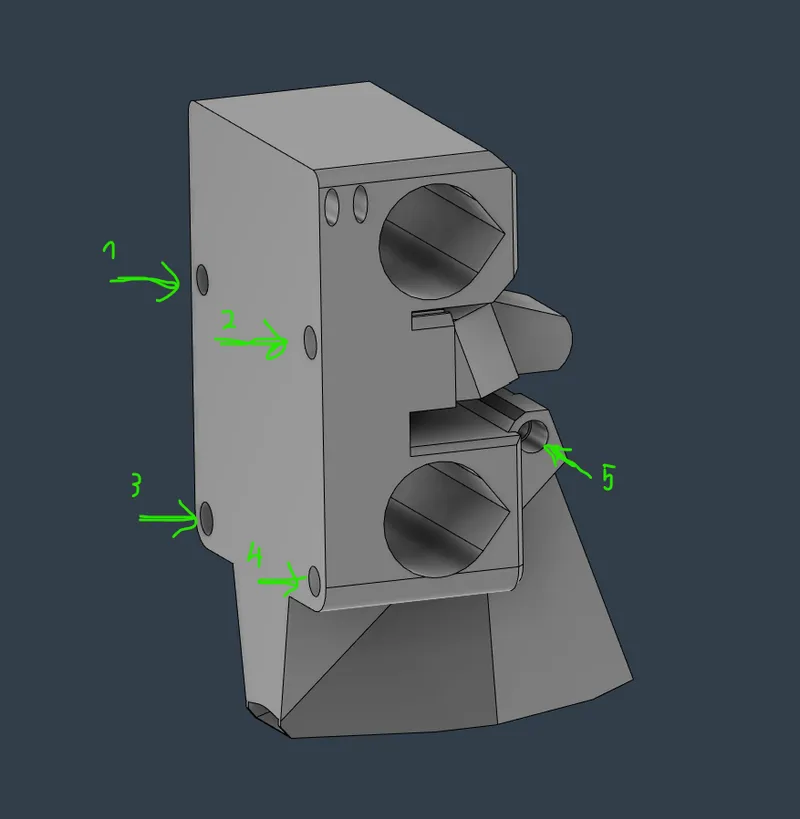

1. Insert 5 heat inserts into the main_body

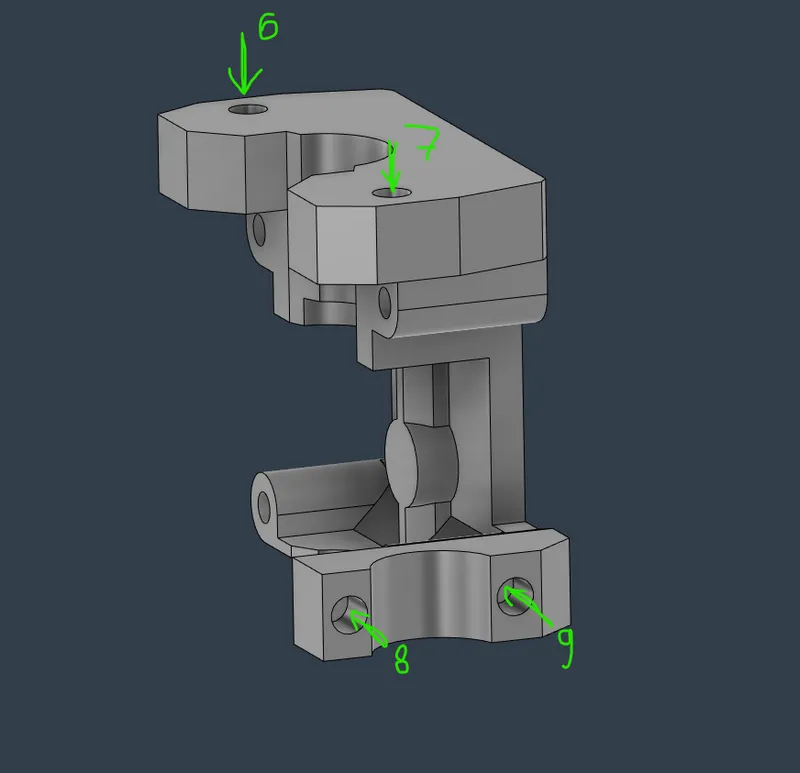

2. Insert 4 heat inserts into the hotend_mount

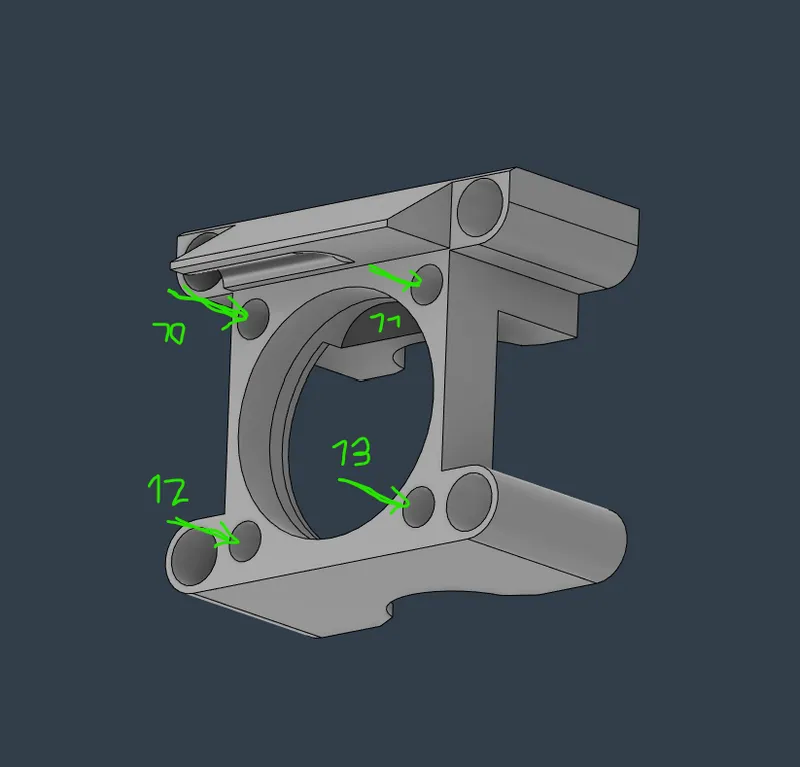

3. Insert 4 heat inserts into the fan_mount

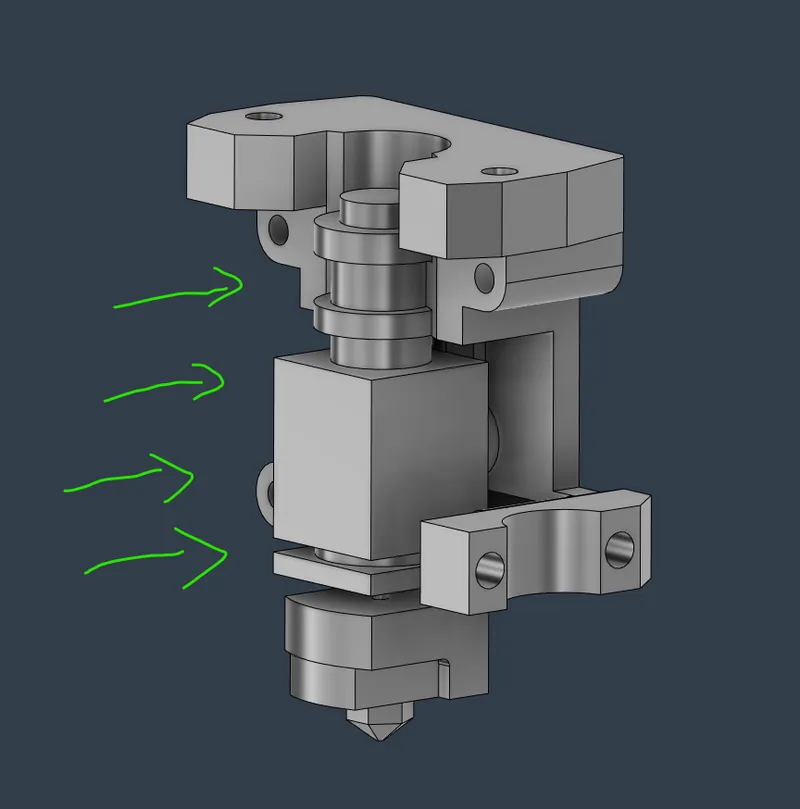

4. Insert the dragonfly BMO hot end into the hotend_mount

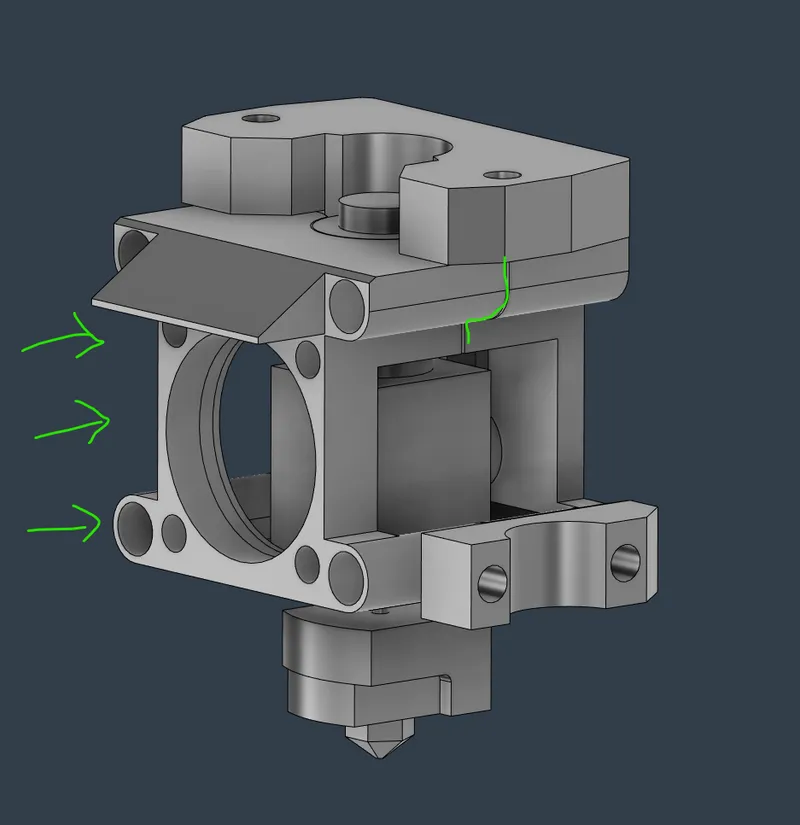

5. Attach the fan mount to the assembly from step 4 (use ca glue to attach the name plate, which isn't shown in the following picture)

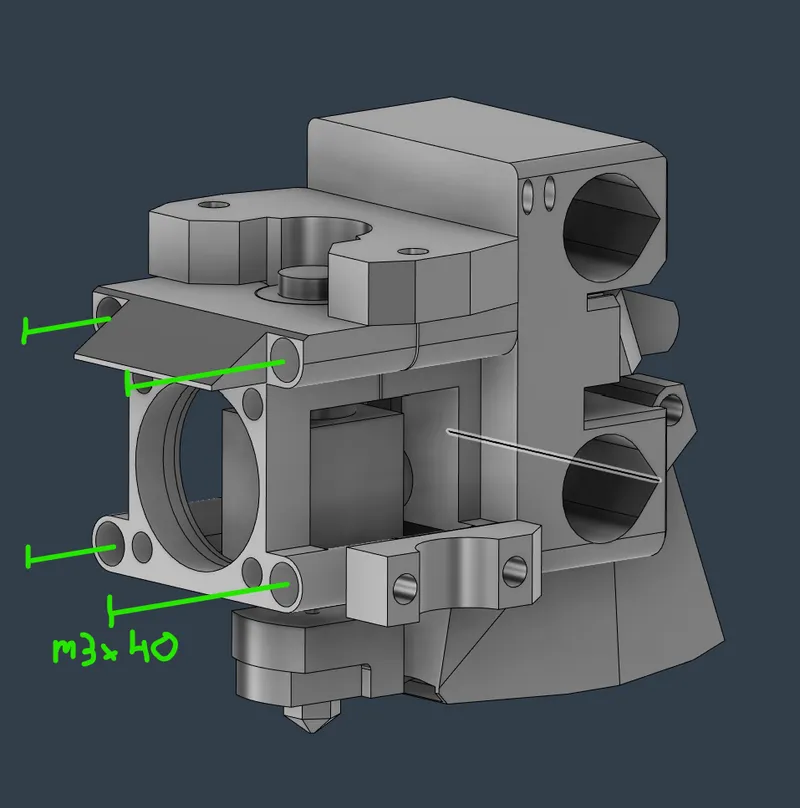

6. Lock the assembly from the steps before with 4 m3x40mm screws

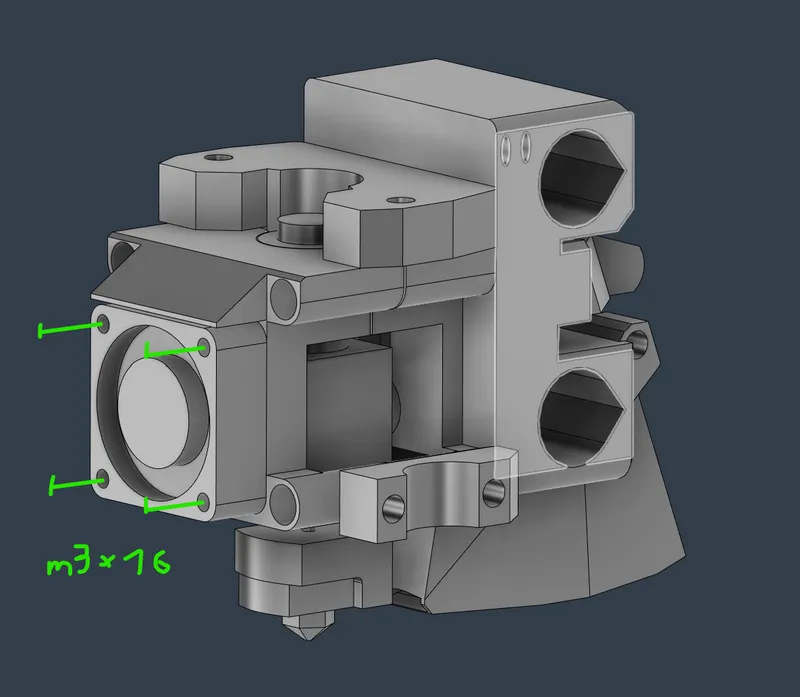

7.  Attach the 3010 axial fan to the fan_mount with 4 m3x16mm screws

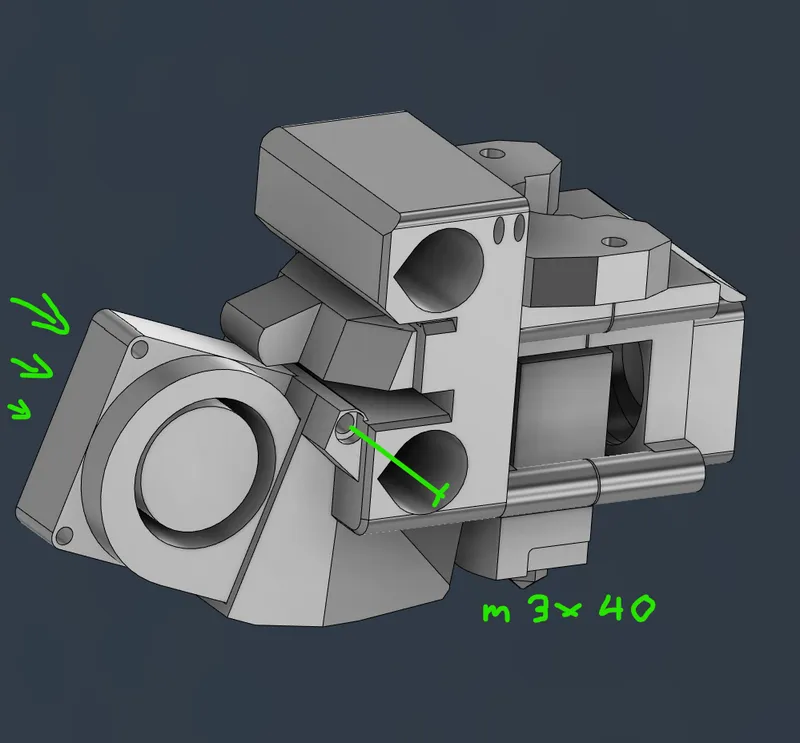

8. Insert the 4020 radial fan into the slot of the main_body and lock it with a m3x40mm screw

If the assembly is finished, you would just have to switch the x-carriage to your printed one. The drive belt can be simply pressed into the toothing of the main_body.
