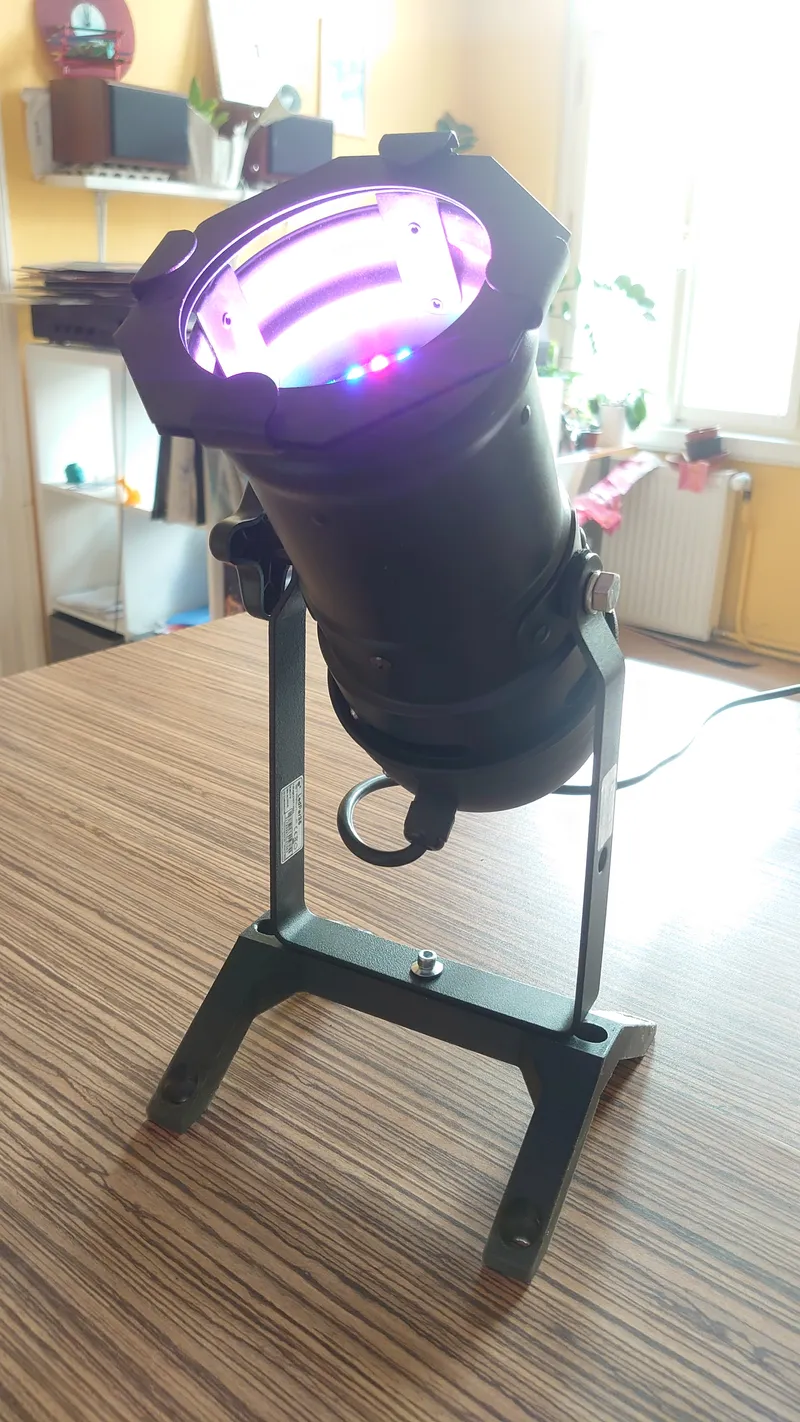

Multi-purpose Light Stand for Theatre Lights Stairville LED PAR 36

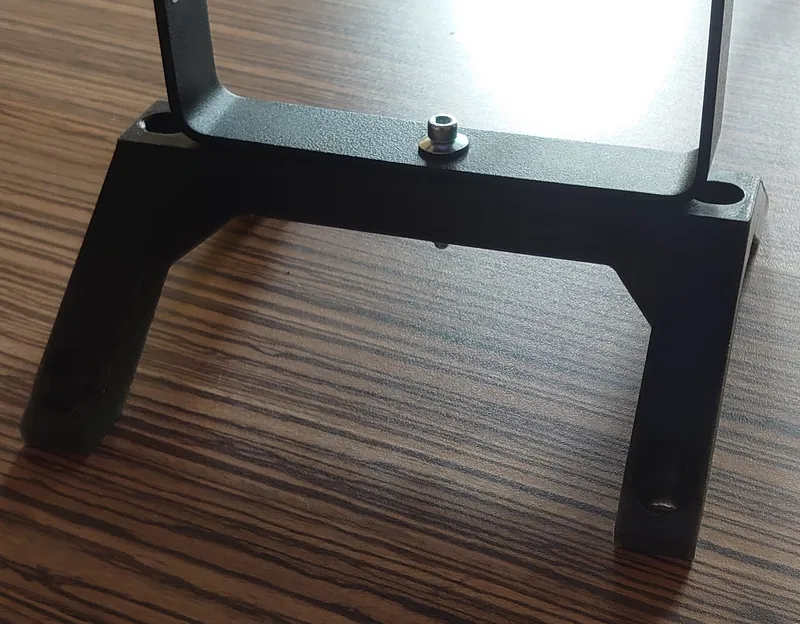

This desktop light stand is designed to be a stackable and portable solution for mounting Stairville LED PAR 36 theatre lights. It has two mounting options: one in the center of the top part of the holder and one on the side. This allows you to mount the light in the classical way through the center hole, but you can also attach two Stairville lights together and mount them together on one stand.

The stand is also compatible with many other standalone lights, not just the Stairville LED PAR 36. The mounting hole diameter is 10mm.

The stand is stackable, so if you need to have more stands, they can be stored together in a space-efficient way.

The stand can be mounted on columns with nylon straps or duct tape to provide a sturdy base for the light in improvised conditions.

Printing tips

The design also allows for printing without supports up to a layer resolution of 0.35mm.

The print is optimized for the Prusa Mini printer.

Material is up to your choice, such as popular PLA or PETG.

Infill 15% GRID.

Mouting

Use bolt M10x35mm or smaller diameter with washer.

Support me

"If you dig what I'm creating and want to support the journey, consider fueling my creativity with a virtual coffee! Your support goes a long way in helping me continue pushing the boundaries of 3D printables. Want to Buy Me a Coffee?

Enjoy your Desktop Light Stand and let me know, if you make one for yourself!

Designed with Autodesk Fusion 360 Personal
