Heat insert press with optional lasers

Bellow you will find the list of materials and the assembly instructions.

Bill of materials

Here is the BOM with links:

• 230gr of Transparent PETG - Geeetech $12 per 1kg spool

• 5  ⨉ 100mm 2020 Aluminum Profile - $5 per 4pcs

• 1   ⨉ 300mm 2020 Aluminum Profile - $5

• 7   ⨉ 2020 aluminum corner fitting - $3 for 20pcs

• 18 ⨉ 2020 T Sliding Nut - 1$ for 10pcs

• 1   ⨉  V -gantry plate set special slide plate pulley for 2020 - $6

• 14 ⨉ M3 Flat Washer DIN 9021 - $3 for 20pcs

• 5  ⨉ M3 square nuts - $1 for 50pcs

• 21 ⨉ M3 10mm hex socket head cap allen bolt screw - $1 for 50pcs

• 10   ⨉ M3 16mm hex socket head cap allen bolt screw - $3 for 50pcs

• 3   ⨉ Steel dual hook 60mm tension spring - $4 for 10pcs

• 6  ⨉  M3 heat inserts - $4 per 100pcs

• 2  ⨉ line lasers module (5V, 12mm diam) - $4.5 for 2

• 1   ⨉ CJMCU Micro USB Board Power Adapter board 5V - $2

• 1   ⨉ micro USB cable  with magnet - $2

• 14 ⨉ M4 heat inserts - $3 for 50pcs

I recommend :

• 1   ⨉ 90W constant temperature electric soldering iron 180~480 - $14

• 1   ⨉ toaiot M4 Heat insert nut soldering iron tips - $4 per lot

Assembly steps

After getting the materials listed above and printing the parts (0.3 layer height, 250% speed [I have $2 cht nozzle], no supports, PETG or some higher temperature plastic), here are the assembly instructions (please read them all before assembly):

• using a 4mm drill, clear the holes for M3 inserts:

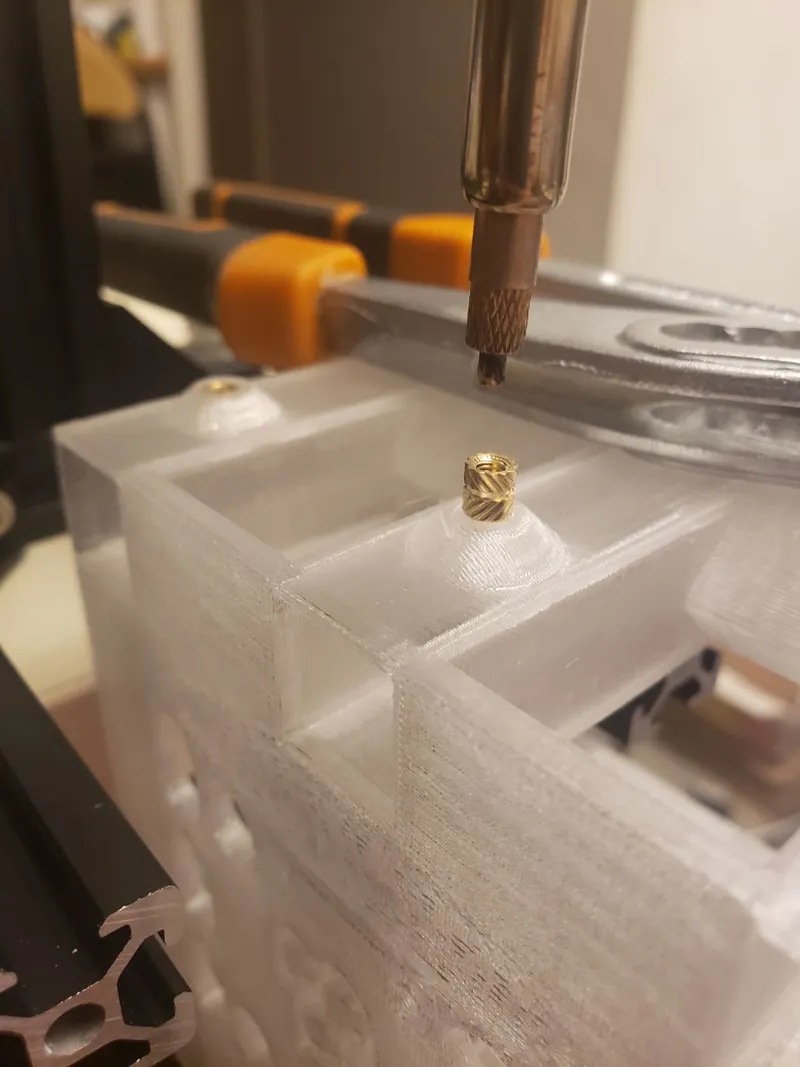

• using the soldering iron, press each of the 6 threaded insert into its hole. Do not press to much, the insert must not exit into the arm hole

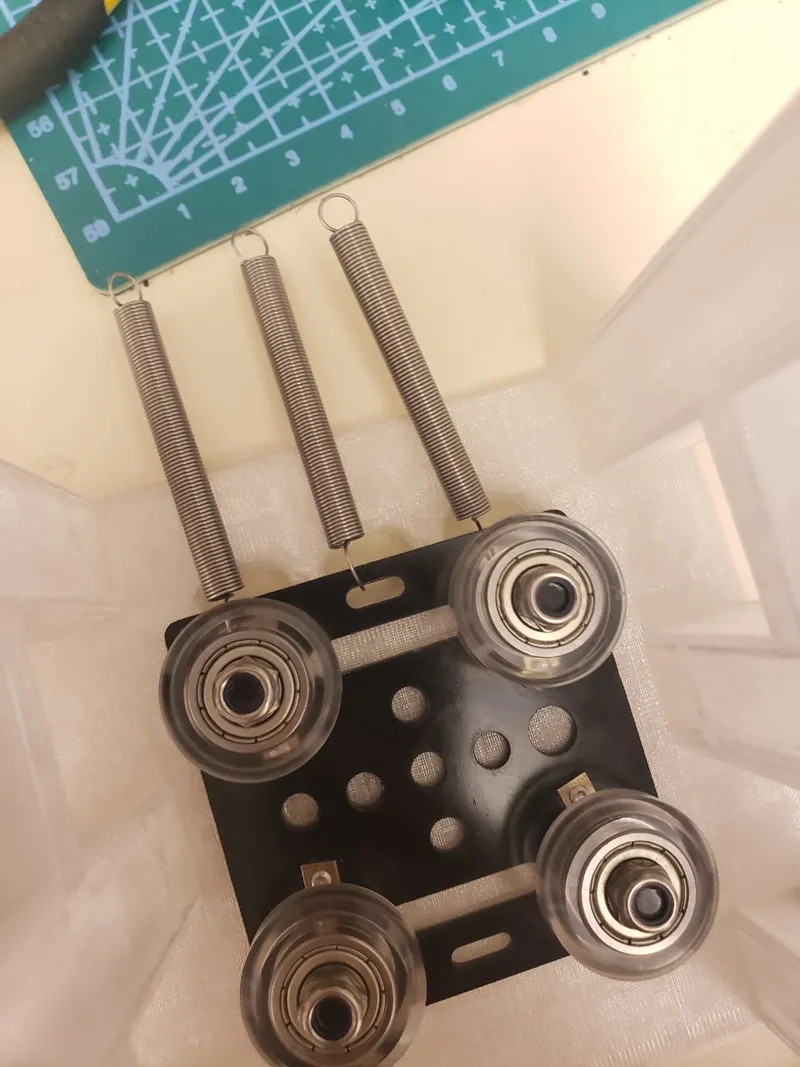

• prepare the V -gantry plate, 3 springs,  4 M3 10mm screws and 4 square nuts:

• put the gantry on the printed part and manually insert and rotate one screw from below:

• manually rotate the screw until is about to get above the gantry:

• place a square nut above the screw and rotate it until it catches it

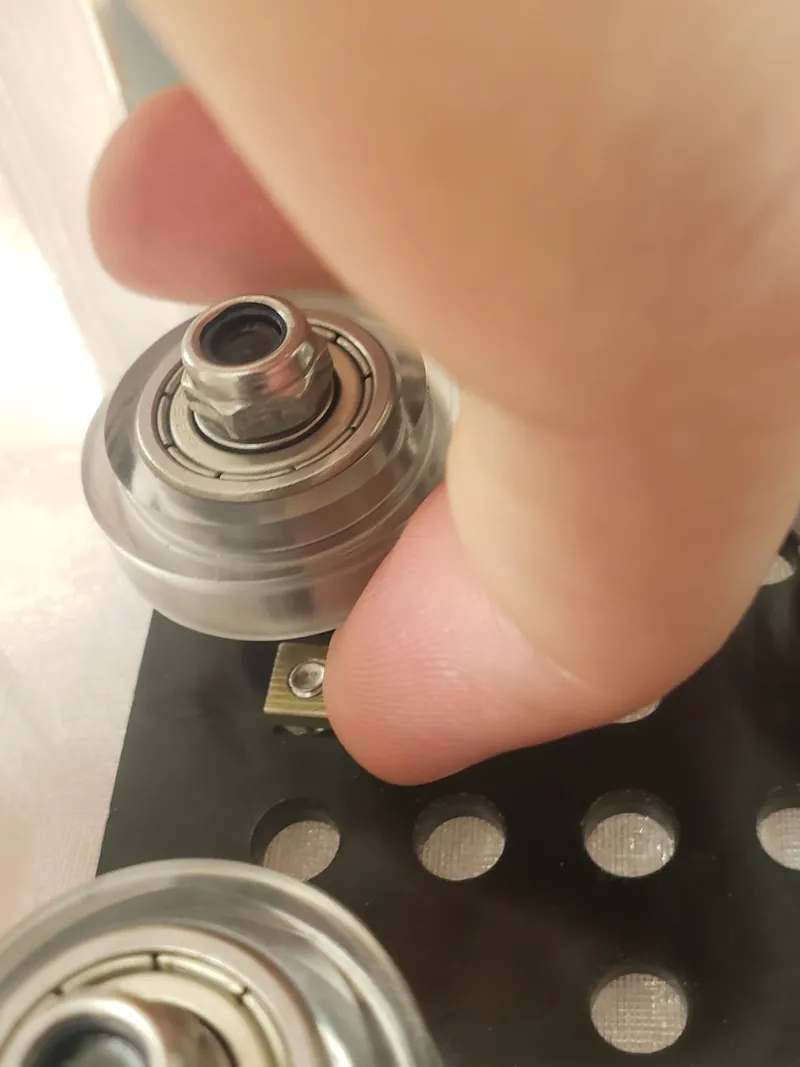

• use a finger to help the nut and screw tighten (continue to manually rotate from bellow):

• repeat for the other 3 screws:

• tighten the screws using an allen key:

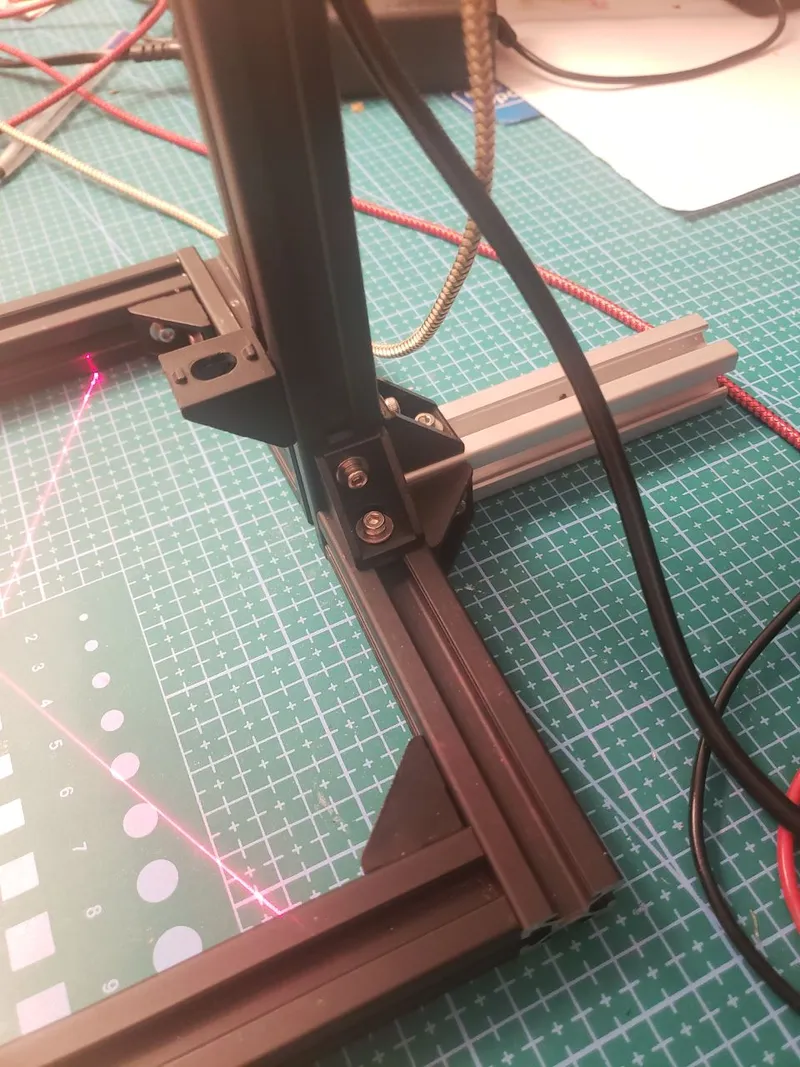

• construct the aluminium frame, using the five 100mm bars  as base (horizontal) and the 300mm (vertical). Each  corner fitting uses two T-nuts, two M3 10mm screws and two washers.
  To act as stopper you can use one M3 16mm screw and a T-nut. Alternative you put one corner fitting on the front of the vertical bar to act as stopper (just one T-nut and one M3 10mm screw with a washer):


• insert the carriage onto the vertical bar

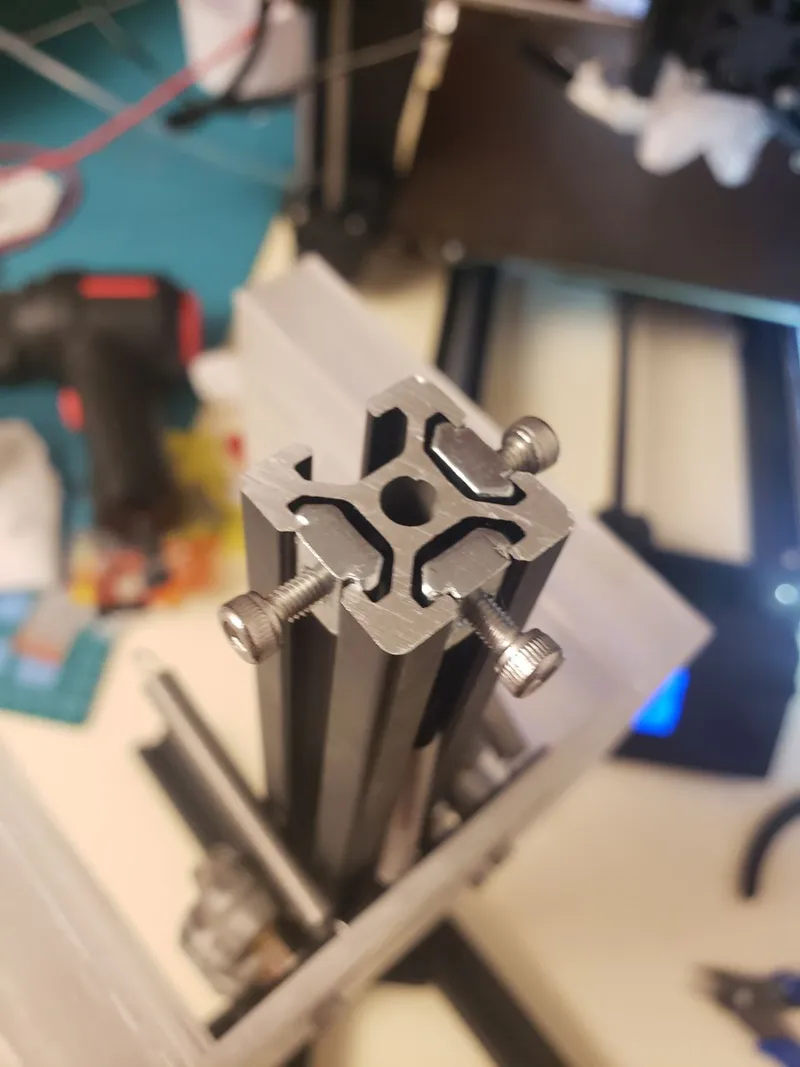

• place three M3 10mm screws and three T-nuts at the top of the vertical bar:

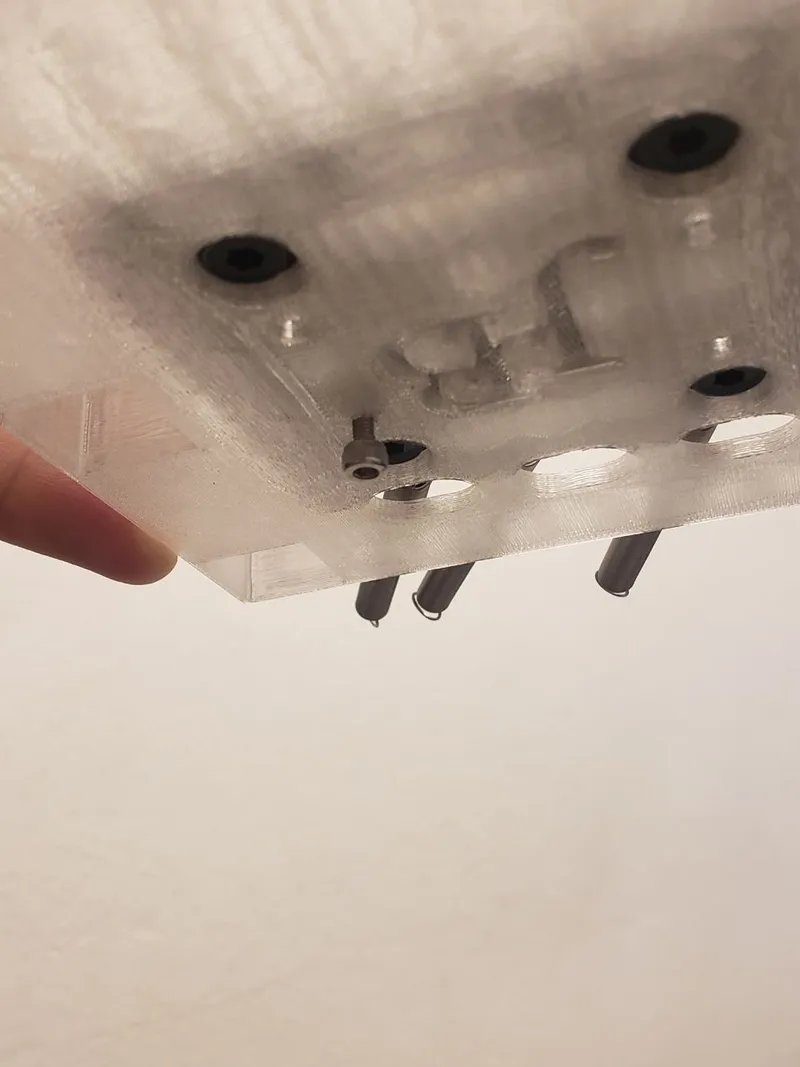

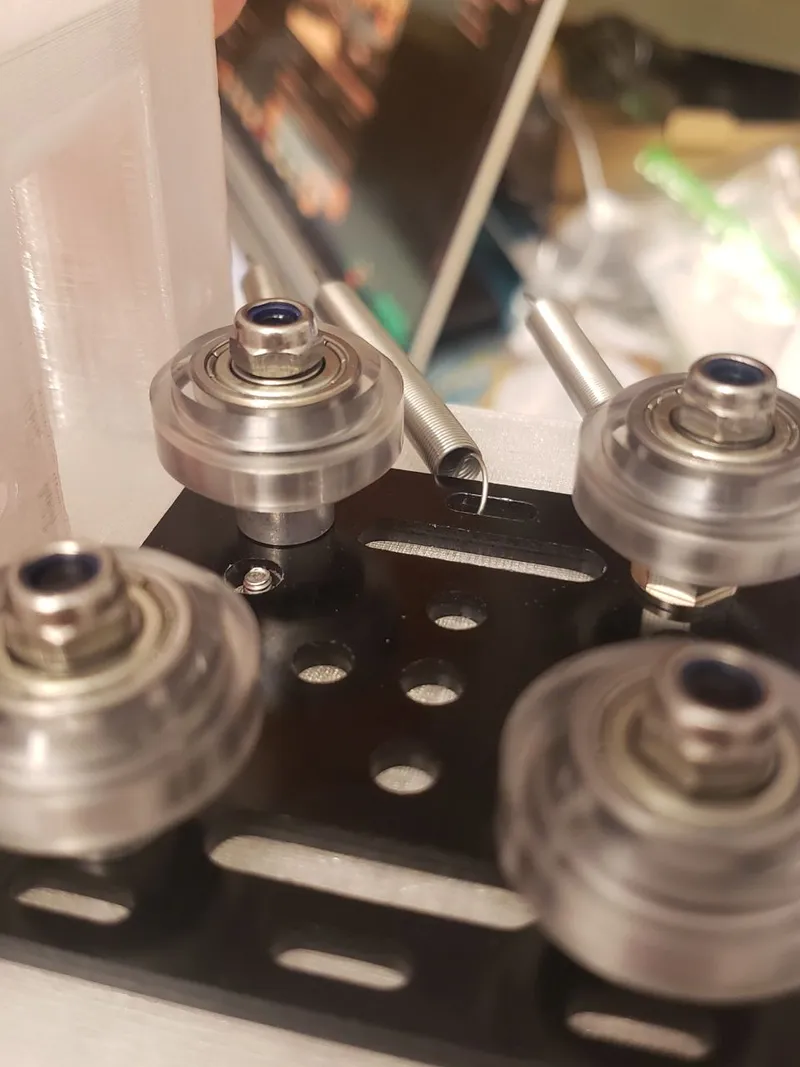

• put the springs on the m3 top screws:

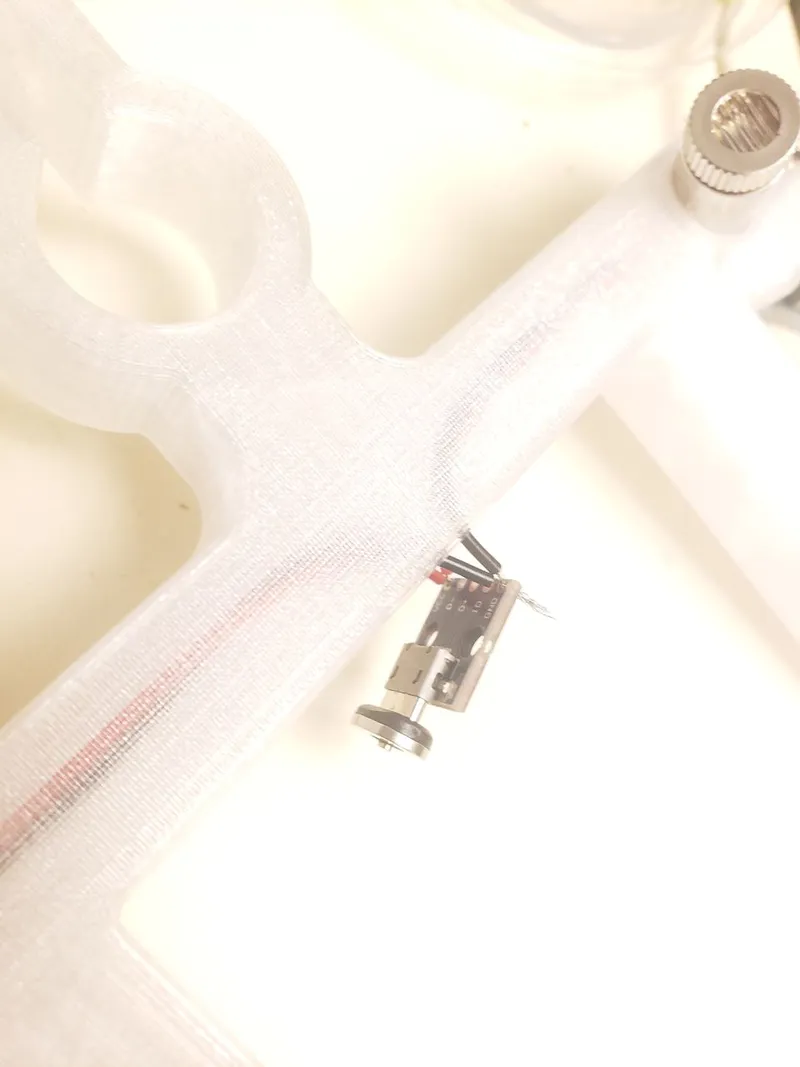

• install the lasers modules on the bottom arm (use a screwdriver if necessary):

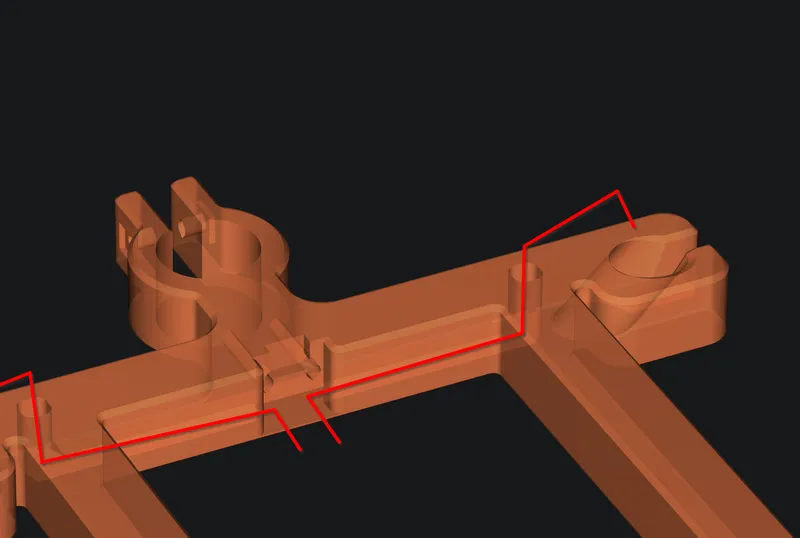

• insert the wires of the lasers modules into the top channel and drive it inside until it exits in the middle:

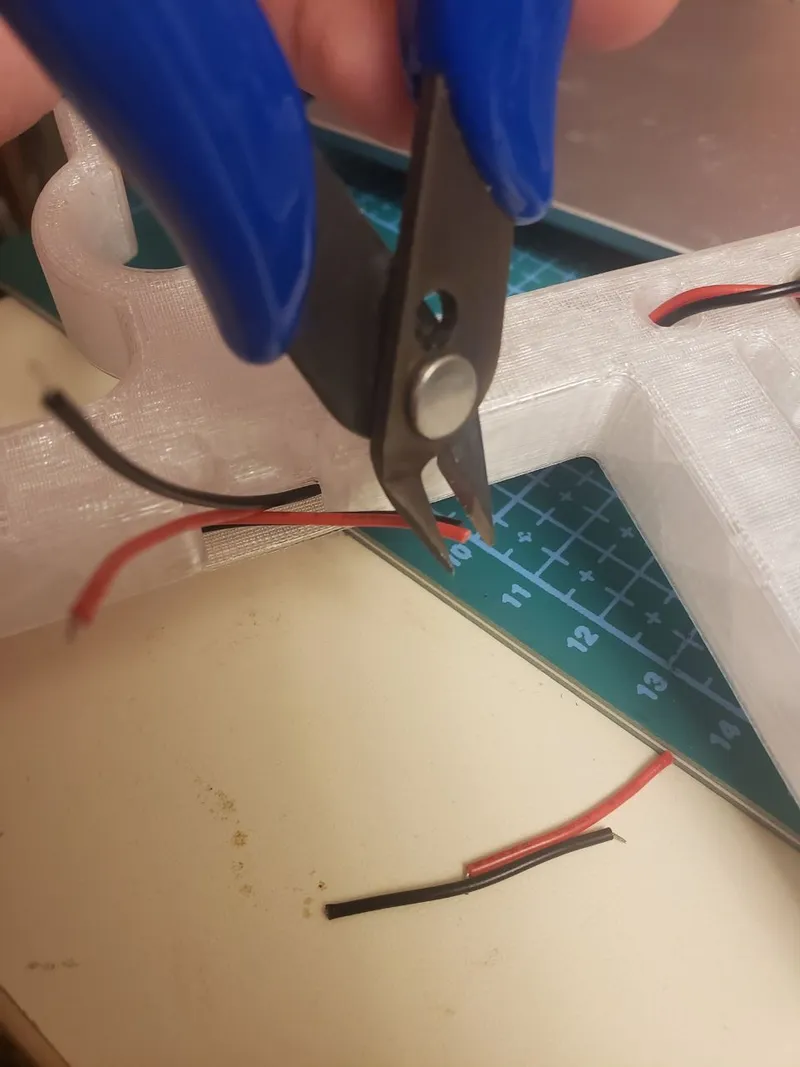

• cut the excess wires (be careful not to cut too much):

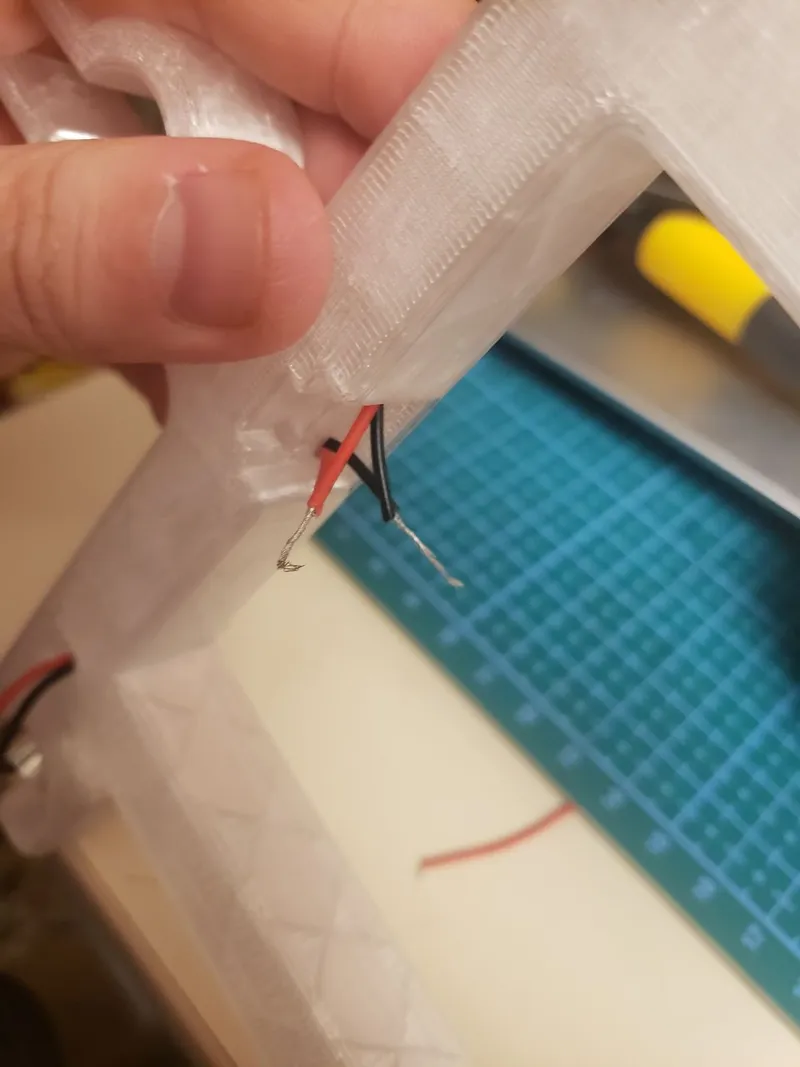

•  strip the wires and join them by color:

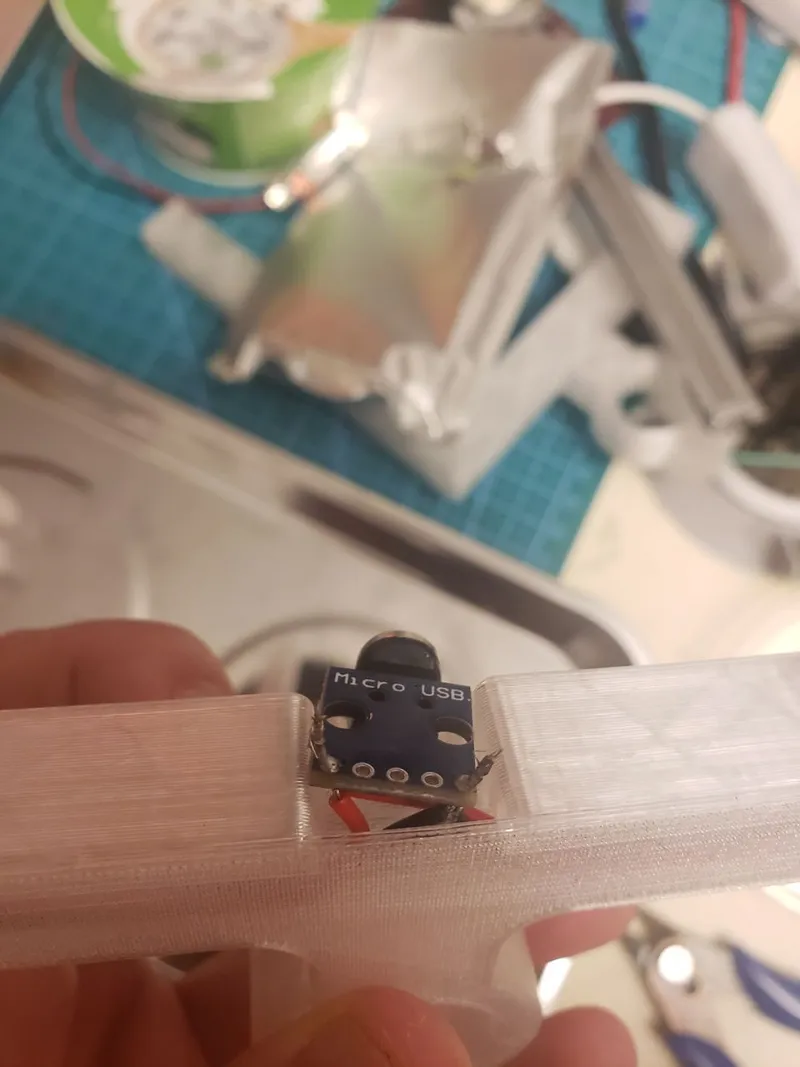

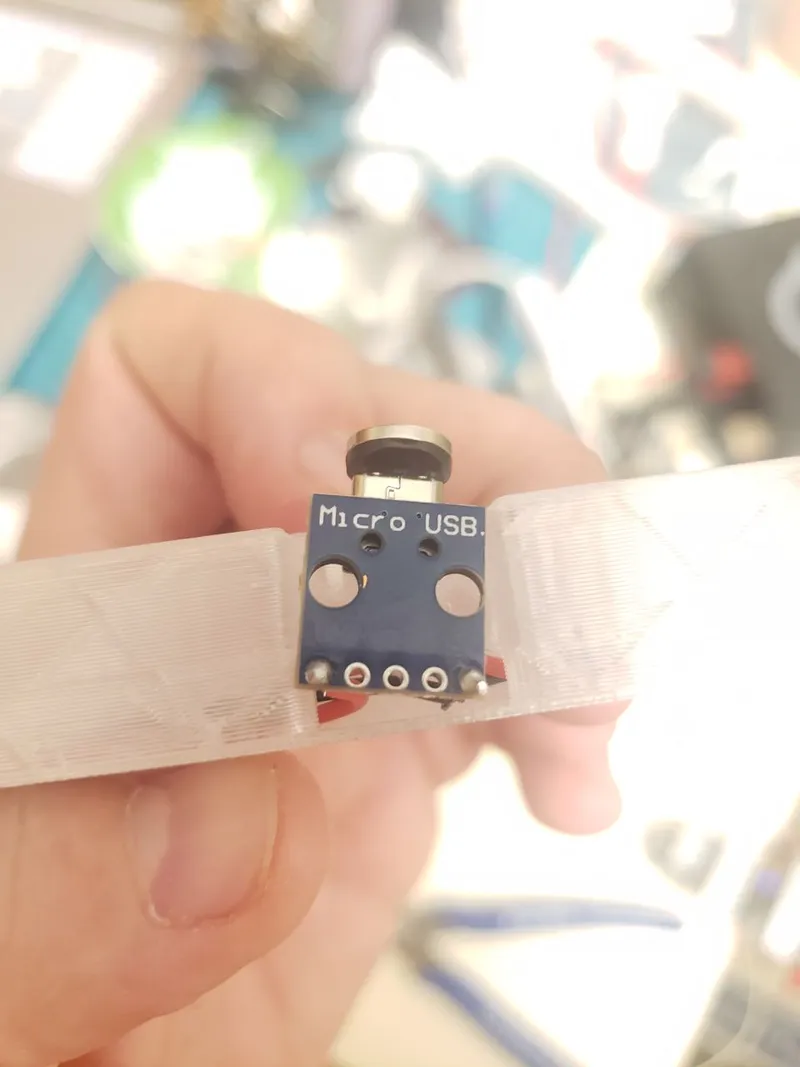

• insert the wires into the micro usb module (the black should go to the GND hole):

• solder the wire to the usb module and the cut the excess:

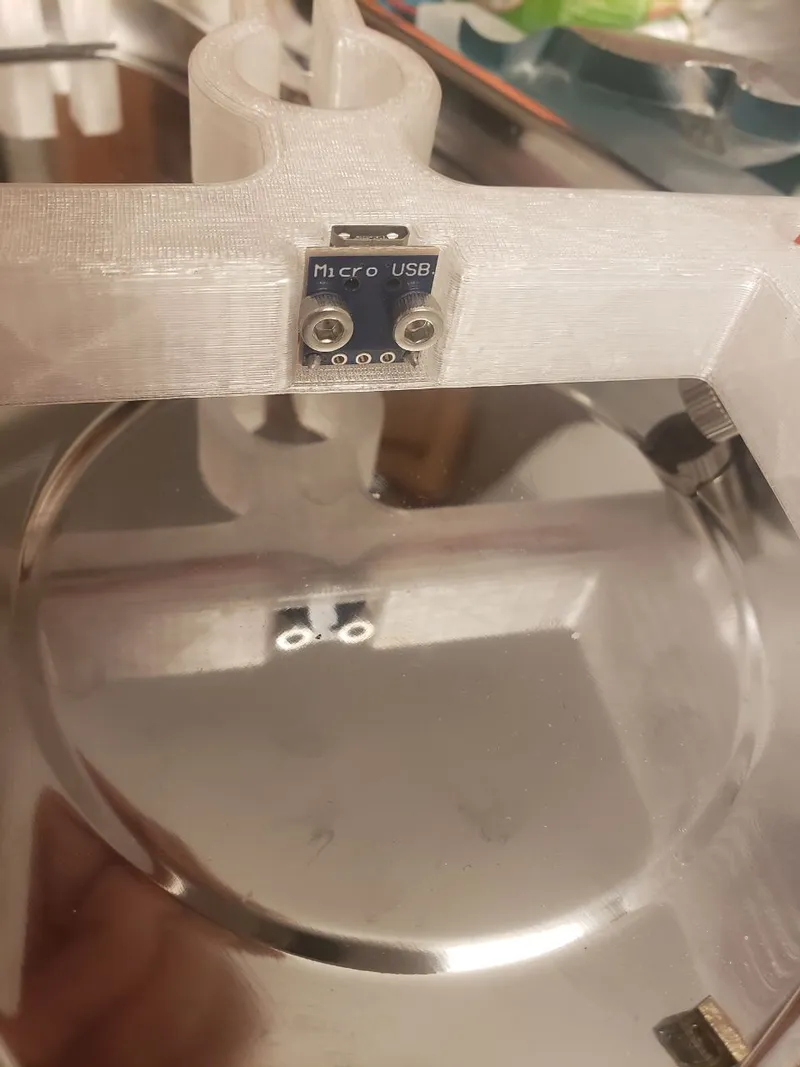

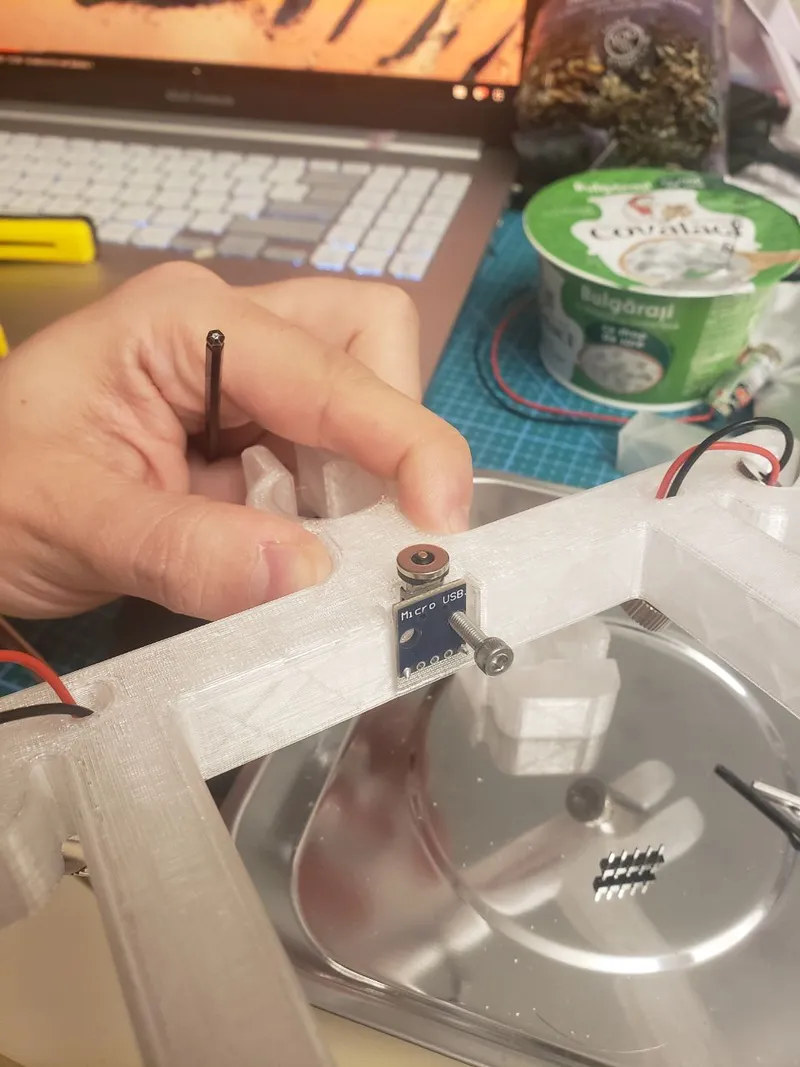

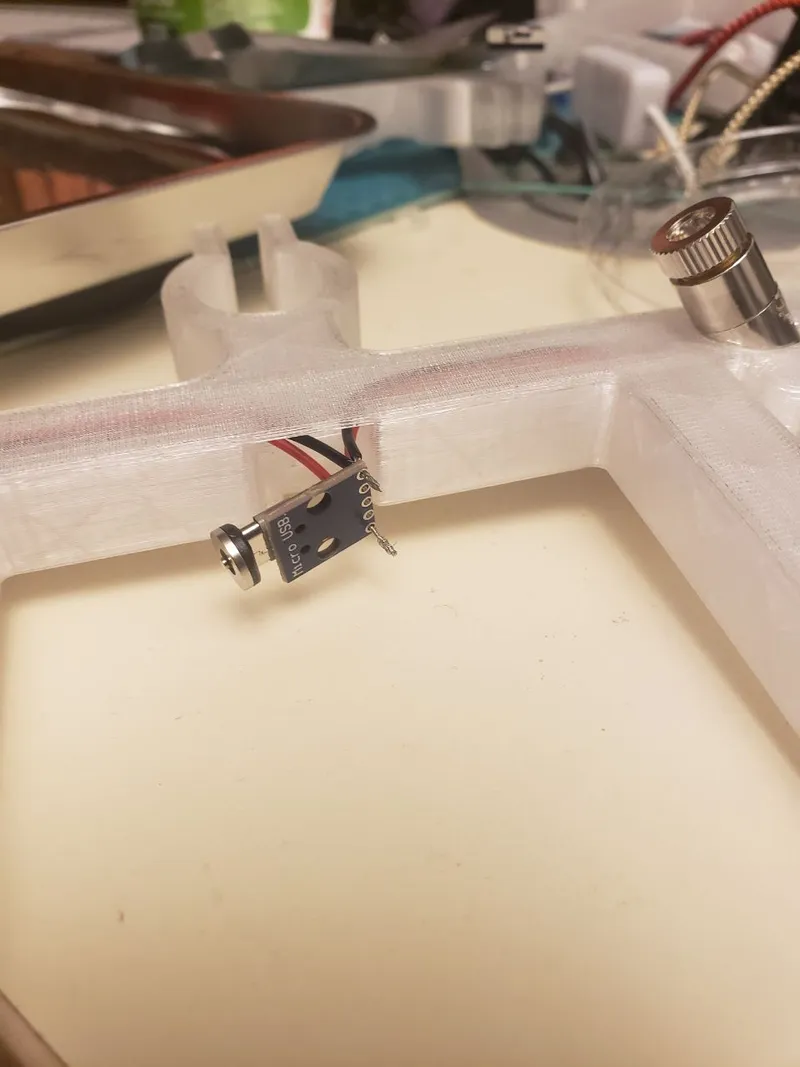

• using two M3 16mm screws secure the usb module to the arm:

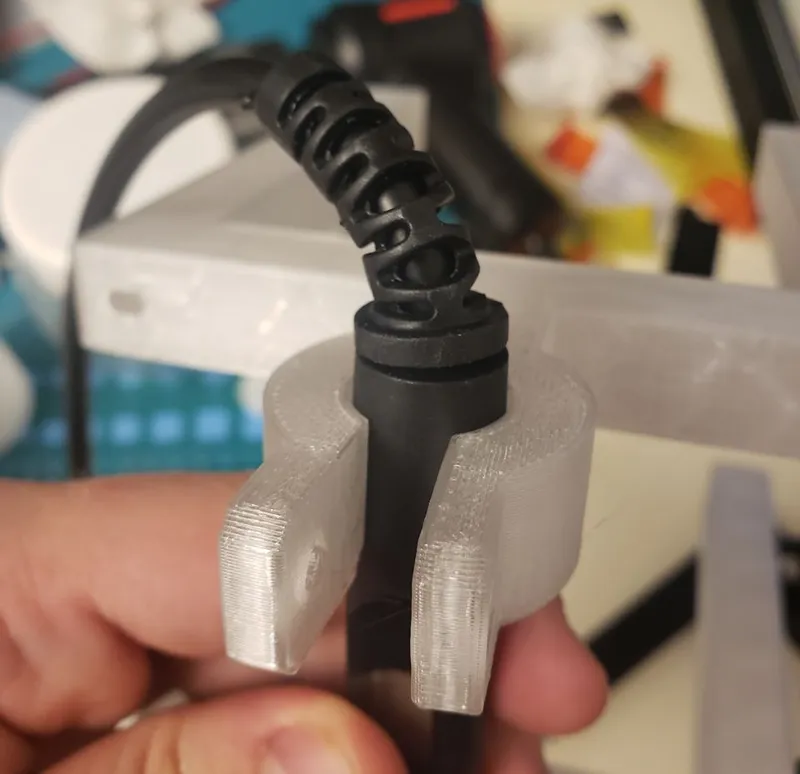

• using a M3 16mm screw and a M3 square nut, secure the soldering iron lower part using the low arm:

• secure the top part of the soldering iron using the high arm (you can use a M3 16mm screw and a M3 square nut if needed). The low arm and the high arm need to be aligned.

• insert the arms into the carriage and use 4 M3 16mm screws to lock it.

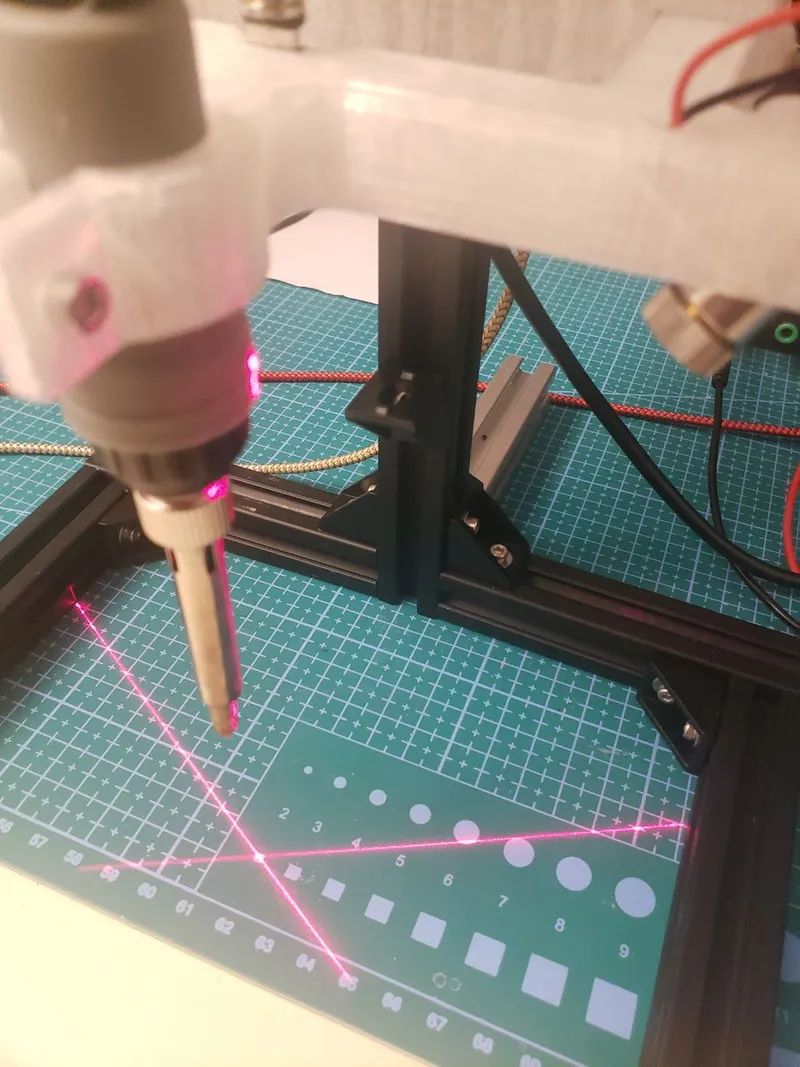

• align and focus the laser beams . The lines should run across the soldering iron and intersect where the tip touches the hole where the theaded insert will be pressed:


Result:

• using the the new tool and an M4 heat insert nut, inserts 14 heat insert nuts into the heat insert tip arm:

Remixed my old model and added:

• lasers for precise positioning
• stopping fitting to set how far the carriage can be push down
• third arm for storing the heat insert tips
