{"data":{"model":{"id":"644077","slug":"yoton-projector-mount","name":"Yoton Projector Mount","authorship":"author","club":false,"excludeCommercialUsage":false,"price":null,"eduProject":null,"ratingAvg":"5.0000000000","myRating":null,"ratingCount":3,"description":"

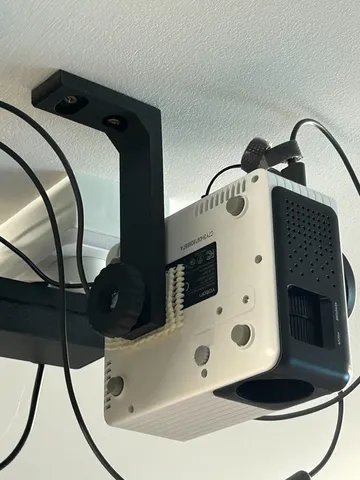

Easy way to mount a Yoton projector from the ceiling pointing down so it can be use for cutting patterns. The 2 screw holes and knob give you some wiggle room to align the projector with your cutting table. I attached mine to the drywall ceiling using drywall anchors.

Additional pieces needed:

1 x 1/4-in x 1-in carriage bolt - This bolt will screw into the projector, the length is important to be able to tighten the knob. (\u00bc inch diameter, 20 threads per inch, 1 inch long)
Friction pad - Use the provided template to cut a out a piece of craft foam, or use something else to provide enough friction to hold the projector in place (felt, fabric, cardstock, \u2026)
2 x #10 washers - 1/2 inch diameter washers to spread out the pressure from the screws
screws and anchors - to attach to your ceiling

Printed on Ender 3 Neo:

0.2mm layer height
3 walls
20% infill
skirt
Overture Cream PLA - white
Arm printed with no supports
Knob printed with tree supports

","category":{"id":"45","path":[{"id":"3","name":"Household","nameEn":"Household","description":"Marvel at these impressive interior and exterior decors. Download print-in-place items, vases of various shapes, or geometrical lamps.","__typename":"CategoryType"},{"id":"45","name":"Other House Equipment","nameEn":"Other House Equipment","description":"Download some thoughtful dwelling equipment - boxes, containers, hooks, shoe racks, key organizers or other plastic parts to make your living smarter.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2023-12-01T22:45:24.984855+00:00","firstPublish":"2023-11-19T15:03:01.229450+00:00","datePublished":"2023-12-01T22:45:24.961574+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"Simple ceiling mount to attach the Yoton projector pointing down so it can be used for cutting sewing patterns.","likesCount":36,"makesCount":3,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":581,"displayCount":3587,"filesCount":4,"privateCollectionsCount":20,"publicCollectionsCount":16,"pdfFilePath":"media/prints/644077/pdfs/644077-yoton-projector-mount-e7f7bbaa-328c-4696-a03c-e0ee514640e0.pdf","commentCount":3,"userGcodeCount":0,"remixCount":0,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"2401491","filePath":"media/prints/644077/images/5085154_0ff7f47a-0e38-4396-8a3b-ca544295a14e_a432f115-abba-4060-97c3-4a599b6f5424/20231111_101813.jpg","rotation":0,"imageHash":"MAgGBYCrgEuep2dXpWeadapADtNZ","imageWidth":1891,"imageHeight":1418,"__typename":"PrintImageType"},"images":[{"id":"2401491","filePath":"media/prints/644077/images/5085154_0ff7f47a-0e38-4396-8a3b-ca544295a14e_a432f115-abba-4060-97c3-4a599b6f5424/20231111_101813.jpg","rotation":0,"imageHash":"MAgGBYCrgEuep2dXpWeadapADtNZ","imageWidth":1891,"imageHeight":1418,"__typename":"PrintImageType"},{"id":"2401499","filePath":"media/prints/644077/images/5085162_03488152-7ec2-4a17-b93b-0063cdbb6c98_2b43a9e1-462a-4a2a-946e-1195a7847e43/20231111_101408.jpg","rotation":0,"imageHash":"LioGDYAIhJd/lXlVqVa5g+agjQ/Z","imageWidth":1429,"imageHeight":1072,"__typename":"PrintImageType"},{"id":"2401502","filePath":"media/prints/644077/images/5085167_45896344-fa15-422f-b0d1-2186a96e26e7_fe870b73-8eb0-4188-93e0-8956cf34646e/20231111_101344.jpg","rotation":0,"imageHash":"7SkGHYJTiJ+blleoeVaHaPh1r0/3","imageWidth":1629,"imageHeight":1226,"__typename":"PrintImageType"}],"imagesCount":3,"tags":[{"name":"projector","id":"2898","__typename":"TagType"},{"name":"projectormount","id":"24660","__typename":"TagType"},{"name":"sewingprojector","id":"173884","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"2713083","filePreviewPath":"media/prints/644077/stls/5084938_6c0065bf-ec50-49fe-884f-f6fcd20699ba_abc2a9e3-2c29-41f6-9460-234ee902b3a8/yoton-projector-mount_v1_arm_preview.png","__typename":"STLType"},"license":{"id":"3","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"__typename":"PrintType","eligibleForNomination":false,"priceBeforeSale":null,"user":{"id":"407279","handle":"SmallSeams_407279","verified":false,"dateVerified":null,"publicUsername":"SmallSeams","avatarFilePath":"media/auth/avatars/b8/b8523283-a58b-4c79-98ea-b92dddf70ac4.jpg","badgesProfileLevel":{"profileLevel":7,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"isHiddenForMe":false,"canBeFollowed":true,"billingAccountType":"personal","lowestTierPrice":null,"highlightedModels":{"models":[{"id":"644077","name":"Yoton Projector Mount","slug":"yoton-projector-mount","ratingAvg":"5.0000000000","likesCount":36,"liked":null,"datePublished":"2023-12-01T22:45:24.961574+00:00","dateFeatured":null,"firstPublish":"2023-11-19T15:03:01.229450+00:00","downloadCount":581,"mmu":false,"category":{"id":"45","path":[{"id":"3","name":"Household","nameEn":"Household","__typename":"CategoryType"},{"id":"45","name":"Other House Equipment","nameEn":"Other House Equipment","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2023-12-01T22:45:24.984855+00:00","image":{"id":"2401491","filePath":"media/prints/644077/images/5085154_0ff7f47a-0e38-4396-8a3b-ca544295a14e_a432f115-abba-4060-97c3-4a599b6f5424/20231111_101813.jpg","rotation":0,"imageHash":"MAgGBYCrgEuep2dXpWeadapADtNZ","imageWidth":1891,"imageHeight":1418,"__typename":"PrintImageType"},"imagesCount":3,"nsfw":false,"aiGenerated":false,"politicalContent":false,"club":false,"price":null,"priceBeforeSale":null,"eligibleForNomination":false,"user":{"id":"407279","handle":"SmallSeams_407279","verified":false,"dateVerified":null,"publicUsername":"SmallSeams","avatarFilePath":"media/auth/avatars/b8/b8523283-a58b-4c79-98ea-b92dddf70ac4.jpg","badgesProfileLevel":{"profileLevel":7,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isHiddenForMe":false},"latestContestResult":null,"__typename":"PrintType"}],"featured":true,"__typename":"HighlightedModelsType"},"designer":false,"stripeAccountActive":null,"membership":null},"contests":[],"contestsResults":[],"prusameterPoints":null,"latestContestResult":null,"referencingArticles":[]}}}
