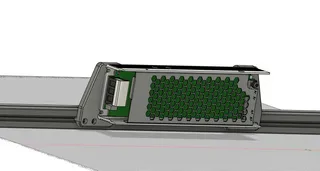

Wide voron panel snap latch with lip using m2 screws

Wide voron panel snap latch with a lip using m2 screws instead of filament


Print it flat side down

The included STLs are for 3mm panels with 1mm foam.


For other sizes:
Fusion file included.
Adjust “PanelDepth” parameter to suit your panel and foam combo.
Subtract 0.5mm (or more) from your panel depth, this will make it compress the foam a little to get a better seal.

BOM (per latch):

• 2x m2x10 SHCS screw
• 2x m2x14mm SHCS screw
• 1x m3x12mm SHCS screw
• 1x m3 2020 t-slot hammer nut or sprint nut

Changelog:

• 20231113: fixes in fusion file, now it's possible to change panel depth to at least 7mm without things breaking.


Wide voron panel snap latch with added lip using m2 screws instead of filament
