Rim Cylinder holder for re-pinning

Had a Yale rim cylinder lying around that had a open bible
4
15
0
92
updated November 9, 2023

Description

PDF

I had a Yale Rim Cylinder lying around that had the top of bible open, allowing for easy re-pinning. This print let's you cover the top of the bible to stop anything from coming out, as well giving the lock and easier shape for a vice to hold.

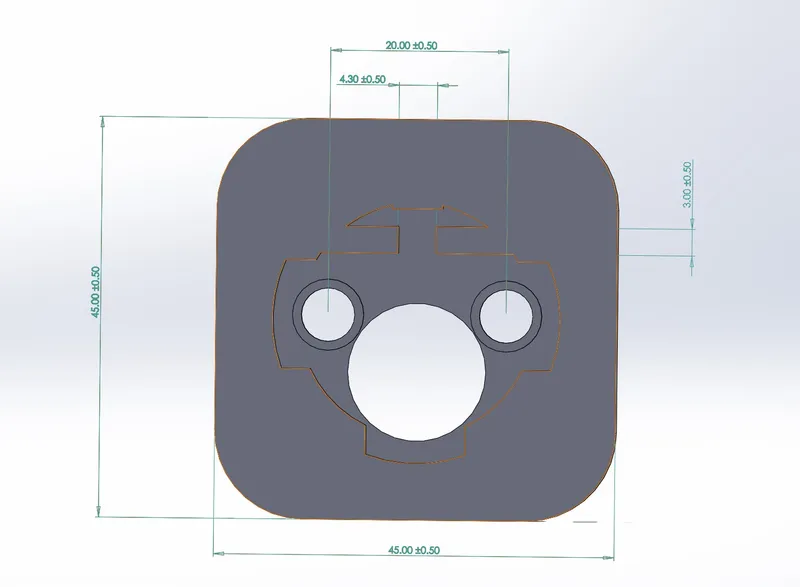

Some quick basic measurements below, to see if it works on your lock.
