La Salle keychain (Multicolor)

vvILa Salle logo keychain

This multicolor keychain is prepared for 1 extruder printers.

Instructions

1: Open the file in your Slicer. (I highly recommend Prusaslicer)

2: Place it upside down

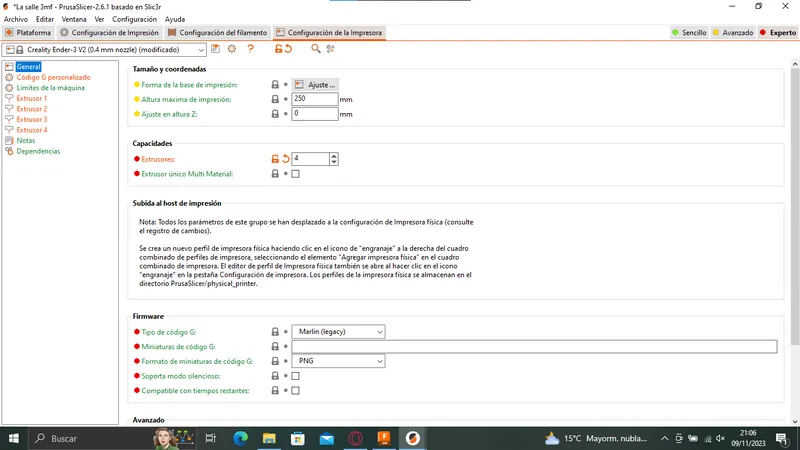

3: Create 3 more extruders in Printer Settings, and assign them a color

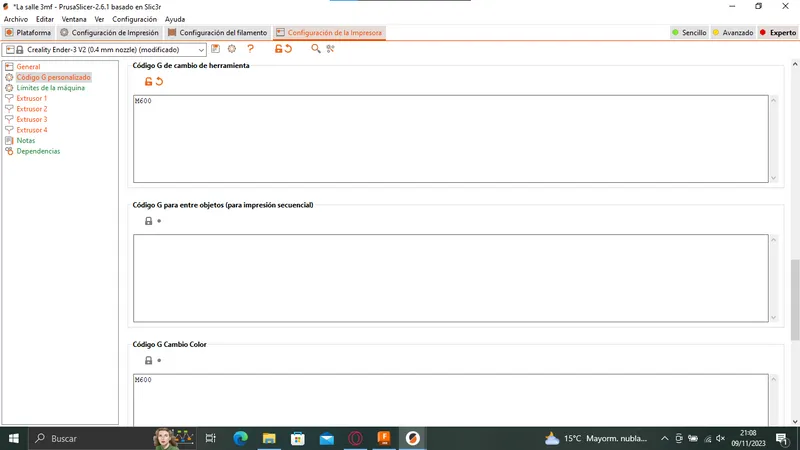

4 (Important): Go to Custom GCode. Copy the code you have in Color Change (It usuallly is M600), and paste it the the Tool Change section.

5: Set the first layer height to 0.3mm, and activate a purge tower (optional).

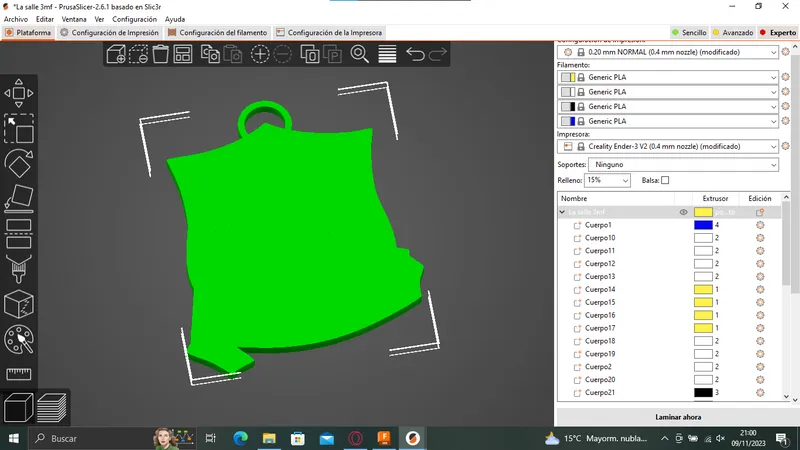

Then select an extuder for each piece of the model. This will determinate the colors.

6: Slice the model. When you have the Gcode, open it and eliminate the first M600 (optional).

And, voilà! The print is ready. I've also posted a GCode for the Ender 3. if you print this, you won't have to do anything. Just press print!

Print settings

First layer: 0.3mm, 15mm/s

Layer height: 0.2mm

Time: 40 min

Filaments: Sunlu Blue, Polyterra White, Wrinkle Black and Triwee Yellow

This explanation was based in a video by XY.3D, in which he explains this.
