This is great and printed beautifully.
Thanks for sharing!

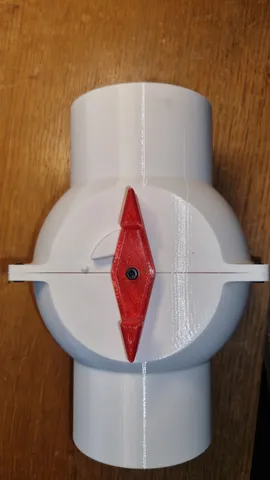

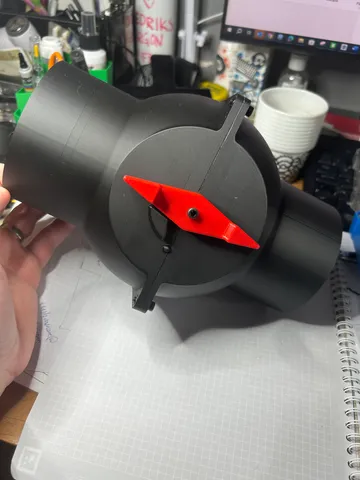

Dust Collector Ball valve 4in
this is a redesign of PeterH1500 Truncated ball valve.
49
264
3
1174
updated November 9, 2023
Makes
Comments
Could you clarify te purple balls orientation? It would be helpful if you could take a screenshot of what the build plate should look like with supports.
@GarrickCheung_335512 sorry for the very long and unfortunate delay. The ball opening should be printed down.

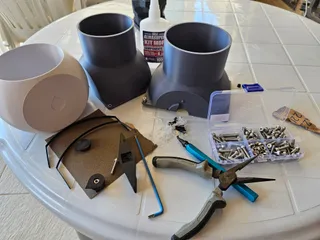

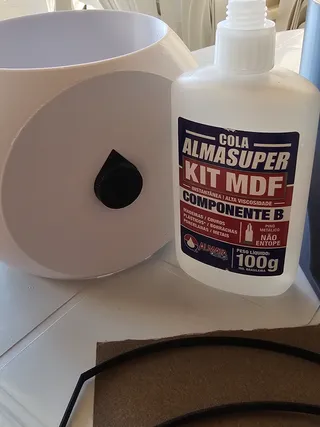

@Adamjelinek_1205877 Np. I appreciate you getting back to me even if it’s a delay. Thank you for clarifying. Now it’s a matter of gluing the bearing. What glue do you recommend? Is superglue fine?
Had a few issues with the ball, when I tried to slice it (Prusa Slicer) I got the error "there is an object with no extrusions on the first layer", I moved it down by 0.1 mm and it sliced OK but the print was a bit rough about 5mm up which took some sanding to fix. Works fine now
@JPGuitars I had this issue as well. I added supports with a threshold at 60 degrees and the error went away, but the supports were so close to the edge of the hole that some of the first few layers were damaged.
Possible to make both pipe sides equal so that I can use PVC on both ends?
@BrockJustice_1126625 nvm that, I figured out how to do it
Hello my friend, for a 2 inch tube?
@OtavioRNeto_1262230 for a 2in tube you will have to import the file into fusion 360 and adjust it in the favorites of the parameter table.
- Does what it sez :)
