Labels for RepRack/20mm Pipe

They fit on 20mm pipes of the RepRack Filament Storage System 20mm Version.

I dont have a multicolor printer, so i did this easy glueable workaround.

The 29 x 90mm Version is for Brother DK-11201 labels used by Brother QL-Label printers.

-----

I printed with these settings:

Plate

• Resolution: 0.2
• Supports: No
• Infill: 20% Cubic
• Rafts: Skirt

Text

• Resolution: 0.12
• Supports: No
• Infill: Don't care

Assembly instructions

You will need:

• Sandpaper (optional)
• Super glue

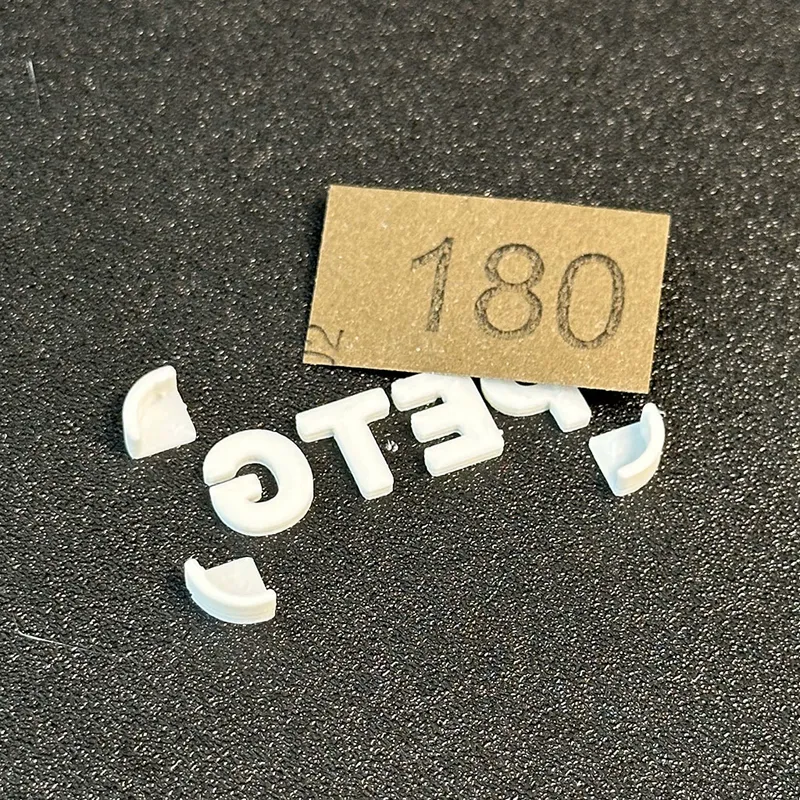

	Step 1 For a smooth surface and better adhesion, the letters can be carefully grinded directly on the PEI plate.

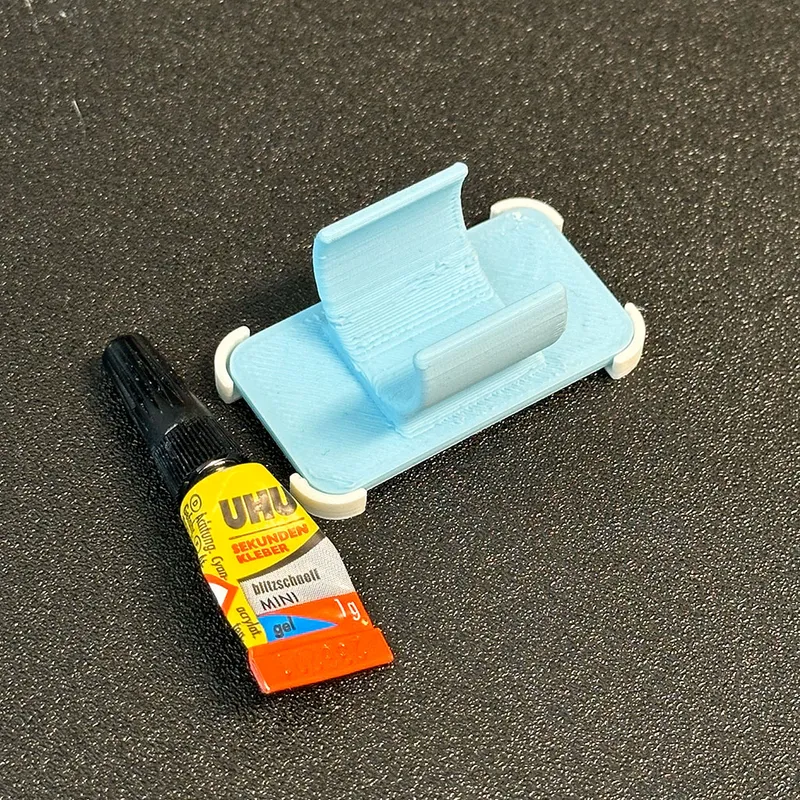

	Step 2 Add some super glue on the letters and put the plate (24x45mm) on. Let it dry.

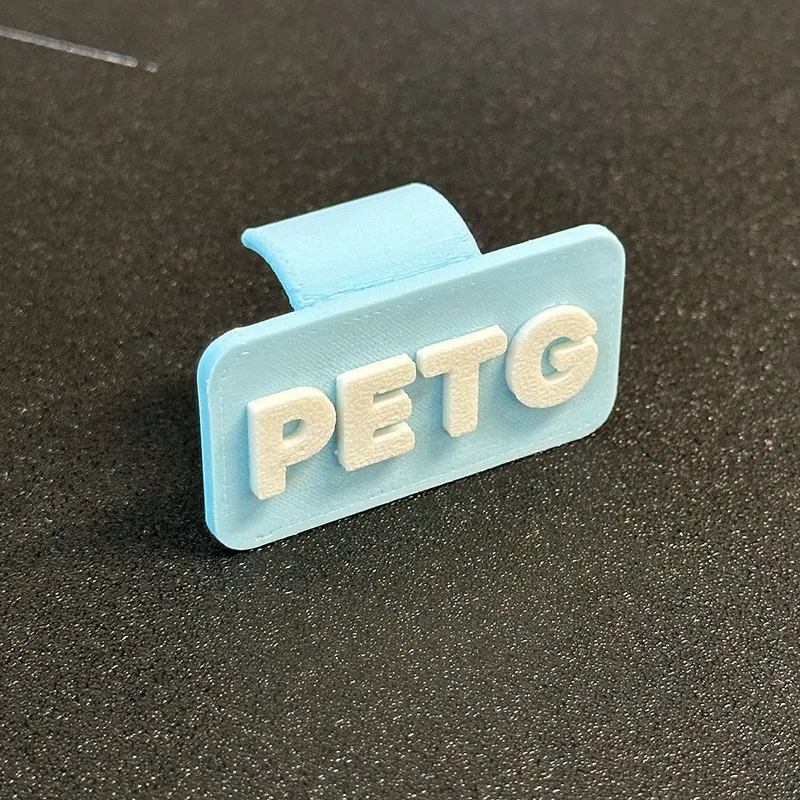

	Step 3 Remove the print from the PEI plate.
