Pedestal Display Stand - Scale It to Suit.

EDIT 28 Nov 2023 - Improved Clip added to hold the pedestal together much tighter.

A DISPLAY COLUMN /  PEDESTAL

It can be scaled down in the slicer. At 50% smaller scale you can fit a top, a base and the six clips onto the baseplate, which makes it the size of the black ones in the cover photo.

This Display Pedestal is designed to be versatile in its height and can be from 230mm (with just the Top and the Base) upto as tall as you want to make it, in increments of 220mm Columns.

You will need 6 clips to attach each item to another.

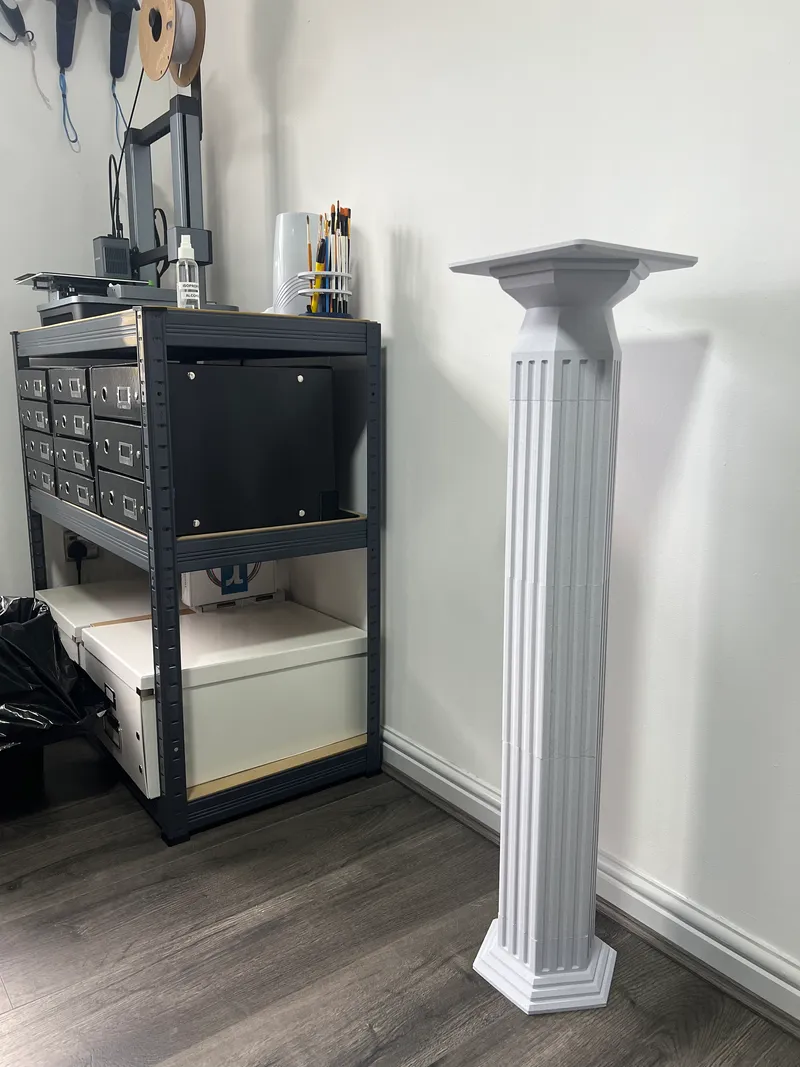

The tallest one in the pictures is 890mm high.

Which is 3 Columns , 1 Display Base, 1 Display Table Top and 24 Clips.

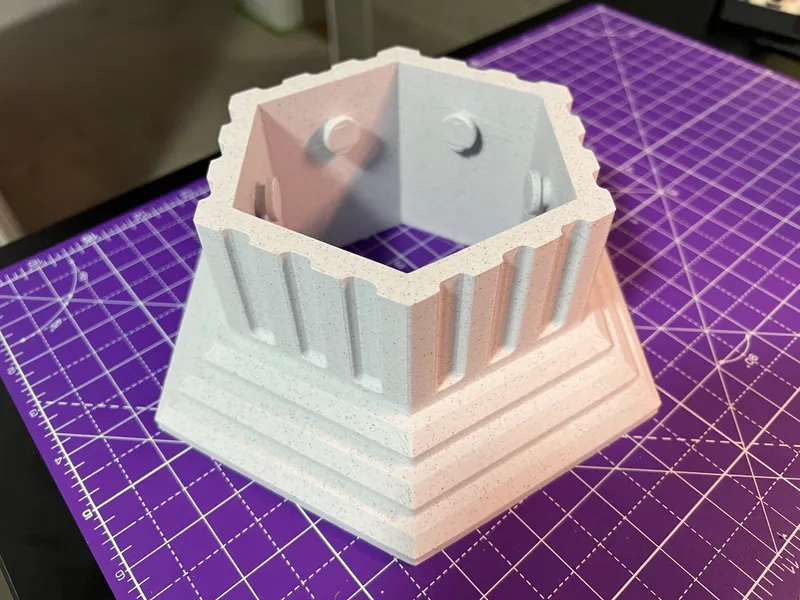

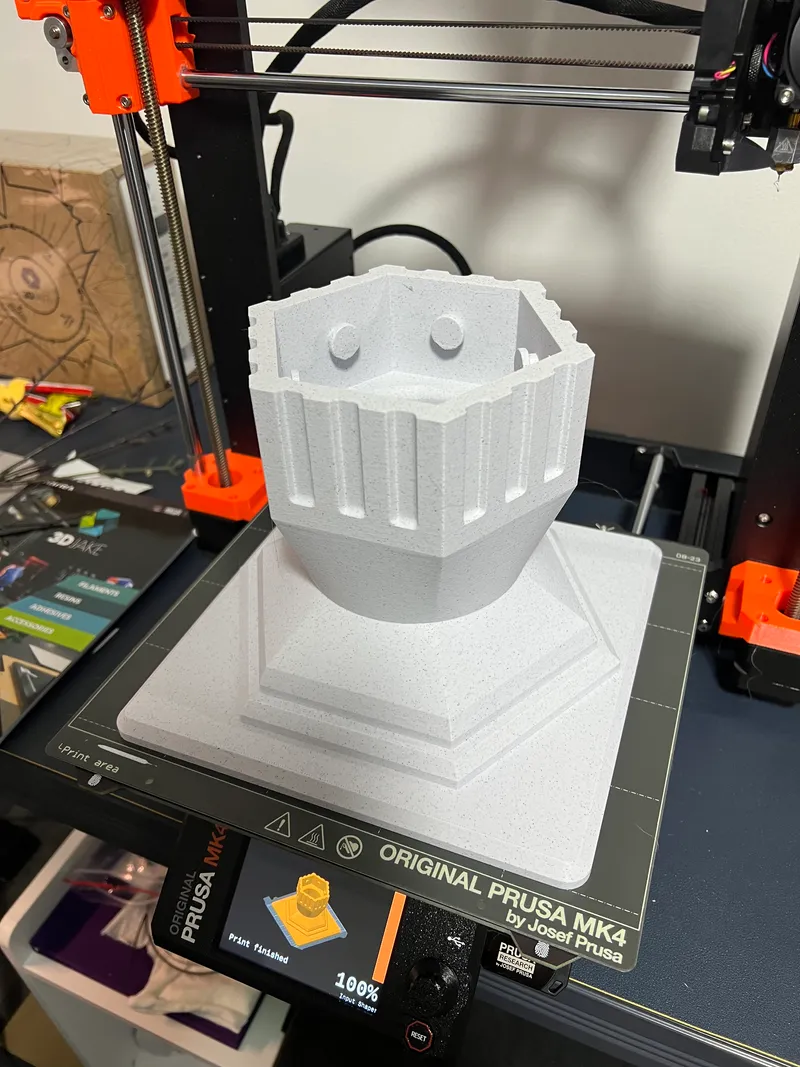

PMM DISPLAY  COLUMN - BASE .

                                                         SIZE  208mm x  80mm High

PMM DISPLAY COLUMN - TOP TABLE

                                                  SIZE  220mm square and 150mm High.

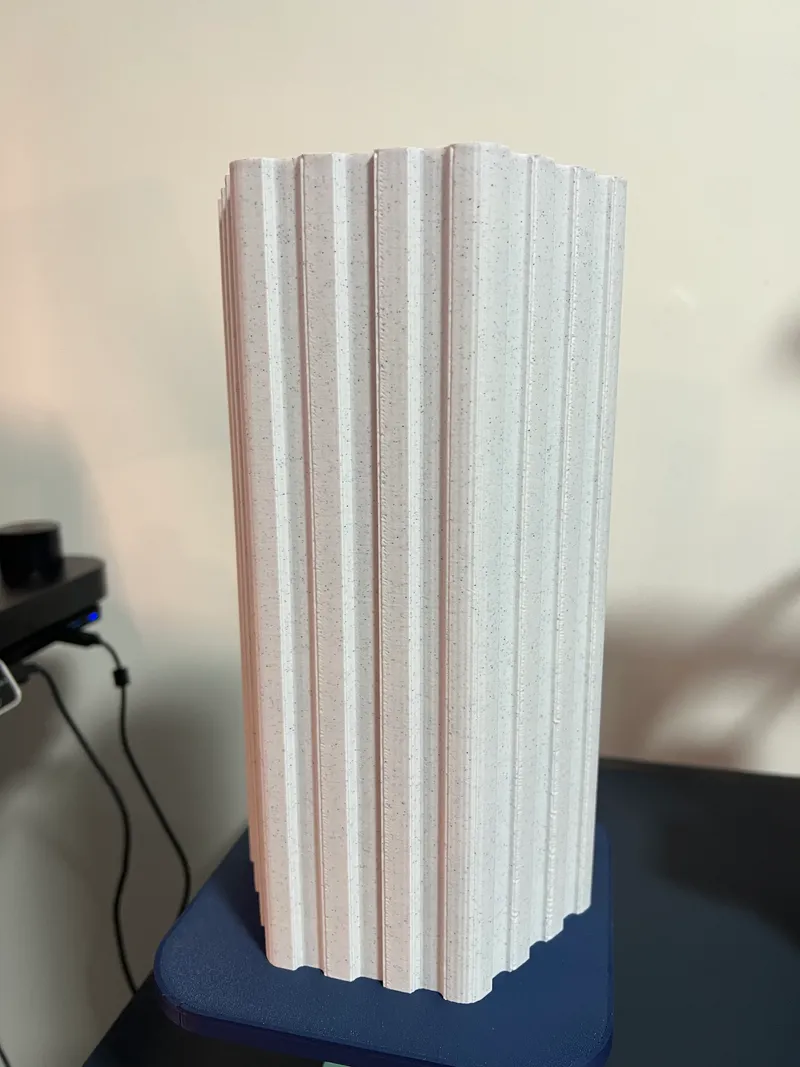

PMM DISPLAY COLUMN - COLUMN

                                                            SIZE  140mm across and 220mm High.

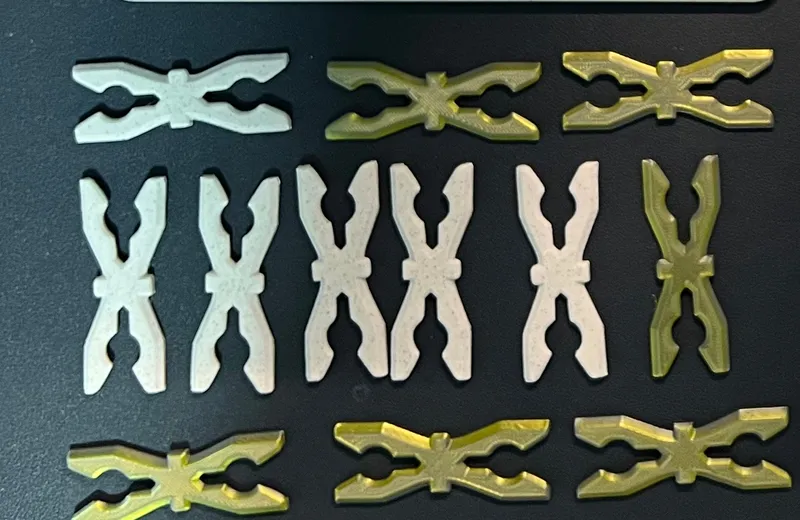

PMM DISPLAY COLUMN - CLIP

you will need 6 clips to attach each item to another.

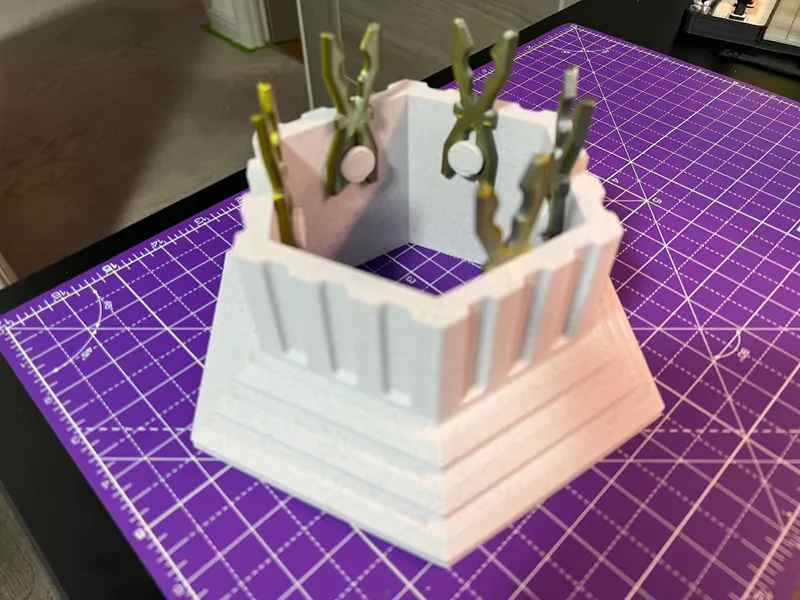

clips just push onto the circles inside the models. Keep them straight and just line up the second item and push down slowly until it clicks in.

Pictures below for comparison

One Base, One Table Top , Three Columns and 24 clips.

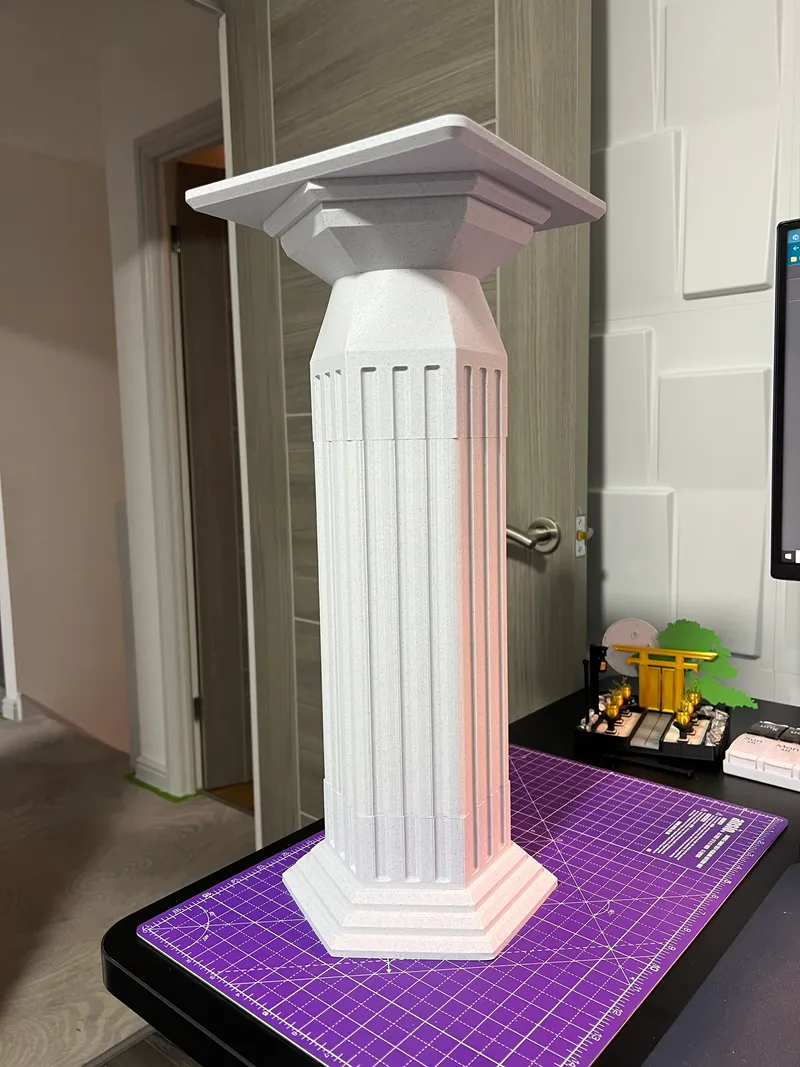

One Base, One Table Top, One Column and 12 Clips

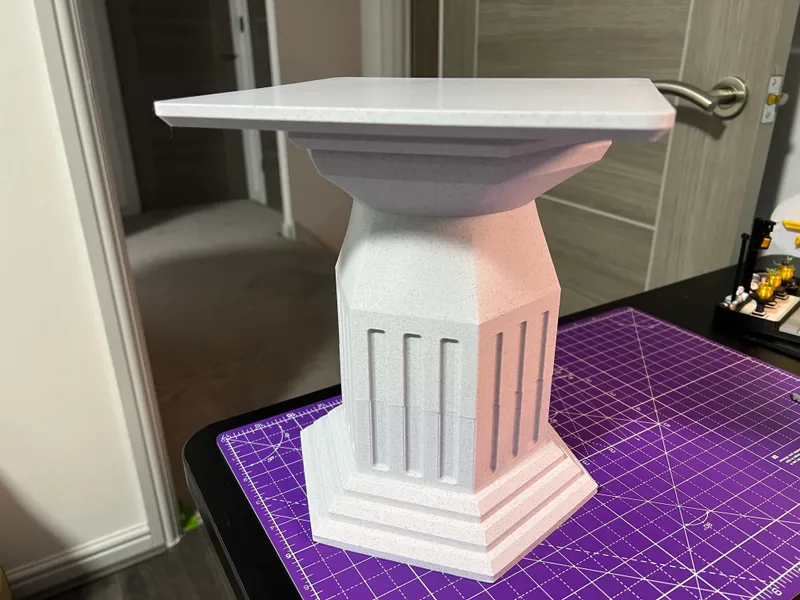

One Base , One Table Top and 6 Clips.
