Oukitel RT3 Motorcycle mount

THIS IS EXPLICITLY NOT FOR COMMERCIAL USE

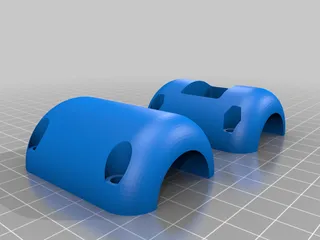

A motorcycle mount for an Oukitel RT3 rugged tablet against a 22mm bar. The design is intended to be modular and allow different mounting points.

The intent is to use the rugged Oukitel RT3 for navigation such as DMD2, Waze, Google Maps, Osmand, or Locus Maps.

For my 2017 VStrom DL 650 I used this mount behind my Givi Airflow screen. I used 2x clamps at the extreme left & right.

V-Strom DL650 XT Motorcycle Accessories Navigation Phone Mount Bracket For Suzuki Vstrom DL 650 2017-2022

I iterated the mount design to allow me to mount the Oukitel RT3 whilst still allowing me to adjust my Airflow screen and also not blocking my view when the Oukitel RT3 was not installed.

• Oukitel RT3
• Drive Mode Dashboard 2 / DMD2
• 2x M4 nut & bolts for each mounting clamp
• 1x M5 nut & bolt for the tablet clamp

keywords: tablet mount oukitel rt3 dmd dmd2 osmand navigation motorcycle vstrom

Print Settings

Printer Brand:

Creality

Printer:

Ender 3

Rafts:

No

Supports:

Yes

Notes:

My settings, YMMV

• PLA/PETG - I've used both
• Infill 40%, gyroid
• 10 top & bottom layers for rigidity against clamping force
