SimHub raceflag for sim racing

This is a SimHub compatible race flag in multiple variants to include/exclude an encoder as well as two mounting options.

For the raceflag the following hardware bill of materials is required:

• 1x Arduino Nano
• 1x 8x8 DC5V WS2812B LED Matrix
• 4x M3x20mm screws to mount the back plate
• 2x M3x8mm screws to hold down the Arduino Nano

You can mix the front and back plates however you like. There are two variants for the Front-Plate

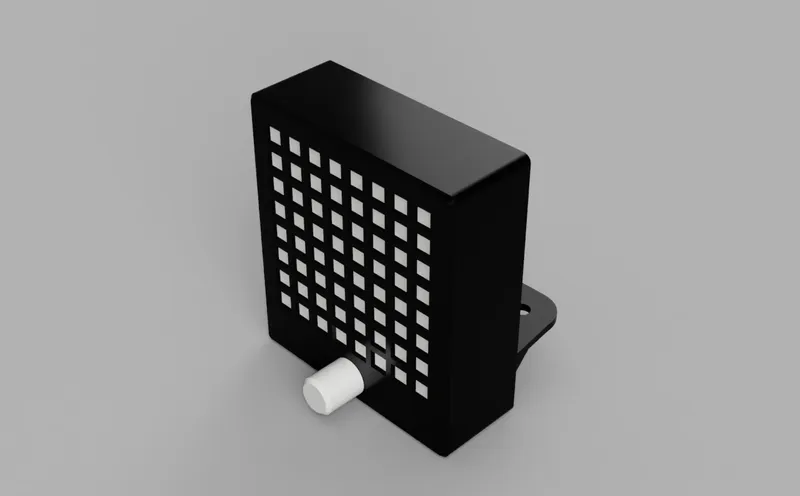

• Frontplate with Encoder

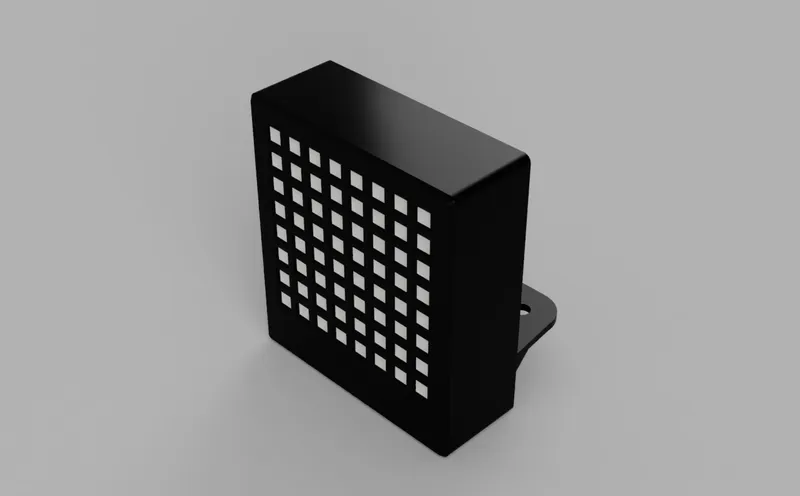

• Frontplate without Encoder

and two variants for the backplate

• Backplate for Extrusion Rig (tested with SimLab p1x)

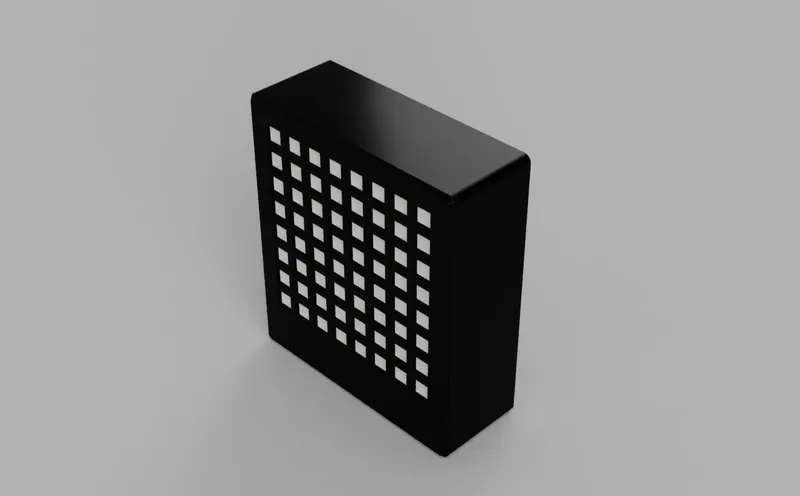

• Backplate to 4 simple screw-holes

Check out the SimHub Wiki on how to set up and wire the WS2812B LED Matrix and the encoder.

In case you like crazy, over-engineered raceflags also consider the retractable raceflag variant of this design.
