Powkiddy RGB30 Case Protector

Synopsis

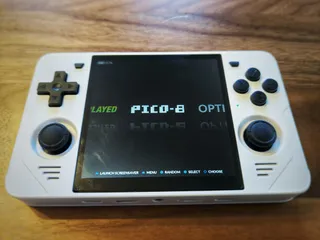

This is a case protector for the Powkiddy RGB30 with an optional pico-8 logo on the back. In combination with a display protector, it should shield your handheld from falls, scratches and other abuse. This case is meant to be flexible and should be printed in TPU or a similar flexible filament. This model is designed to be as close to the size of the RGB30 as possible. However, for a tighter fit, slice the model 1-2% smaller. The correct size depends on your printer and the flexibility of the filament you are using.

I designed this model using SolveSpace. You can download the original model files from this project's GitHub repository. All likes, constructive criticism and comments are greatly appreciated. For more models like this, check out my profile or visit my blog.

Print Settings

Printer Brand:

Creality

Printer:

Ender 3 Pro

Supports:

Yes

Resolution:

0.2mm

Infill:

20%

Filament:

geeetech TPU

green

Notes:

Make sure to use tree supports and grow them from the build plate. The two holes on the back are supplied for build plate tree supports.

Category: Video Games
