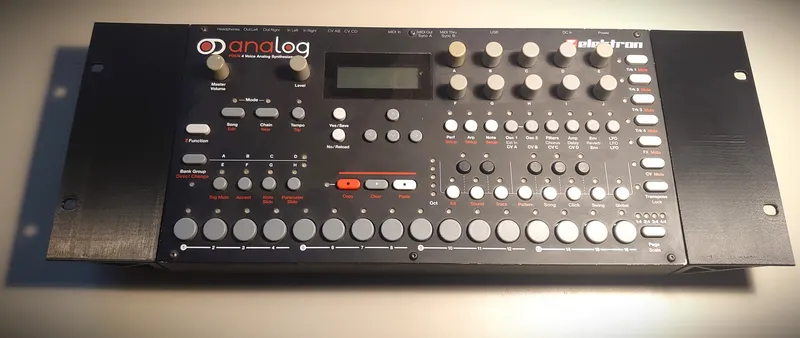

The Elektron Analog 4 MKI 19" Rack Ears are a great way to make your Analog 4 MKI part of bigger static setup.

It is compatible with standard 19"rack with inner width of 458.5 mm, but it can also fit some non-standard 19" racks not respecting minimal inner width (thanks to extra 5 mm gap on each side before supports dives in).

Printing tips

• Print without supports.
• The rack ears should be made out of strong plastic such as Modified PLA, ASA or ABS.
• Print with 15% triangle infill.
• Add infil in area around bolt holes.

Installation

• Attach your Analog 4 MKI with 4 x M3x12 screws and 4 x M3x10 washers
• Mount your syntetizer in a standard 19" rack with 4 x M6 x 20 bolts into M6 cage nuts in your rack.

Versions of this model

New version

• Has only one file that fits both sides of Analog 4 MKI.
• It has lighweighted structure and requires less material.

Old version

• Has two parts, one for each syntetizers side (because of vent hole).
• Very straightforward design with simple mounting plate, top cover and three ribs.

Validation print

During development, some validation prints were made before final release.

Don't have a rack?

Not a big problem, print one for yourself with this superb Modular 19" Rack Case for Musical Gear model.

Support me

"If you dig what I'm creating and want to support the journey, consider fueling my creativity with a virtual coffee! Your support goes a long way in helping me continue pushing the boundaries of 3D printables. Want to Buy Me a Coffee?

Enjoy this Elektron Analog 4 MKI - Rack Ears and let me know, when you make one for yourself!

Designed with Autodesk Fusion 360 Personal
