Bneck Speaker

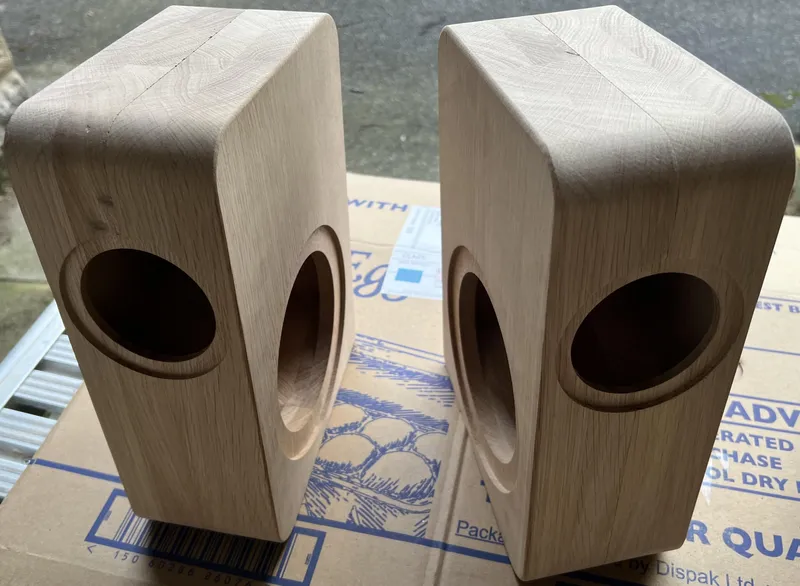

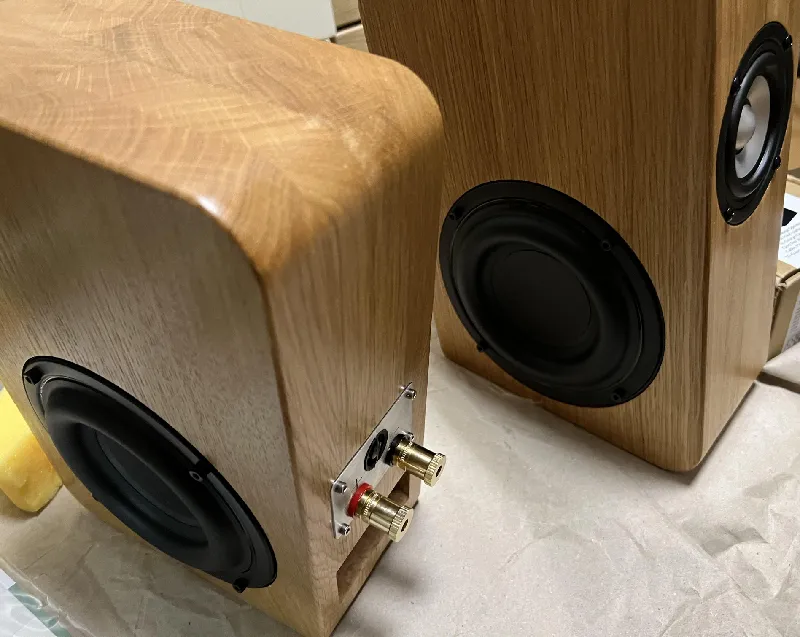

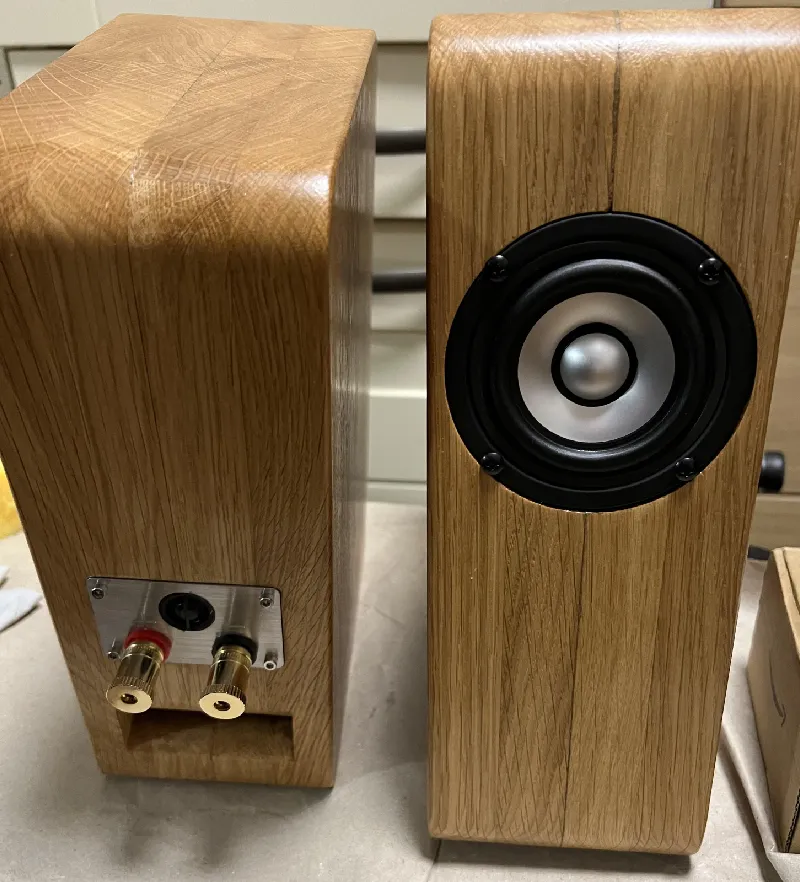

step file for those that may want to Cnc it out of wood, but can also be 3d printed if you have large enough print bed. for 3d printed build i suggest you use dampening material in side.

design is may take on the speaker based of the pictures on diy audio thread

url for the thread is here :- https://www.diyaudio.com/community/threads/boenicke-w5-clone.310367/

I have made changes to the orignal design after speaking to someone with experience using a CNC the walls have been made thicker by 4mm and also have included a .3mf file for those who haye have a large print bed

parts list is as follows

for crossover the parts are

FE85:
Obbligato gold premium 10uF
Panasonic EZP-E 12uF
Mills MRA12 2.2ohm

tweeter :
Obbligato gold premium 2.2uF
Mills MRA12 10ohm
Mundorf foil inductor 0.12uH



no XO for the woofer
