[BaBo] drawer module 90

Create your BaBo organizer! A system created to store them all!

Description:

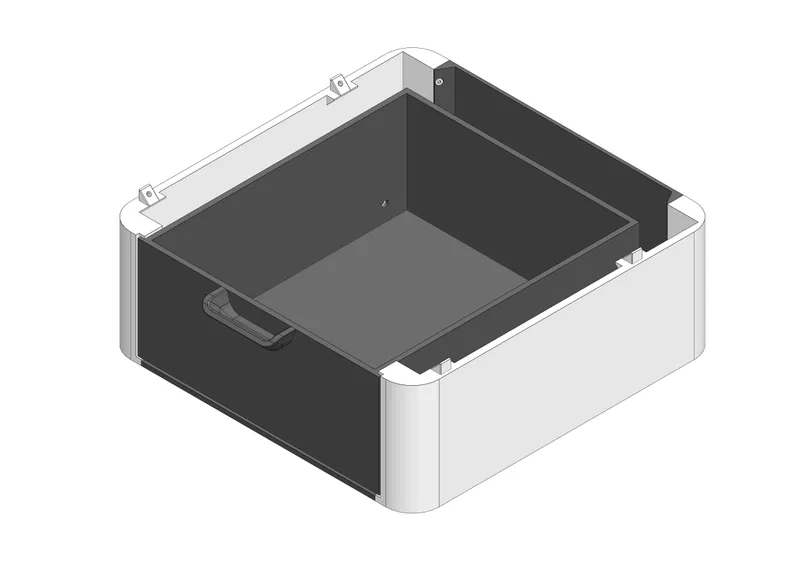

This is the BaBo drawer module 90.

The usable dimensions of the drawer are 240x210x94mm.

The drawer has space for 8x7 inserts.

The inserts have a grid of 30x30mm, this means a 1x2 insert has the dimensions 30x60mm.

BaBo organizer is a stationary, very flexible system to store your tools, spare parts and even printing plates. The design is based on the iconic look of the Bambu Lab X1 printer. The entire system uses only 1 type of screw, M3x8 countersunk screws.

Join my club to expand this system and get access to exclusive modules.

BaBo collection

Update:

(13/09/23)

• Assembly optimizations

(31/10/23)

• improved connection between modules
• easier to push back the drawer
• print profile optimizations

(26/01/24)

•  design optimizations to prevent warping.

Printing:

Layer height: 0.2

Supports: No

Brim: No

Material: all

Assembly:

Follow the instructions in the picture.

• printed parts
• 16 x M3x8 countersunk screws.
