Mini Fatty Long Range Drone 2x 21700 Li-ion battery - HD ready

DISCLAIMER: I DON'T accept responsibility for any damage or injury caused by the creation of this design. SPECIAL ATTENTION to the polarity of Li-ion cell batteries! In case of the opposite polarity of batteries, You will destroy the electronics, batteries or burn out! I know what I say :)

2024/03 V1.2 update

• Design byl upraven pro použití digitálního HD Walknail FPV systému. Nyní je možné létat s digitálním signálem speciálně Walksnail Avatar HD Nano kit V3 s Walksnail Avatar HD Goggles X.
• změna je v držení tyčové VTX antény, držák antény tiskne pomocí TPU
• změna připojení kolíku baterie - nyní použijte drátěnou tyč o průřezu 1,5 mm²
• některé další kosmetické úpravy

Hey FPV drone Pilots!

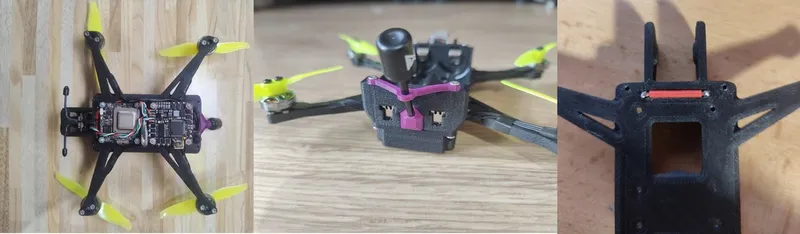

This is the heavy weight redesign of NanoLongRange Evo. It uses a 2S Li-ion battery configuration in serial connection (2pcs of 21700) with 2-4S flight controllers. Flight controller is 25.5mm mount dimensions min 20A continuous current. This Design is compatible with a prop guards from NanoLongRange Evo design. Print parts using PETG material or Fiberlogy Nylon PA12+CF15 recommended by me, it's very firm and lighter material than PETG! VTX antenna strap and antenna-end print using TPU or othe flexi material. Antenna-end part is used against pull out antenna end from the case in crash. The drone is a little heavy but it has a lot of energy and battery capacity. I think he wouldn't be bad for some crazy short flights.

Please take care of the correct batteries polarity !!!

list of components:

2pcs Li-ion batteries - recommended Samsung INR21700-50S 5000mAh or Molicel INR21700-P42A 4200mAh

Do NOT combine a different type of different capacity or different battery charge state

battery pin - use 4pcs from china/aliexpress 18650 battery tray

flight controller - All-In-One = AIO controller that is 2S capable of handling minimum 20A continuous current + In my case I use recycled GEPRC GEP-F722-35A AIO

motors - HGLRC AEOLUS 1202.5 11600KV Brushless Motor or similarly 1202.5 2S motors

propellers - Gemfan Hurricane 3018-2

receiver - what do you love :)

camera - některé nano CAM

VTX - HGLRC Zeus nano VTX, TBS Unify nano32 VTX nebo Walksnail Avatar HD Mini 1S kit - vhodné zvolit V3 kit s napětím VTX do 13V, není třeba používat BEC

VTX antenna - HGLRC mini Hammer - 3mm or 4mm diameter stick

GPS - Beitian BZ-121 or GOKU GM10 Nano V3 GPS

Print Settings

Printer:

whatever

Rafts:

No

Supports:

No

Resolution:

0,2

Infill:

40%

Filament:

whatever Nylon with Carbon/Glass fibres or PETG

whatever
