#8 Screw template with Countersink

This template can be used as a void to install holes to allow mounting your project with #8 wood screws.
13
273
1
897
updated January 19, 2023

Description

PDF

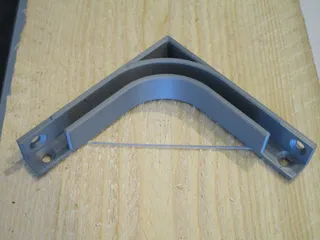

Many of my projects mount to the wall. In North America, that means using #8 wood screws.

After some experimenting, I have found that this stl creates a void that allows the screw to pass through tightly, while having a countersunk area so that finishes flat against the design surface.

It will import as a solid, just flip it to a void to make an empty space.
