3-ring binder tabs with Voronoi patterns, Penrose tiles, and more

Introduction:

This 3D printable binder divider is designed for those seeking a blend of functionality and aesthetic appeal in their organizational tools. The model is easy to print and can be customized to suit individual preferences and needs.

The main body of the tabs is adorned with a variety of intricate designs, including several Voronoi patterns, a Penrose tiling design, and a hexagonal pattern. These patterns add a visually appealing and unique touch to the dividers, and more designs will be added in the future. If you have any requests for new designs, don't hesitate to contact me!

How to use:

• Five tab positions from three models: Each *.3mf file includes three distinct models that, when flipped, create a total of five unique tab positions. Thus tab position 1 becomes tab position 5 when flipped, and tab position 2 becomes tab position 4.
  • Note: While the center tab (Tab 3) remains in the same position when flipped, the orientation of the divider body changes. This means it can be attached either to the top two or the bottom two holes of the binder, depending on which side of the divider is facing upwards.
• Notch for hole alignment: A key feature of this model is the inclusion of a corner-shaped notch that indicates whether to use the top two or bottom two holes of the binder. The position will change when you flip the divider.  The notch should align with the outer corner of the paper.

Printing tips:

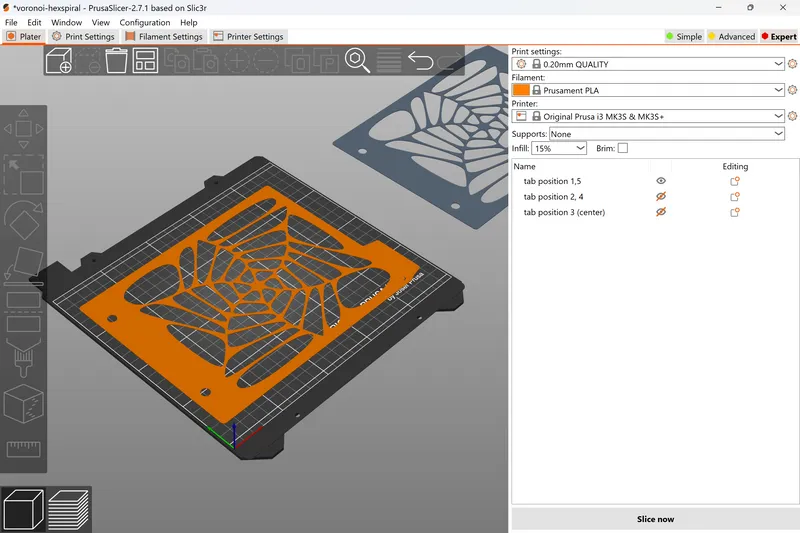

1. Three models: The *.3mf file contain three models – one divider will fit on a MK3 print bed. You can choose the divider by making it the only one visible and clicking the “Arrange” button.

1. Layer height: The model is 0.6 mm thick, allowing flexibility and durability. This corresponds to three layers if your layer height is set to 0.2 mm.
2. Embossed text via PrusaSlicer: Add embossed text to the tab for personalized labeling and categorization. This is achieved through the PrusaSlicer software. Ensure the correct orientation of the model before printing – depending on the tab position desired, the model may need to be flipped so that the intended side is facing up on the print bed.
