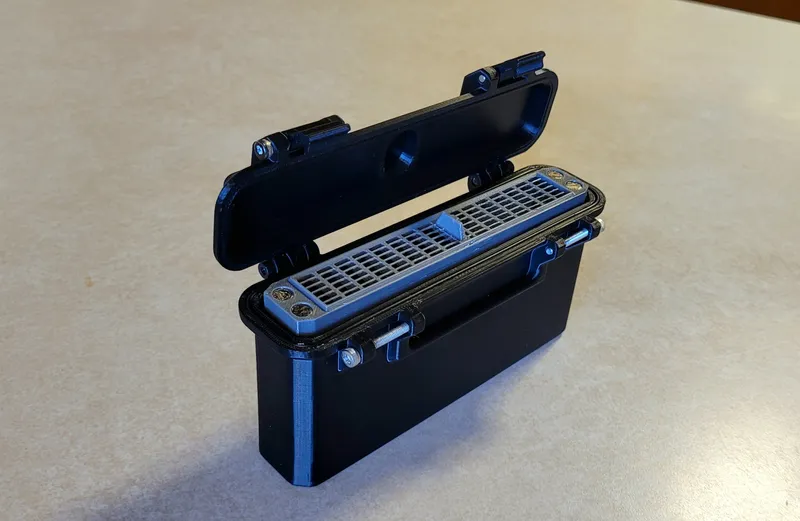

Carbon Vault for Nevermore V6

Keep your Nevermore carbon fresh when not in use. Uses a gasket for an airtight seal.

• Gasket designed with 1.75mm TPU filament (no printing necessary for gasket).
• Printed latches provide a positive snap for confirmed closure.
• Gives good gasket compression for a consistent seal

*Only compatible with the Nevermore V6 cartridge. https://github.com/nevermore3d/Nevermore_Micro

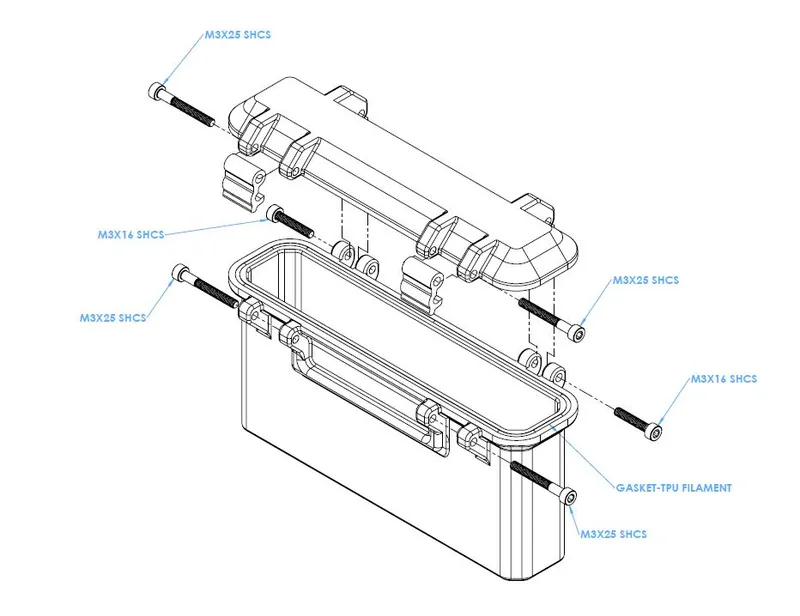

Hardware BOM

• 4pcs. M3X25
• 2pcs. M3X16

Seal installation

When installing TPU filament, don't stretch the filament while pressing into the groove. When cutting to length, leave a little excess and compress the end in the grove to ensure that a gap does not form at the seam.

Suggested print setting (Voron parts setting)- 0.2mm layer, 4 perimeters, 40% infill
