Cooler Cable Management System

A Print-in-Place, Stackable and modular cable management system designed to integrate with the Qube 500.
26
43
2
656
updated October 17, 2023

Description

PDF

Your Portable Cable Oasis

Roll, stack, and stash all those rebellious cables. Attach them to the Qube 500, and voila - your portable cable oasis is ready to roll. Need a cable while on the move? Simply pluck one from the stack, and you're powered up wherever, whenever.

Without a Qube 500? their potential is undiminished. Cleverly designed to clip into each other, these little wizards are naturally stackable and a breeze to transport.

Engineer your space with an innovative approach where your cables don’t just become manageable, but adaptively integrate into your workflow.


"Pebble" & "Rock": Your Cable Companions

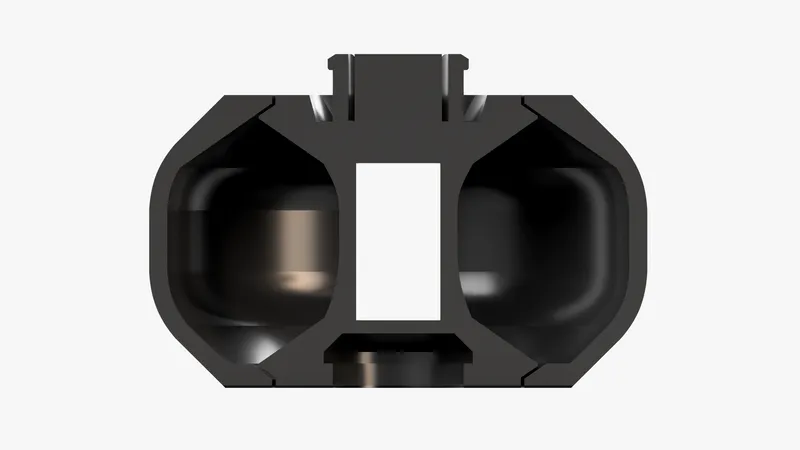

When minimalism and robust functionality collide, you get two cable management maestros: the Pebble and the Rock.



📏 Size Matters: Adapting to Your Cable Dimensions



Pebble - 54mm X 54mm X 36mm: Designed for your lighter, more slender cables – think USB cables, phone chargers, and mini-jack cables.

Rock - 80mm X 80mm X 52mm: A staunch protector for your thicker, robust cables like Ethernet cables and thick USB cables.



🛠 Strength and Support?


Designed to be Printed-in-Place with no supports needed. PETG is recommended with 3 wall perimeters for clip strength.



Post print instructions:

After printing, due to the tight tolerances, your core and shell may fuse together. No worries! Apply alternating downward and upward pressure on the core to separate from the outer shell.


 🔽🔼 Workflow:

Insert a cable end through the Pebble/Rock, ensuring equal lengths on both sides. Hold the shell, use the core to wind up the cable to your desired length. To extend, pull cable ends apart.
