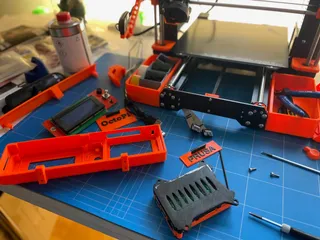

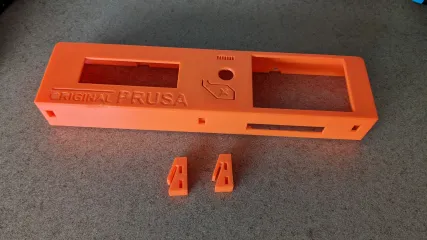

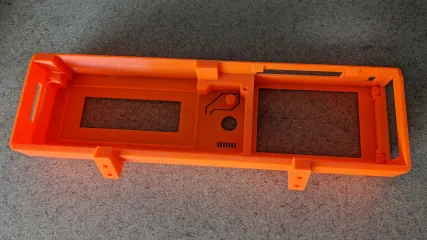

Nice design, printed all the small sections first. About to print the two large ones next.
MK3 RPi + piTFT cover

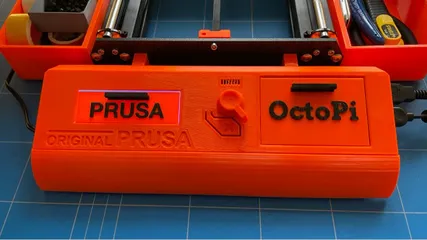

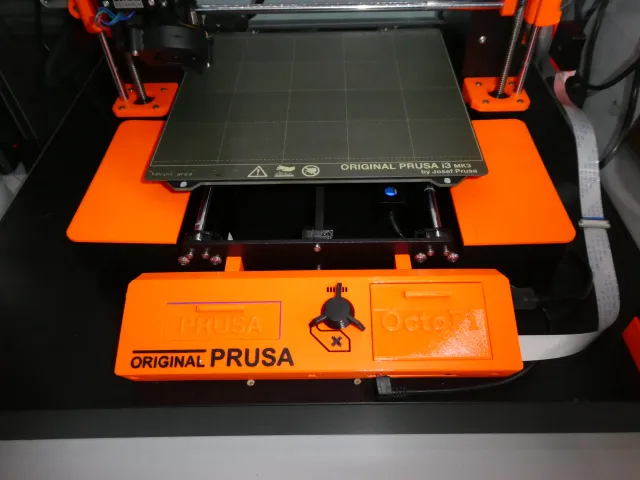

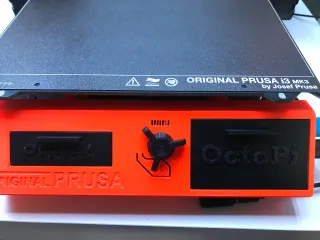

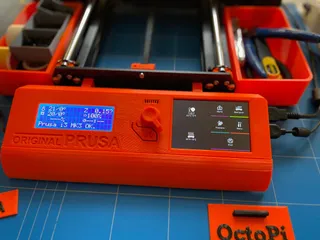

This is an LCD cover for the Prusa MK3 with support for a Raspberry Pi 3b+ with an Adafruit piTFT Plus 3.5" touchscreen.
71
467
9
7120
updated
October 11, 2019
Makes
Comments

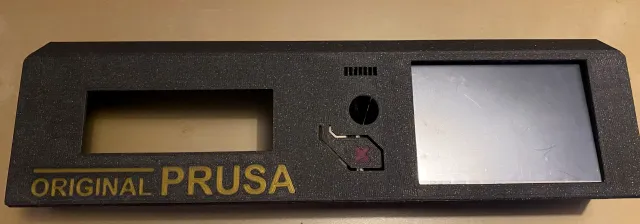

Good design but unfortunately it's doesn't works with no-name screen (my steel sheet was dirty, this is why my first layer is ugly)
Hi, I also plan to install Pi4 in the printer. Can you advise me on connecting the cabling to the printer.
Is there a link to the involvement?
The instructions for the hardware i used (a Pi 3b+) are in the description. You might need to adapt some things for a Pi4 and possibly for a different screen.
Thanks - this is the most fun upgrade I've printed for the MK3 in years. Excellent documentation, perfect print guides and a fun result.

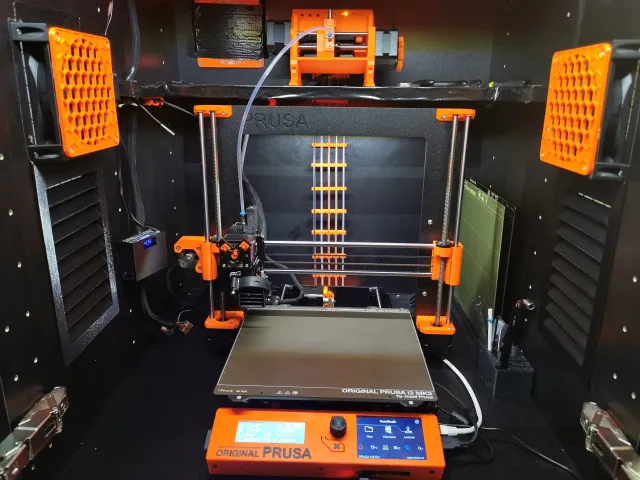

Absolutely love this - having it work with an Adafruit 3.5 touch screen Octodash and a Pi4. Brings a whole layer of sophistication to my printer.
Did you use Prusament to get the matching color? I have some Overture PETG in orange but it doesn't match.
No. I used Extrudr Neon Orange.
I am bringing the files into both prusaslicer and Cura and both of them are saying they are beyond the bed/print size of the Mk3S? Am I bringing this in wrong?
You need to print it at a 35 degree angle to fit. Follow the instructions.
Thanks.....I'll try that I flipped through the instructions so that could certainly be my issue. Also have to figure out how to spin it exactly 35 deg in Cura
