Pastamatic dual motor mod

Hallo,

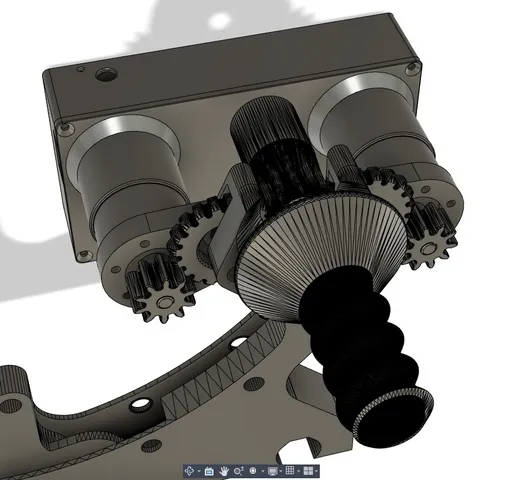

ich bin Rentner und habe viel Zeit. Deine Idee den Pastamatic-Spulenwickler mit zwei Motoren anzutreiben find ich großartig. Fast hätte ich schon die Version mit einem Motor umgesetzt, doch dann habe ich diese Version entdeckt. Weil ich mich aktuell sehr intensiv mit Fusion360, speziell mit Gelenken und Beziehungen beschäftige, kam mir die Idee deine Bauteile konstruktiv neu aufzubauen und die Komponenten virtuell zu animieren. Dabei ist mir etwas aufgefallen. Der Abstand der beiden Bohrungen im Deckel, da wo die beiden Motoren hineingesteckt werden, beträgt nach meinen Messungen 102,25mm. In der Adapterplatte hingegen nur 101,6mm. Ich habe das einheitlich auf 102mm konstruiert und es sieht am Bildschirm gut aus. Ich freue mich schon darauf dein Projekt umzusetzen, bis auf die Motoren habe ich schon alles zusammen.
Mit freundlichen Grüßen
Peter B. (edited)

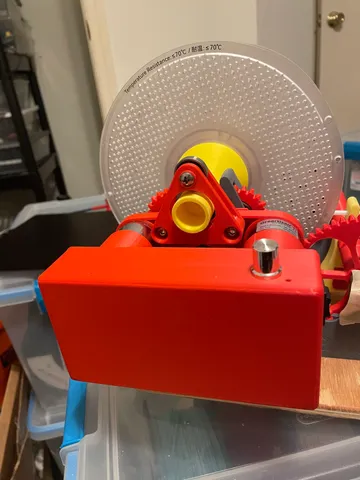

Works great! I built the Pastamatic and had it working with a cordless drill. The single motor option didn't have enough torque to drive it though, as others reported. This dual motor option has not had a problem. The axle retainer is important and just slides on. I hold it on during use with a plastic U-shaped clip hooked on one of the screws. Printed in Bambu PETG-CF (Indigo Blue).

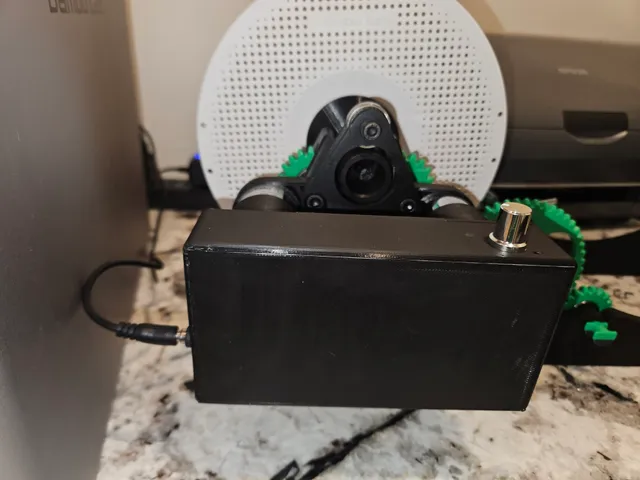

I added a hole (just a negative volume cylinder in PrusaSlicer) to the side for the power connector. I put some heat shrink and CA glue on the outside of the power connector to hold it in place.
Thanks for sharing!

Does the lids.step file include the dual motor lid or just the single motor lid? I wanted to put an extra pair of screws into the box to make it more secure. Ive modded the box itself, but I don't see a dual motor lid step file. Is one available?

need to post the file for the modified bracket

What motors does this use?

For those looking for screw sizes, here's what worked for me:

Controller Board: M2.5x4mm
Motor Mount: M3x8mm
Case: M3x16mm

Suggestion for designer: the bottom hole for PSU wires isn't in a good location with this controller, since the connections are at the bottom of the controller. I suspect that this was designed with a different controller in mind originally. I drilled out a hole on the right side to use instead. Just some thoughts.

Overall, very effective design.

I'm using this add one as well that others have mentioned for drive spindle retention:
 https://www.printables.com/model/621425-pastamatic-axle-holder.

I'm also using on of these clips on the opposite end of the driven spindle for retention as well:
 https://www.printables.com/model/499110-pastamatic-retrofit-for-better-target-spindle-rete/comments for retention.

I posted the same in the MakerWorld version of this item, I hope that's OK.

Since someone asked about parts, here's a list:

Controller x1 https://www.amazon.com/dp/B071H2YQG5?psc=1&ref=ppx_yo2ov_dt_b_product_details

Power Supply with Connector x1 https://www.amazon.com/dp/B09ST95SW5?ref=ppx_yo2ov_dt_b_product_details&th=1

Motor x2 https://www.amazon.com/dp/B08D3SSG55?ref=ppx_yo2ov_dt_b_product_details&th=1

M3 Screws from here https://www.amazon.com/dp/B0CBMMPPKF?psc=1&ref=ppx_yo2ov_dt_b_product_details

M2.5 Screws from here https://www.amazon.com/dp/B0CLM8HY63?ref=ppx_yo2ov_dt_b_product_details&th=1

For the Spindle retention parts, here's what I used also:

608 Bearings https://www.amazon.com/dp/B073ST742Z?psc=1&ref=ppx_yo2ov_dt_b_product_details

M6 Screws https://www.amazon.com/dp/B0CDSDTMK3?ref=ppx_yo2ov_dt_b_product_details&th=1

M5 Screws https://www.amazon.com/dp/B0CDSHNRXK?ref=ppx_yo2ov_dt_b_product_details&th=1

I hope this helps someone out. :) (edited)

so one of the motors is reversed polarity correct?

hey do you happen to have a wire up guide?

What power supply are you using for the speed controller to run both motors?

Works great, everything fits well. Definitely need to make this setup to keep spool arbor engaged.
 https://www.printables.com/model/621425-pastamatic-axle-holder
