Cable housing frame protector

• measured shift cable housing OD: 4.20 mm
• measured brake cable housing OD: 5.00 mm

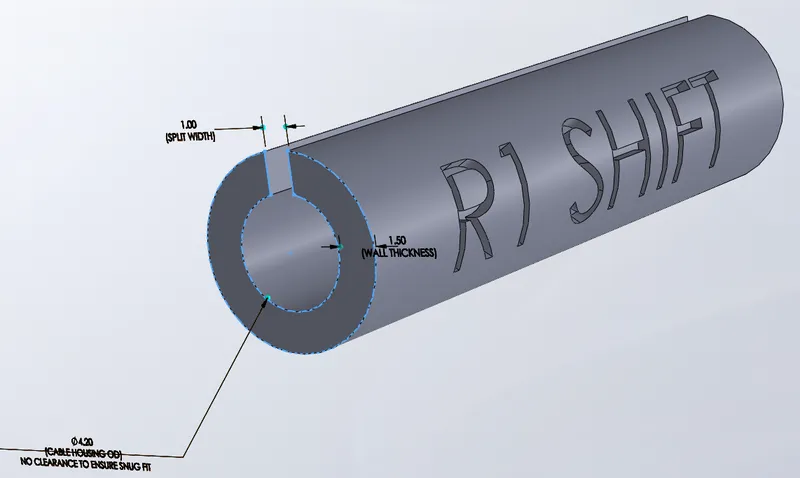

Rev 1

• 0 internal clearance to ensure tight fit
• 30 mm length
• 1 mm split width
• each configuration is labeled with revision & cable housing type

Print parameters

• printing out of TPU
• slicer settings – see the attached 3MF file, here are some of the major changes I had to make to get the print to work
  • needed to reduce all print speeds to 1 mm/s to give layers sufficient time to cool & solidify
  • brim not necessary – TPU is very sticky to the textured sheet (ignore what Prusa Slicer says about not enough adhesion)
  • enable Lift Z with 0.2 mm
  • cooling always on
