Ball Head Plate Replacement

Unfortunately, the original ball head plate was of very poor quality. The thread was directly in the plastic body made of soft plastic, so it was only a matter of time before it would get damaged.

My model includes a nut with a standard 1/4” UNC tripod thread. There isn't practically chance to damage it.

You can choose from two options. The first is with a rubber pad and the second, simpler, without a pad.

Print instructions:

I decided to use PETG. Printing the model does not require any special settings, supports required. See the attached 3MF file for detailed print settings.

Part List:

• Printed part [x1]
• Nut 1/4” UNC [x1]

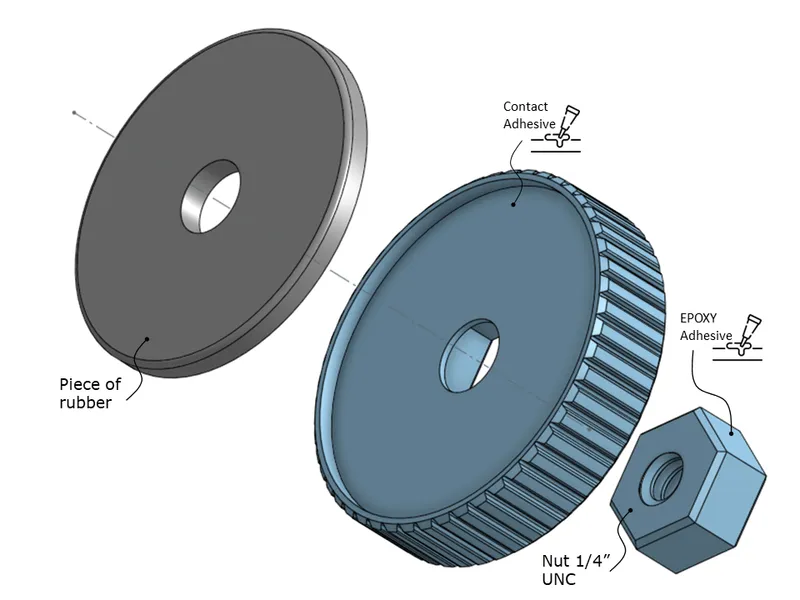

Assembly Instructions:

Custom modification:

If you want to modify the model, I am attaching the STEP file and a link to my OnShape.

You can customize the model by simply changing the parameters.

OnShape Link

Note:

Please don't forget to leave a rating or a comment. I will be glad for any feedback, so I can correct any mistakes in the design. Thank you very much.

Happy printing!
